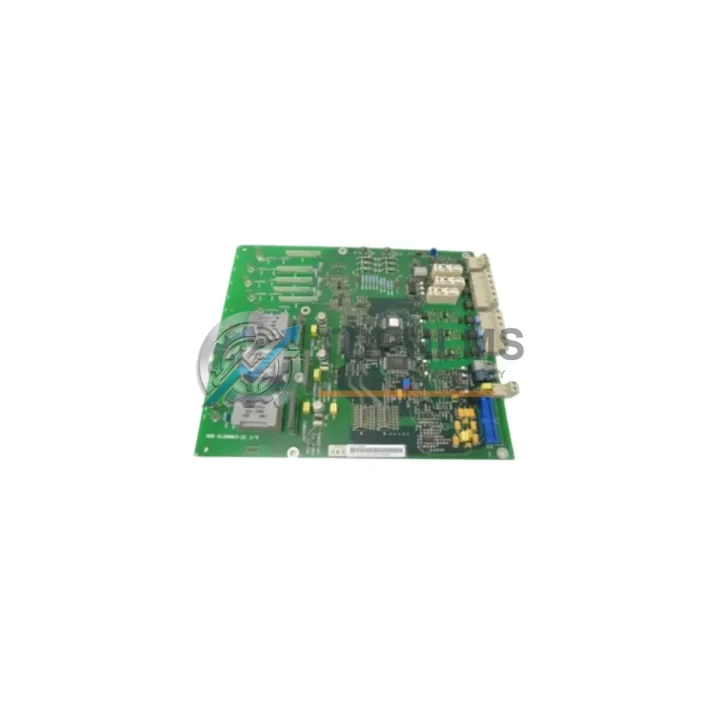

ABB 3ADT220090R0010 NDSC-01-COAT Ruggedized Drive Control Module

Product Overview

ABB 3ADT220090R0010 NDSC-01-COAT Ruggedized Drive Control Module: Industrial Resilience for Harsh Environments

The ABB 3ADT220090R0010 NDSC-01-COAT is a precision-engineered drive control board designed for continuous, fault-tolerant operation in the most demanding industrial environments. As a core component of ABB’s NDSC series drive control architecture, this board governs the pulse-width modulation logic, gate drive signals, and feedback processing within ABB’s ACS and ACS800-series variable frequency drives. Its conformal coating (COAT designation) provides a critical layer of protection against moisture ingress, condensation, corrosive gases, and airborne particulate — making it the preferred replacement and spare part for facilities operating in high-humidity, high-dust, or chemically aggressive atmospheres.

In petrochemical refineries, offshore platforms, and coastal power generation facilities where salt-laden air and hydrocarbon vapors are constant threats, standard uncoated control boards degrade rapidly. The NDSC-01-COAT variant eliminates this vulnerability. Its conformal polymer coating shields the PCB traces, solder joints, and surface-mount components from the electrochemical corrosion that causes premature failure in unprotected boards. This directly translates to longer mean time between failures (MTBF), reduced unplanned downtime, and lower total cost of ownership across the asset lifecycle.

Rugged Specifications Table

Comprehensive Protection Solutions

The ABB 3ADT220090R0010 NDSC-01-COAT does not operate in isolation — it is the intelligence layer within a broader drive and control architecture. In a typical ACS800 drive cabinet, this control board interfaces directly with the AINT-02C auxiliary interface board, which manages the communication bridge between the drive’s power stage and the plant-level control network. Alongside it, the RDCO-02 communication option module enables DDCS fiber-optic connectivity, allowing the drive to integrate seamlessly into ABB’s distributed control system (DCS) or a Profibus DP network managed by a Siemens S7-series PLC or an Allen-Bradley ControlLogix controller.

In high-power motor control centers (MCCs), the NDSC-01-COAT works in conjunction with the AINT-01C gate driver interface board and the APBU-44C branching unit, which distributes DDCS signals across multiple inverter modules in parallel drive configurations. For applications requiring functional safety compliance, the drive system is typically paired with an ABB FSPS-21 safety functions module or an equivalent SIL 2-rated safety relay module, ensuring that emergency stop, safe torque off (STO), and safe speed monitoring functions remain operational even under fault conditions.

On the power supply side, the control board draws its logic voltage from the APOW-01C power supply board, which converts the intermediate DC bus voltage to the regulated 24 VDC and 5 VDC rails required by the control electronics. In installations where power quality is a concern — such as facilities near large welding machines, arc furnaces, or variable loads — an ABB-compatible line filter and du/dt filter are typically installed upstream to suppress voltage spikes and reduce motor insulation stress. The NDSC-01-COAT’s robust design tolerates the residual electrical noise that passes through these filters, maintaining stable PWM output and accurate current feedback processing.

For I/O expansion and field signal conditioning, the drive system integrates with ABB RAIO-01 analog I/O extension modules and RDIO-01 digital I/O modules, enabling precise speed reference inputs, process feedback signals, and fault relay outputs to be routed to the plant’s distributed I/O network. Terminal modules and marshalling panels within the control cabinet provide the physical connection points for field wiring, and the NDSC-01-COAT’s onboard diagnostics continuously monitor these signal paths for open-circuit, short-circuit, and out-of-range conditions.

Application in Critical Infrastructure

In oil and gas upstream operations, the ABB 3ADT220090R0010 NDSC-01-COAT is deployed in variable speed pump drives controlling crude transfer, water injection, and gas compression systems. These environments expose drive electronics to hydrogen sulfide (H₂S), methane, and other corrosive hydrocarbons. The conformal coating on the NDSC-01-COAT prevents electrochemical migration across PCB traces, a failure mode that has caused catastrophic drive shutdowns in unprotected boards. Operators in this sector maintain NDSC-01-COAT boards as critical spares, with a target replacement time of under four hours to meet production continuity requirements.

In underground mining operations, drives controlling conveyor belts, hoists, ventilation fans, and slurry pumps face extreme dust loading, mechanical vibration from blasting and heavy equipment, and wide ambient temperature swings between surface and underground levels. The NDSC-01-COAT’s vibration-tolerant PCB construction and sealed component interfaces maintain signal integrity under these conditions, where a drive fault can halt an entire production level and trigger costly rescue and recovery procedures.

In municipal and industrial water treatment plants, the board governs drives on high-capacity centrifugal pumps, aeration blowers, and sludge dewatering equipment that must operate continuously — often 24 hours a day, 365 days a year. Chlorine and hydrogen sulfide gases present in wastewater treatment environments are particularly aggressive toward uncoated electronics. Facilities that have standardized on the NDSC-01-COAT variant report significantly reduced corrosion-related board failures compared to standard variants.

In steel mills and metallurgical plants, the board is used in drives controlling rolling mill motors, ladle cranes, and cooling water pumps. These facilities generate intense electromagnetic interference from large induction furnaces and resistance welding equipment. The NDSC-01-COAT’s EMC-hardened design, combined with proper cabinet shielding and grounding practices, ensures that the drive control logic remains stable and that motor speed and torque are regulated accurately even in the presence of severe conducted and radiated EMI.

In thermal and hydroelectric power generation, the board controls drives on boiler feed pumps, cooling tower fans, and turbine auxiliary systems. Reliability requirements in power generation are among the highest in any industry, with unplanned outages carrying financial penalties and grid stability implications. The 12-month warranty and pre-shipment functional testing provided by TOPNLMS give plant engineers the confidence to install replacement boards without the extended commissioning and burn-in periods that untested parts require.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers all manufacturing defects, component failures, and functional performance deviations from ABB’s original specifications. If the board fails within the warranty period under normal operating conditions, TOPNLMS will provide a replacement unit or full refund. Claims are initiated by contacting [email protected] with the order number and a description of the fault. Replacement units are dispatched within 3 business days of claim verification.

Q2: How is each unit tested before shipment?
Every ABB 3ADT220090R0010 NDSC-01-COAT board undergoes a multi-stage inspection process prior to dispatch. This includes visual inspection for physical damage, conformal coating integrity verification, power-on functional testing to confirm all onboard logic circuits operate within specification, and communication interface verification. Units that do not pass all test stages are quarantined and not shipped. A test report is available upon request for customers with quality management system requirements.

Q3: Is this board compatible with all ACS800 drive variants, and can it replace both NDSC-01 and NDSC-01-COAT boards?
The 3ADT220090R0010 NDSC-01-COAT is the conformal-coated variant of the standard NDSC-01 control board and is a direct functional replacement for both variants in all compatible ACS800 drive frames. It is backward compatible with existing drive firmware and does not require parameter re-entry or drive re-commissioning in most replacement scenarios. For specific drive frame compatibility confirmation, contact our technical team with your drive nameplate data.

Q4: Can TOPNLMS guarantee long-term supply of this part, and do you support emergency orders?
TOPNLMS maintains a dedicated inventory of ABB NDSC series control boards to support both planned maintenance programs and emergency breakdown situations. For emergency orders, expedited shipping via DHL Express, FedEx International Priority, or TNT is available with same-day dispatch for orders confirmed before 14:00 CST. For customers with planned maintenance schedules, we recommend establishing a blanket purchase order or consignment stock arrangement to ensure parts availability without capital commitment. Contact our team to discuss long-term supply agreements.
