Allen-Bradley 1775-KA Original Industrial Spare PLC-5 Compatible

Product Overview

Allen-Bradley 1775-KA Original Industrial Spare PLC-5 Compatible: System Stability and Industrial Spare Parts Maintenance Value

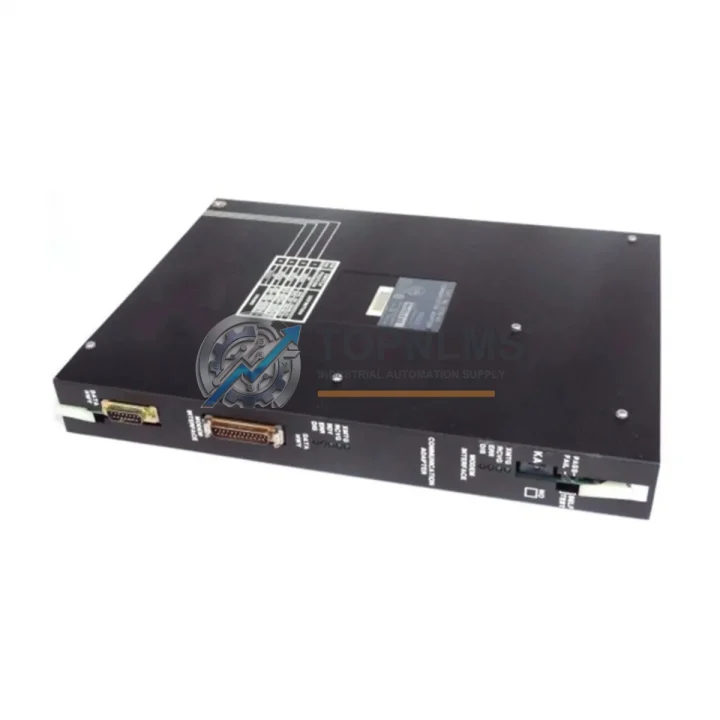

The Allen-Bradley 1775-KA is a DH+ (Data Highway Plus) Remote I/O Communication Adapter designed for the PLC-5 platform — one of Rockwell Automation’s most enduring and widely deployed programmable logic controller families in heavy industry. As manufacturing facilities continue to operate legacy PLC-5 control architectures well into the 2020s, the availability of original, tested spare parts like the 1775-KA has become a critical factor in maintaining system uptime, reducing unplanned downtime, and extending the operational life of existing control infrastructure.

Whether you are managing a scheduled maintenance window, responding to an unplanned fault, or building a strategic spare parts inventory for a facility running PLC-5-based control panels, the 1775-KA represents a high-priority component. Its role as the communication bridge between the PLC-5 processor and remote I/O racks means that a failure of this adapter can isolate entire I/O subsystems, triggering process shutdowns that affect production throughput, safety interlocks, and equipment protection circuits.

At TOPNLMS, every 1775-KA unit is sourced from verified supply channels, inspected upon receipt, and functionally tested prior to shipment. Each unit ships with a 12-month warranty, providing procurement teams and maintenance engineers with the confidence needed to approve purchase orders and maintain compliant spare parts registers.

Critical Technical Specs Table

Preventive Maintenance Strategy

A communication adapter failure rarely occurs in isolation. In PLC-5-based control systems, the 1775-KA sits at the intersection of the processor backplane and the remote I/O network — meaning that any degradation in this module can cascade into I/O scan errors, watchdog faults, and ultimately process trips. A disciplined preventive maintenance strategy should treat the 1775-KA as part of a broader inspection and sparing plan that covers the entire communication and I/O subsystem.

During scheduled outages, maintenance teams should simultaneously inspect the 1771-ASB Remote I/O Adapter modules installed in remote I/O racks, as these are the counterpart devices that receive signals from the 1775-KA over the DH+ network. A degraded 1771-ASB can produce intermittent I/O scan faults that are often misdiagnosed as processor or cable issues. Alongside this, the 1771-P4S Power Supply feeding the remote I/O chassis should be load-tested — an aging power supply with marginal output voltage is a common root cause of communication instability that appears to originate from the adapter module.

The DH+ network cable infrastructure — including 1770-CD Belden DH+ cable, termination resistors, and network tap connectors — should be inspected for insulation damage, loose terminations, and correct impedance matching. A single poorly terminated node on the DH+ trunk can introduce reflections that degrade communication reliability across all connected devices, including the 1775-KA. If the facility uses 1785-KA5 or 1785-KE communication modules for Ethernet or DH+ bridging, these should be included in the same inspection cycle.

For facilities that have integrated the PLC-5 system with SCADA or DCS layers, the 1756-DHRIO ControlLogix DH+/Remote I/O module is often used as a gateway. Ensuring this gateway module is functioning correctly — and that its firmware is current — is essential for maintaining end-to-end communication integrity. Similarly, if the control cabinet houses 1771-OFE Analog Output modules or 1771-IFE Analog Input modules, these should be verified for calibration drift during the same maintenance window, as analog I/O degradation is frequently masked by communication-layer faults.

Relay output modules such as the 1771-OW16 Relay Output Module and associated terminal blocks and wiring duct should be inspected for contact wear and loose terminations. In high-cycle applications, relay contacts can degrade faster than the communication infrastructure, and a failed output relay can trigger fault conditions that are incorrectly attributed to the communication adapter. Fuse modules and circuit protection devices within the control cabinet should also be checked and replaced on a scheduled basis rather than reactively.

Maintaining a minimum of one spare 1775-KA unit on-site — alongside spares for the 1771-ASB, the backplane power supply, and key I/O modules — is the most effective way to reduce mean time to repair (MTTR) when a communication fault occurs during production. TOPNLMS can supply these components individually or as part of a coordinated spare parts package tailored to your specific PLC-5 configuration.

Strategic Replacement Solutions

The Allen-Bradley PLC-5 platform has been in service at industrial facilities worldwide for over three decades. While Rockwell Automation has transitioned its primary development focus to the ControlLogix and CompactLogix families, the installed base of PLC-5 systems remains substantial — particularly in process industries, utilities, automotive manufacturing, and material handling applications where the cost and risk of a full control system migration outweigh the benefits of upgrading to a newer platform.

For these facilities, the strategic priority is not replacement of the PLC-5 system itself, but rather the reliable sourcing of original spare parts that maintain the system’s operational integrity without requiring software re-engineering, I/O rewiring, or revalidation of control logic. The 1775-KA fulfills this role precisely: it is a direct, form-fit-function replacement for a failed or degraded communication adapter, requiring no configuration changes to the PLC-5 processor program or the remote I/O rack addressing.

When a 1775-KA fails in service, the replacement procedure is straightforward for trained maintenance personnel: power down the chassis, remove the faulty module, insert the replacement unit, restore power, and verify communication status via the processor’s I/O status indicators and the programming terminal. Downtime for this procedure is typically measured in minutes rather than hours — provided the replacement unit is available on-site or can be sourced and delivered rapidly.

TOPNLMS maintains stock of the 1775-KA and related PLC-5 communication components to support just-in-time procurement for maintenance teams operating under tight shutdown windows. All units are tested prior to shipment, and express delivery options are available for critical breakdown situations. For facilities managing multiple PLC-5 systems across a site or across multiple locations, bulk procurement of spare communication adapters at a negotiated price point is a cost-effective strategy that significantly reduces exposure to extended downtime events.

Support FAQ

Q1: Is the 1775-KA still available as a new original part, or only as refurbished?
The 1775-KA has been discontinued by Rockwell Automation as a new production item. Units available through the aftermarket supply chain — including those offered by TOPNLMS — are sourced from verified industrial surplus, decommissioned systems, or authorized refurbishment channels. Each unit is inspected and functionally tested to confirm it meets original performance specifications before shipment. The 12-month warranty covers functional performance under normal operating conditions.

Q2: How do I verify compatibility between the 1775-KA and my existing PLC-5 processor?
The 1775-KA is compatible with the Allen-Bradley PLC-5 processor family, including the PLC-5/10, PLC-5/12, PLC-5/15, PLC-5/25, PLC-5/30, PLC-5/40, PLC-5/60, and PLC-5/80 variants. Compatibility is determined by the chassis slot assignment and the DH+ network configuration in your processor program. If you require assistance confirming compatibility for your specific processor model and firmware revision, TOPNLMS technical support can assist prior to purchase.

Q3: What testing is performed before shipment, and what does the 12-month warranty cover?
Every 1775-KA unit undergoes functional testing on a PLC-5 compatible test bench prior to shipment. Testing verifies backplane communication, DH+ network initialization, and remote I/O scan capability. The 12-month warranty covers defects in materials and workmanship under normal industrial operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed through TOPNLMS directly.

Q4: What is the recommended spare parts inventory strategy for a facility running multiple PLC-5 systems?
For facilities with two or more PLC-5 systems, the recommended minimum spare parts holding includes one 1775-KA communication adapter per system, plus one additional unit as a site-level float spare. This should be complemented by spares for the 1771-ASB remote I/O adapter, the chassis power supply, and the most frequently replaced I/O modules in your application. TOPNLMS can assist with spare parts planning and provide consolidated procurement to reduce per-unit costs and shipping overhead.
