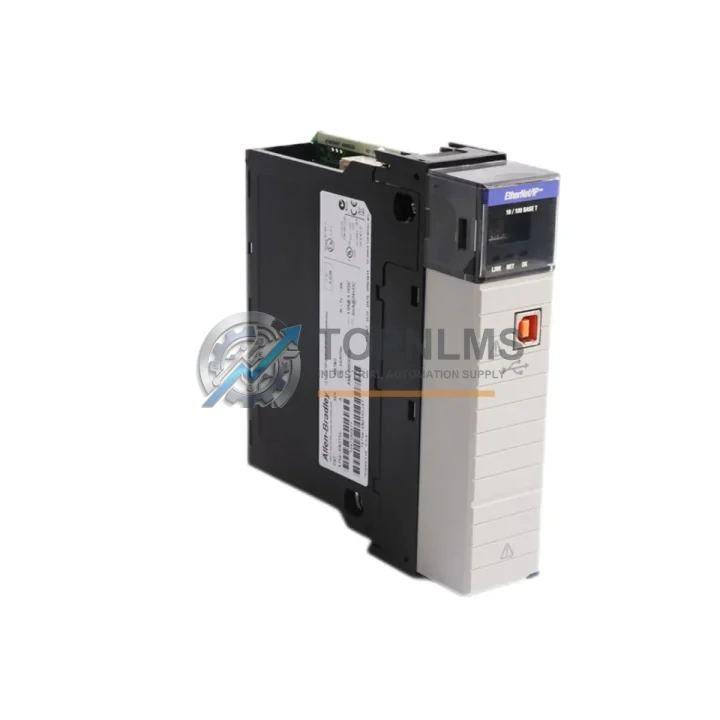

Allen-Bradley 1756-EN2TSC Replacement for ControlLogix 1756

Product Overview

Allen-Bradley 1756-EN2TSC Replacement for ControlLogix 1756: Seamless Migration & Upgrade Solution

The Allen-Bradley 1756-EN2TSC is a dual-port EtherNet/IP communication bridge module designed for the ControlLogix 1756 platform, providing secure VPN-capable connectivity between plant-floor controllers and enterprise networks. As legacy ControlLogix installations age and original 1756-EN2TSC units reach end-of-life or become increasingly difficult to source, facilities engineers and procurement teams face mounting pressure to maintain network uptime without triggering a full system overhaul. This replacement and upgrade solution is engineered to address exactly that challenge — delivering a drop-in compatible module that preserves your existing wiring infrastructure, rack geometry, communication topology, and PLC program logic while restoring full EtherNet/IP bridge functionality.

Whether you are replacing a failed unit on a running ControlLogix chassis, consolidating spare-parts inventory across multiple production lines, or executing a planned migration away from discontinued firmware revisions, the 1756-EN2TSC replacement module ships pre-tested, fully documented, and backed by a 12-month warranty from TOPNLMS.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 1756-EN2TSC migration rarely involves a single module swap. In practice, field engineers replacing this communication bridge often discover that adjacent components in the same chassis or control cabinet require simultaneous attention. The 1756-EN2TSC sits at the network boundary of the ControlLogix system, meaning its replacement intersects with the health of the entire communication stack.

During rack-level audits preceding a 1756-EN2TSC swap, it is common to identify aging 1756-L71 or 1756-L73 ControlLogix controllers whose firmware must be updated to maintain CIP routing compatibility with the new bridge module. In chassis configurations where the original 1756-PA72 or 1756-PB72 power supply has accumulated significant operating hours, procurement teams frequently bundle the power supply replacement with the communication module order to avoid a second maintenance window. Similarly, 1756-IB16 and 1756-OB16E digital I/O modules sharing the same backplane should be inspected for firmware revision alignment before the new EN2TSC bridge is commissioned.

On the network side, facilities that previously relied on the VPN bridge capability of the 1756-EN2TSC to segment plant-floor traffic from the enterprise LAN may also need to evaluate their 1756-ENBT or 1756-EN2T modules installed in secondary chassis, ensuring consistent EtherNet/IP routing tables across all ControlLogix nodes. Where the control architecture includes remote I/O drops connected via 1734-AENT POINT I/O EtherNet/IP adapters, verifying that the adapter firmware supports the CIP routing configuration of the replacement bridge is a mandatory pre-commissioning step.

For installations that use 1756-DNB DeviceNet bridge modules or 1756-DHRIO Data Highway Plus/Remote I/O bridge modules in the same chassis, the 1756-EN2TSC replacement does not affect those communication paths — they operate on independent backplane slots and retain their existing configurations. However, if the migration is part of a broader modernization effort that includes retiring legacy SLC 500 or PLC-5 controllers connected via DH+ or RIO, the 1756-DHRIO module may itself be a candidate for replacement or reconfiguration during the same maintenance window.

Programming cable access is another practical consideration. Technicians performing on-site commissioning of the replacement 1756-EN2TSC typically connect directly via Ethernet using RSLinx Classic or FactoryTalk Linx, or use a 1784-U2DHP USB-to-DH+ interface for legacy DH+ segments. Ensuring that the engineering workstation has the correct RSLinx driver configured for the new module IP address before the physical swap minimizes commissioning time and reduces the risk of extended downtime.

Retrofit Guidance FAQ

Q: Will I need to modify my existing wiring when replacing the 1756-EN2TSC?
No. The replacement module uses the same dual RJ-45 port layout as the original. Your existing Cat5e or Cat6 Ethernet patch cables connect directly without any field rewiring. The backplane connector is mechanically identical to all 1756-series modules.

Q: Do I need to update my Studio 5000 program after installing the replacement module?
In most cases, no program changes are required. The replacement module retains the same EtherNet/IP device profile as the original 1756-EN2TSC. You will need to re-enter the IP address configuration using BOOTP, DHCP, or RSLinx Classic, but the controller program, I/O tree, and produced/consumed tag configurations remain intact.

Q: Is the replacement module compatible with older ControlLogix chassis such as the 1756-A7 or 1756-A10?
Yes. The 1756-EN2TSC replacement is compatible with all standard 1756-series chassis, including the 1756-A4, 1756-A7, 1756-A10, 1756-A13, and 1756-A17. No chassis modification or adapter bracket is required.

Q: Can I perform a hot-swap replacement without shutting down the controller?
The 1756-EN2TSC supports removal and insertion under power (RIUP) when the controller is placed in Program mode. However, TOPNLMS recommends coordinating the swap during a scheduled maintenance window to avoid unintended disruption to active EtherNet/IP connections and VPN tunnels.

Q: What communication protocols does the replacement module support?
The replacement module supports EtherNet/IP (CIP), standard TCP/IP, and the VPN bridge functionality of the original 1756-EN2TSC. It is compatible with RSLinx Classic, FactoryTalk Linx, and Studio 5000 Logix Designer for configuration and diagnostics.

Q: How do I verify compatibility with my existing ControlLogix firmware revision?
The replacement module is compatible with Studio 5000 Logix Designer v20 and above. If your controller is running an earlier firmware revision, TOPNLMS recommends upgrading the controller firmware to a current supported revision as part of the migration plan. Contact our technical team at [email protected] for revision-specific compatibility confirmation.

Q: What if my original 1756-EN2TSC has a custom VPN configuration?
VPN tunnel configurations are stored in the module, not in the controller program. You will need to reconfigure the VPN settings on the replacement module using the web-based configuration interface or RSLinx Classic. TOPNLMS recommends exporting and documenting the original VPN configuration before removing the failed module.

Warranty Assurance

Every 1756-EN2TSC replacement module shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes a multi-point functional test that verifies backplane communication, dual-port Ethernet link negotiation, CIP routing, and power consumption within specification. Units that do not pass all test criteria are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response target is one business day for initial acknowledgment and three business days for resolution or replacement dispatch. Warranty coverage applies to manufacturing defects and functional failures under normal operating conditions; it does not cover physical damage caused by incorrect installation, overvoltage, or environmental contamination beyond the module’s rated IP20 protection class.

For procurement teams managing multi-site spare-parts programs, TOPNLMS offers volume pricing and consignment stock arrangements for the 1756-EN2TSC and related ControlLogix modules. Contact our sales team to discuss blanket order terms, lead times, and export documentation requirements for cross-border shipments.

Stock is maintained in Xiamen, China, with standard international shipping via DHL Express, FedEx International Priority, or UPS Worldwide Expedited. Typical transit time to North America and Europe is 3–5 business days from order confirmation. All shipments include a commercial invoice, packing list, and certificate of conformance.
