Allen-Bradley 1747-M13 Original Industrial Spare SLC 500 Compatible

Product Overview

Allen-Bradley 1747-M13 Original Industrial Spare SLC 500 Compatible: Ensuring System Stability in Critical Automation Environments

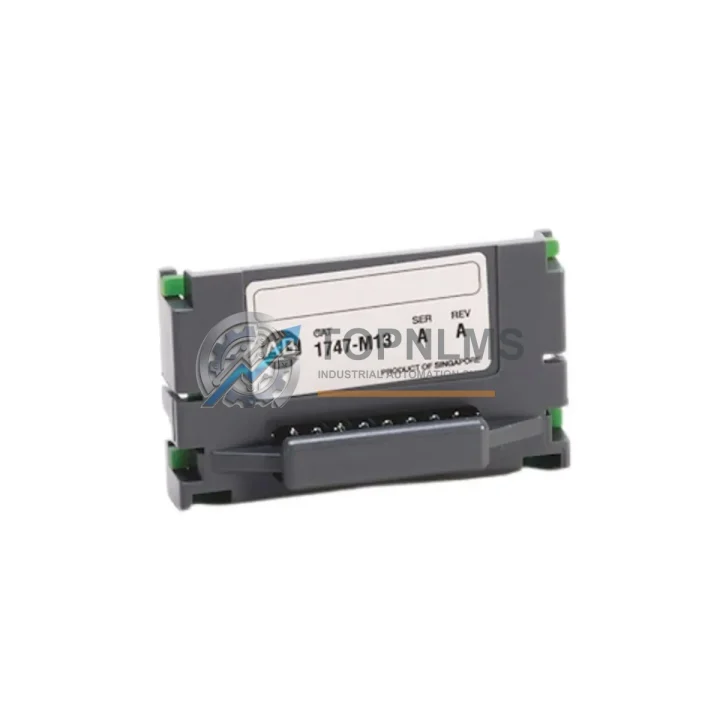

The Allen-Bradley 1747-M13 is an original EEPROM memory module designed for the SLC 500 programmable logic controller platform — one of the most widely deployed control architectures in discrete manufacturing, material handling, food and beverage processing, and utilities infrastructure. As aging SLC 500 systems continue to operate well beyond their original design life, maintaining a reliable inventory of original spare modules such as the 1747-M13 is no longer optional — it is a core pillar of any responsible preventive maintenance strategy.

The 1747-M13 provides non-volatile EEPROM storage for SLC 500 ladder logic programs, allowing the controller to retain its program through power cycles without battery dependency. In facilities where unplanned downtime carries significant financial and operational consequences, having a verified, tested replacement module on the shelf can reduce mean time to repair (MTTR) from hours to minutes. This module is compatible with the full SLC 500 processor family, including the 1747-L511, 1747-L514, 1747-L524, 1747-L531, 1747-L532, and 1747-L541 processors, making it a versatile and high-value spare for multi-line facilities running mixed SLC 500 configurations.

Critical Technical Specs

Preventive Maintenance Strategy: Protecting Your SLC 500 Control System

A well-structured preventive maintenance program for SLC 500-based control panels extends far beyond replacing a single memory module. When scheduling a planned shutdown or responding to an unplanned fault, maintenance engineers should treat the 1747-M13 replacement as an opportunity to audit the broader health of the control cabinet. The SLC 500 chassis — typically a 1746-A4, 1746-A7, or 1746-A10 rack — houses multiple interdependent modules, and the failure of any one component can cascade into system-wide instability.

During a memory module replacement, it is best practice to simultaneously inspect the 1746-P2 or 1746-P4 power supply module for signs of capacitor aging, output voltage drift, or thermal stress. A degraded power supply is one of the most common root causes of intermittent processor faults and corrupted memory states in legacy SLC 500 systems. Alongside the power supply, the 1746-IB16 digital input module and 1746-OB16 digital output module should be checked for contact wear, blown fuses, and LED indicator anomalies — particularly in high-cycle applications such as conveyor control or press automation.

For facilities running SLC 500 systems with DH+ or RS-232 communications, the 1747-KE or 1747-SDN communication modules should be included in the inspection checklist. Communication module failures are frequently misdiagnosed as processor or memory faults, and having a spare communication module alongside the 1747-M13 in your parts inventory can prevent extended diagnostic delays. Similarly, the 1746-NI4 analog input module and 1746-NO4I analog output module — commonly used in temperature, pressure, and flow control loops — should be verified for calibration drift and signal integrity during any planned maintenance window.

Terminal blocks and field wiring connections within the control cabinet deserve equal attention. Loose or corroded terminal connections on the 1492-J series terminal blocks are a leading cause of intermittent I/O faults that are often incorrectly attributed to module failure. A thorough torque check and visual inspection of all field wiring terminations, combined with a replacement of any suspect 1492-CABLE series pre-wired cables, can significantly improve system reliability between scheduled maintenance intervals.

For facilities managing multiple SLC 500 systems across different production lines, a consolidated spare parts kit — including the 1747-M13 memory module, a processor backup unit, at least one I/O module of each type in use, and a replacement power supply — represents the most cost-effective approach to minimizing unplanned downtime risk. Proactive inventory management of these components, rather than reactive emergency procurement, is the defining characteristic of high-availability industrial operations.

Strategic Replacement Solutions: Extending SLC 500 System Life

The Allen-Bradley SLC 500 platform, while no longer in active production, remains deeply embedded in thousands of manufacturing facilities worldwide. Rockwell Automation’s official end-of-life timeline for SLC 500 hardware has created a growing demand for original spare modules — particularly memory modules like the 1747-M13 — as facilities choose system extension over costly full migration to ControlLogix or CompactLogix platforms.

The 1747-M13 EEPROM module offers a direct, drop-in replacement for failed or corrupted memory modules without requiring any processor reprogramming or system reconfiguration, provided the replacement module is pre-loaded with the correct ladder logic backup. This makes it one of the fastest-path restoration components in the SLC 500 spare parts ecosystem. Compared to the alternative of sourcing a replacement processor (1747-L5xx) and re-downloading the program from a backup PC, a pre-programmed 1747-M13 swap can restore production in under 15 minutes — a critical advantage in high-throughput manufacturing environments.

For facilities that have not yet established a formal program backup and recovery procedure, the 1747-M13 also serves as a hardware-based program backup medium, storing the ladder logic independently of the processor’s internal RAM. This dual-use capability — both as a live program source and as a cold backup — makes it an exceptionally high-value component relative to its cost in any SLC 500 spare parts budget.

Support FAQ

Q1: Is the 1747-M13 compatible with all SLC 500 processors?
The 1747-M13 (16K word EEPROM) is compatible with SLC 5/02, 5/03, 5/04, and 5/05 processors. It is not compatible with the SLC 5/01 (1747-L511/L514), which requires the smaller 1747-M11 (4K) or 1747-M12 (8K) modules. Always verify your processor model and program size before ordering.

Q2: How is the 1747-M13 tested before shipment?
Each unit undergoes functional verification prior to dispatch, including physical inspection, connector integrity check, and where applicable, read/write cycle testing. A 12-month warranty covers all units against manufacturing defects and functional failure under normal operating conditions.

Q3: Can I use the 1747-M13 as a program backup without replacing the processor?
Yes. The 1747-M13 can be used as a standalone program backup device. With the SLC 500 processor in Program mode, the ladder logic can be copied from processor RAM to the EEPROM module. In the event of a processor RAM failure or battery-backed memory loss, the processor can reload the program directly from the 1747-M13 on power-up.

Q4: What is the recommended spare parts inventory strategy for SLC 500 systems?
For facilities with 3 or more SLC 500 systems, we recommend maintaining a minimum of 2 units of the 1747-M13 per processor family in use, alongside at least one spare processor, one power supply, and one unit of each critical I/O module type. This buffer inventory strategy is designed to cover both immediate replacement needs and secondary failures during extended maintenance windows, without incurring emergency procurement lead times.
