A compact I/O termination base saves cabinet space, but it does not make every field connection disappear into the base. When a plant orders an ABB S800 spare, the useful question is not simply whether the module fits. It is which part of the installed termination and marshalling arrangement the purchase actually restores.
TU810V1 is a good example. A buyer can correctly identify the compact module termination unit and still overlook the separate terminals, wiring records or I/O module involved in the maintenance job. “Complete S800 spare” is too vague to resolve those boundaries.
Know what the compact base contributes
ABB’s TU810V1 hardware selector describes a passive compact module termination unit providing field connections and a ModuleBus connection. It includes mechanical keying and supports specified I/O modules. The associated compact termination arrangement does not remove the need to account for external marshalling where the installed field circuit requires it.
The TU810V1 3BSE013230R1 compact termination unit therefore belongs in an inquiry when the installed base identity has been confirmed. It is not the same purchase as the electronic I/O module mounted on it, and a photo showing both items should not be read as a promise that both are included.
Ask the supplier to state exactly what the offered package contains. A clear quotation distinguishes the base, any separately supplied module and any accessories. It should also identify exclusions so the plant can compare the offer with the full work package.
Follow the field circuit beyond the base
In many cabinets, the visible I/O row is only one part of the signal path. External terminal rows may provide connections, segregation or other functions established by the original design. Record those components in the loop documentation without assuming that every nearby terminal belongs to the same channel.
Use the approved drawings to establish the relationship between the field device, external interface, marshalling and termination unit. If the drawings disagree with the installation, resolve that discrepancy through the site’s engineering process. Do not simplify the circuit merely because a compact base appears to offer enough connection points.
The purchasing implication is straightforward: the spare bill of materials should follow the planned repair boundary. If the job replaces only the base, say so. If damaged external terminals or other components are included in the approved repair, list them separately. Avoid concealing several different requirements inside one generic line for an S800 assembly.
Module compatibility does not mean package completeness
ABB lists AI810 among the modules associated with TU810V1 in its hardware selection information. That makes the AI810 3BSE008516R1 analog input module a relevant item when the installed application calls for that module. It does not mean that every order for TU810V1 includes AI810, or that buying both establishes the complete field interface.
Keep the identities of the base and the electronic module as separate records in stores. Their inspection criteria and failure consequences differ. A base can have mechanical or connection damage while the electronic module is intact; an electronic fault does not automatically establish a problem in the termination unit.
Do not infer the electronic module’s channel count from the termination unit’s maximum capacity. Read the module’s own specification. Likewise, mechanical keying should be treated as part of the approved hardware arrangement, not as a feature to alter in order to force an unreviewed combination to fit.
Build a receiving check around the offered scope
Before delivery, obtain a readable identification image and a written condition statement for the offered item. Ask whether the quotation covers the termination base alone and what accessories, if any, accompany it. This is especially useful when catalog pictures show an assembled station rather than the exact shipment.
At receiving, compare the identification and supplied items against the purchase order. Inspect visible housing, locking and connection features under the appropriate handling procedure. Record any discrepancy before the item is released to operational inventory. A damaged retention feature should not be dismissed simply because the unit is passive.
Store the base in protective packaging with its identification accessible. Avoid mixing loose terminal units and electronic modules under one shelf label. The next technician should be able to see which components are present without unpacking every item or relying on memory.
A compact cabinet still needs an outage plan
Physical accessibility can affect the maintenance window. The work package should account for the installed cable routing, adjacent equipment and approved isolation procedure. Do not estimate the job from a clean catalog photograph: the actual cabinet may have constraints that are not visible in the product image.
After approved replacement work, verification should cover the restored circuit and the required system behavior, not merely whether the module is seated. The responsible team determines the checks from the manufacturer’s instructions and the plant’s procedures. This article is a procurement boundary guide, not a wiring or live-replacement procedure.
Update the as-left record and replenish the exact consumed items. If external marshalling was repaired at the same time, preserve that detail. Otherwise, the next spare request may again describe a complete recovery as though it involved only one compact base.
Questions about TU810V1 spare scope
Does “compact” mean external marshalling is unnecessary?
No. It describes the termination unit, not the entire field-circuit design. Check the installed arrangement and the applicable manufacturer documentation to determine which external connections and interfaces are required.
Is the AI810 module included with a TU810V1 purchase?
Only if the supplier explicitly offers that package. Treat the termination unit and electronic module as separate items and ask for an included-item list before ordering.
Can the base capacity be used as the module’s channel count?
No. The termination unit’s capacity and an individual I/O module’s specification are different facts. Use the module data and approved configuration rather than inferring one from the other.
What makes a TOPNLMS quotation request precise?
Send the installed base and module references, readable labels, required quantity and the planned repair scope. Identify any external terminals or accessories that must be included, and state the delivery deadline and condition expectations.
Ask TOPNLMS for a scoped quotation that separates the termination unit from the electronic module and any additional material. That keeps a compact spare from becoming an incomplete repair kit when the maintenance window begins.

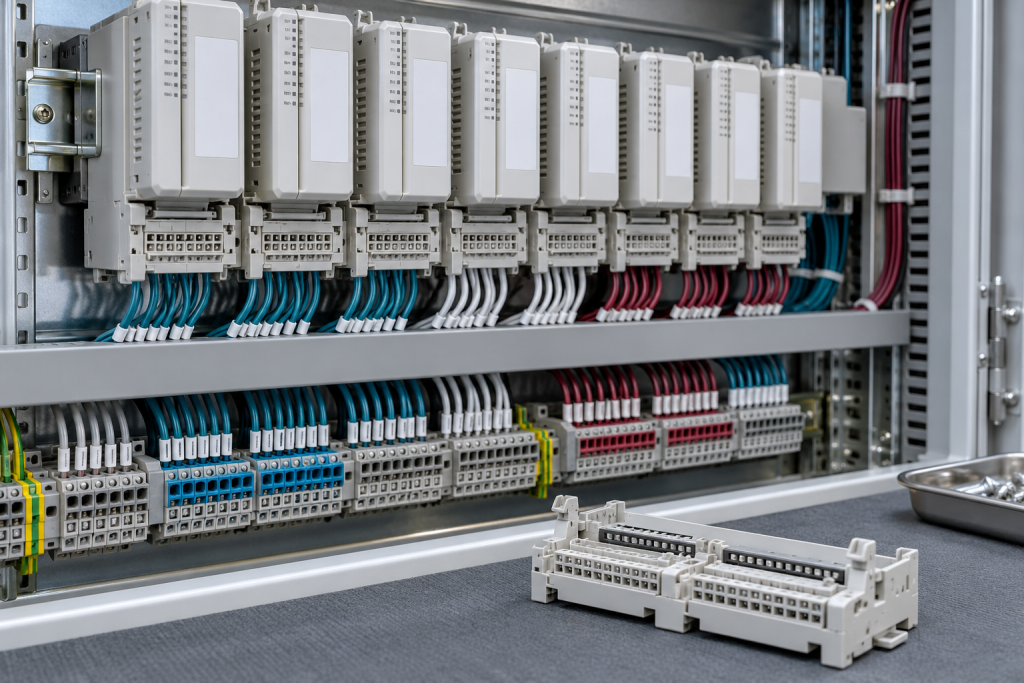

Image: AI-generated editorial illustration, not an exact product photograph or installation reference.
