ABB TU810V1 3BSE013230R1 Original Industrial Spare S800 Compatible: System Stability & Industrial Spare Maintenance Value

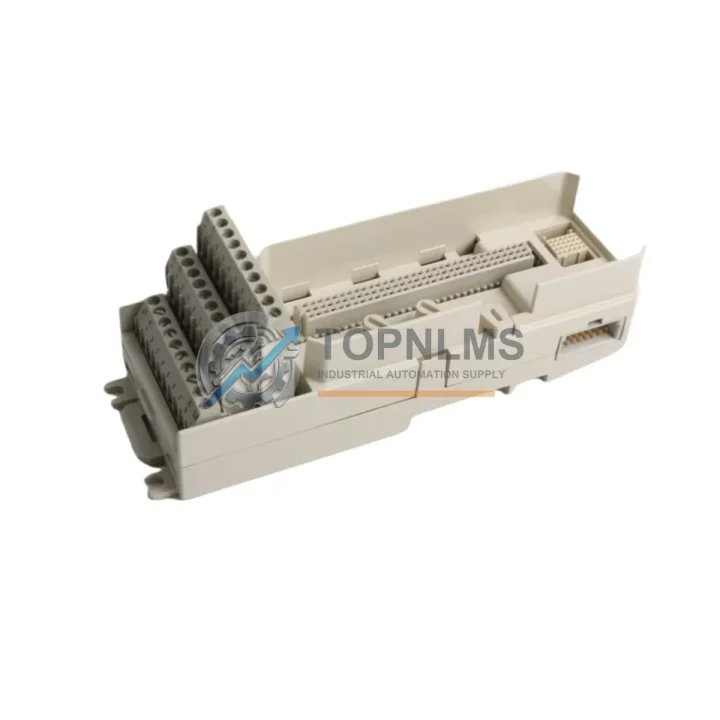

The ABB TU810V1 (catalog reference 3BSE013230R1) is an original compact termination unit engineered for ABB’s S800 I/O system — one of the most widely deployed distributed I/O platforms in process automation, power generation, pulp & paper, oil & gas, and chemical manufacturing. As a field-proven interface between S800 I/O modules and field wiring, the TU810V1 is a critical component in maintaining system continuity, signal integrity, and long-term operational stability across ABB Freelance, Symphony Plus, and System 800xA DCS architectures.

At TOPNLMS, every TU810V1 3BSE013230R1 unit is sourced as an original ABB spare, individually inspected, and shipped with a 12-month quality warranty — giving maintenance engineers and procurement teams the confidence to stock, replace, and plan with precision.

Critical Technical Specs

Preventive Maintenance Strategy

In any S800 I/O-based control system, the TU810V1 termination unit sits at the intersection of field instrumentation and the controller — making it a high-priority item in any preventive maintenance (PM) program. During scheduled shutdowns or annual control cabinet inspections, maintenance teams should treat the TU810V1 as part of a broader I/O health check rather than an isolated component.

When inspecting or replacing a TU810V1, it is best practice to simultaneously verify the condition of the associated AI810 analog input module or DI810 digital input module seated on the termination unit, as mechanical wear on the module connector can cause intermittent signal faults that are difficult to diagnose under load. If the plant runs a redundant I/O configuration, the paired TU811V1 redundancy termination unit should also be checked for secure seating and clean contacts.

Field wiring integrity is equally important. Corroded or loose connections at the TU810V1 terminal block are a leading cause of spurious alarms and false trips. During the same inspection window, engineers should verify the condition of field signal cables, cable glands, and marshalling terminal strips within the same I/O cabinet. If the cabinet also houses ABB AI830A or AO810V2 modules, their termination units should be included in the same inspection cycle to avoid repeat entries into the cabinet.

For plants running aging S800 I/O systems beyond their original design life, a proactive spare parts strategy should include not only TU810V1 units but also the associated TB820V2 ModuleBus Modem and CI854B PROFIBUS DP communication interface, both of which are common single points of failure in older S800 racks. Stocking a PS800 power supply module alongside termination units ensures that a single cabinet fault does not cascade into a multi-hour outage.

In facilities with high vibration or dusty environments — such as cement plants, mining operations, or steel mills — the TU810V1 should be inspected every six months rather than annually. In these conditions, pairing the termination unit replacement with a check of DIN rail mounting hardware, cabinet door seals, and cooling fan filters maximizes the value of each maintenance entry and reduces the frequency of unplanned interventions.

Strategic Replacement Solutions

The TU810V1 3BSE013230R1 is a direct, plug-compatible replacement for earlier S800 termination units used in legacy ABB Advant OCS and MOD 300 migration projects. Plants that have partially upgraded from older ABB platforms to System 800xA frequently encounter mixed cabinet configurations where original TU810 (non-V1) units are still in service. The TU810V1 is backward-compatible with these installations, allowing maintenance teams to standardize on a single termination unit variant across the entire facility — simplifying spare parts inventory, reducing procurement complexity, and eliminating the risk of incorrect module substitution during emergency repairs.

For OEM machine builders and system integrators managing multi-site installations, stocking TU810V1 units as a universal S800 I/O termination spare eliminates the need to maintain separate inventories for each site variant. A single SKU covers the majority of S800 analog and digital I/O applications, reducing warehouse overhead and accelerating mean time to repair (MTTR) when field failures occur.

TOPNLMS maintains ready stock of TU810V1 3BSE013230R1 units to support urgent replacement scenarios. Orders are processed within one business day, with express shipping options available for critical plant shutdowns. Each unit is tested prior to dispatch and accompanied by documentation supporting incoming inspection at the customer’s facility.

Support FAQ

Q1: Is the TU810V1 compatible with all S800 I/O modules?
The TU810V1 is designed for use with standard (non-redundant) S800 I/O modules including AI810, AO810, DI810, DI811, DI814, DO810, DO814, and DO815. For redundant I/O configurations, the TU811V1 is the appropriate termination unit. Always verify the module type before ordering to ensure correct compatibility.

Q2: What is the warranty coverage and what does it include?
All TU810V1 units supplied by TOPNLMS carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing, and a test report is available upon request.

Q3: How quickly can a TU810V1 be replaced in the field without system shutdown?
The TU810V1 supports hot-swap replacement when used in a non-redundant S800 I/O configuration, provided the associated I/O module is removed first and field wiring is de-energized per site safety procedures. In redundant configurations, switchover to the redundant path should be confirmed before removing the faulty unit. Replacement typically takes 15–30 minutes for a trained technician.

Q4: What documentation should I request when purchasing spare TU810V1 units for inventory?
For incoming inspection and inventory compliance, request the following from your supplier: original ABB part label with 3BSE013230R1 catalog reference, pre-shipment test report, country of origin declaration (Germany), and packing list with serial/batch reference. TOPNLMS provides all standard documentation with each shipment.
