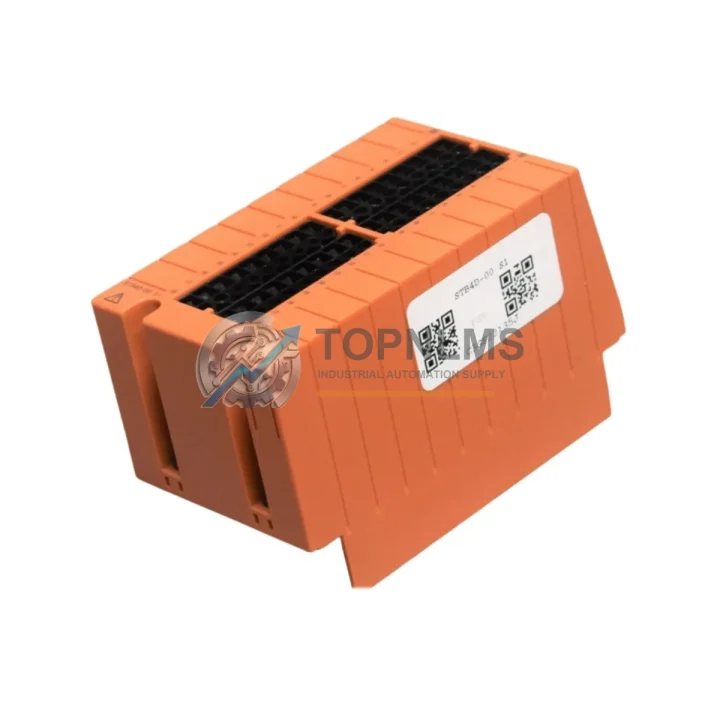

Yokogawa STB4D-00 S1 Ruggedized Terminal Block

Product Overview

Yokogawa STB4D-00 S1 Ruggedized Terminal Block: Industrial Resilience for Harsh Environments

The Yokogawa STB4D-00 S1 is a spring-clamp terminal block engineered for the STARDOM SCU I/O marshalling architecture — a field-proven solution designed to maintain signal integrity and structural reliability in the most demanding industrial environments. Whether deployed in high-temperature process areas, high-humidity coastal facilities, dust-laden mining galleries, or vibration-intensive heavy manufacturing lines, the STB4D-00 S1 delivers consistent, maintenance-reduced performance that B2B procurement teams and plant engineers depend on.

Unlike conventional screw-type terminal blocks, the spring-clamp mechanism of the STB4D-00 S1 eliminates the risk of connection loosening caused by thermal cycling and mechanical vibration — a critical advantage in continuous production environments where unplanned downtime carries significant operational and safety costs. The vibration-proof clamping force remains stable across the full rated temperature range, ensuring that field wiring stays secure even in environments subject to pump surges, compressor harmonics, or heavy vehicle traffic.

In control cabinet installations, the STB4D-00 S1 integrates directly with the Yokogawa STARDOM FCN/FCJ autonomous controller platform and its associated SCU (Signal Conditioning Unit) I/O marshalling panels. This tight system-level compatibility means that field signals — whether from thermocouples, pressure transmitters, flow meters, or discrete safety sensors — are routed cleanly and reliably into the DCS or PLC control layer without signal degradation or grounding issues. When paired with Yokogawa’s STB4D-00 base modules and NFAI143 analog input modules, the marshalling architecture supports high-density I/O consolidation that simplifies both commissioning and long-term maintenance.

The STB4D-00 S1 is also fully compatible with Yokogawa’s CENTUM VP distributed control system field junction boxes, where it serves as the interface between field instrument cables and the DCS I/O cards. In these installations, it works alongside ALF111 field communication modules and AAI141 analog I/O modules to form a complete, validated signal chain. For safety-instrumented systems, the terminal block’s low-resistance, vibration-stable connections support the integrity requirements of SIL-rated loops when used in conjunction with Yokogawa’s ProSafe-RS safety controller and its associated SSI143 safety I/O modules.

In power distribution and control cabinet applications, the STB4D-00 S1 is routinely installed alongside industrial power supplies, 24 VDC bus bars, relay output modules, and communication gateway modules. Its compact DIN-rail footprint allows high-density wiring in space-constrained marshalling panels, reducing cabinet size and cable management complexity. The spring-clamp termination also supports tool-free wire insertion for common conductor sizes, accelerating panel build times and reducing the risk of wiring errors during commissioning.

For facilities operating in classified hazardous areas — including Zone 1/Zone 2 gas environments or ATEX-rated dust zones — the STB4D-00 S1 can be deployed within appropriately rated enclosures as part of a compliant intrinsic safety or increased safety wiring strategy. Its compatibility with Yokogawa’s FOUNDATION Fieldbus and HART protocol infrastructure means it can serve as the marshalling interface for smart field devices, enabling asset health monitoring and predictive maintenance data to flow uninterrupted to the control room.

Rugged Specifications Table

Comprehensive Protection Solutions

The STB4D-00 S1 is most effective when deployed as part of a coordinated protection and control architecture. In a typical STARDOM-based control cabinet, it works in concert with the Yokogawa FCN-100 autonomous controller, which handles local PID control and data logging even during network interruptions — a critical capability for remote oil well pads and unmanned pump stations. The terminal block’s marshalling function ensures that analog signals from pressure and temperature transmitters reach the FCN-100’s NFAI143 analog input modules without noise or ground loop interference.

For discrete I/O applications, the STB4D-00 S1 pairs with NFDI141 digital input modules and NFDO141 digital output modules to handle motor start/stop commands, valve position feedback, and emergency shutdown (ESD) signals. In safety-critical loops, these signals are cross-validated by the ProSafe-RS safety controller via its SSI143 safety input modules, ensuring that SIL 2-rated shutdown functions operate with the required diagnostic coverage and response time.

Power integrity is maintained through 24 VDC redundant power supply units mounted on the same DIN rail, with power distribution managed through fused terminal blocks and surge protection devices. Communication between the marshalling panel and the control room DCS is handled via Yokogawa ALF111 FOUNDATION Fieldbus H1 link modules or HART multiplexers, depending on the field device protocol. This layered architecture — terminal block, I/O module, safety controller, communication gateway, and DCS — represents the standard of practice for high-availability process control in refinery, LNG, and power generation facilities.

Application in Critical Infrastructure

In upstream oil and gas operations, the STB4D-00 S1 is deployed in wellhead control panels and production separator skids where ambient temperatures can exceed 55°C and salt-laden humidity accelerates corrosion of conventional screw terminals. The spring-clamp design eliminates the periodic re-torquing maintenance that screw terminals require in thermally cycled environments, reducing scheduled maintenance intervals and the associated production interruptions.

In coal-fired and gas turbine power generation facilities, the terminal block serves as the marshalling interface for turbine protection systems, where vibration from rotating machinery at 3,000–3,600 RPM would loosen conventional connections within months of commissioning. Its vibration-proof clamping ensures that speed sensor, bearing temperature, and flame detector signals remain stable throughout the turbine’s operational life.

Water and wastewater treatment plants operating in high-humidity pump rooms rely on the STB4D-00 S1 within IP54-rated marshalling enclosures to interface with submersible pump level sensors, chlorine dosing flow meters, and UV disinfection system controls. The terminal block’s compatibility with HART-enabled field devices allows plant operators to perform remote diagnostics and calibration without interrupting the treatment process.

In metallurgical and steel mill applications, where electromagnetic interference from arc furnaces and induction heaters is severe, the STB4D-00 S1’s low-impedance spring-clamp connections minimize the risk of noise-induced signal errors that could trigger spurious shutdowns or mask genuine process alarms. Combined with shielded cable termination practices and the CENTUM VP DCS’s built-in signal filtering, it provides a robust signal chain from the furnace floor to the control room.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it processed?
The STB4D-00 S1 carries a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. If a unit fails within the warranty period, TOPNLMS will arrange replacement or repair at no additional cost. Warranty claims are processed via email to [email protected] with the order reference and a brief fault description. Replacement units are typically dispatched within 3–5 business days.

Q2: How is each unit tested before shipment?
Every STB4D-00 S1 unit undergoes pre-shipment functional verification, including continuity testing of all spring-clamp contacts and visual inspection for mechanical integrity. Units sourced from authorized Yokogawa distribution channels are accompanied by original manufacturer documentation. For customers requiring additional test reports or certificates of conformity, these can be provided upon request at the time of order.

Q3: Is the STB4D-00 S1 compatible with third-party DCS and PLC systems beyond the Yokogawa STARDOM platform?
While the STB4D-00 S1 is optimized for the Yokogawa STARDOM SCU marshalling architecture, its standard DIN-rail mounting and spring-clamp termination make it physically compatible with generic marshalling panel designs used alongside Siemens SIMATIC S7, ABB System 800xA, Honeywell Experion, and Emerson DeltaV I/O systems. Customers integrating the terminal block into non-Yokogawa systems should verify conductor size compatibility and confirm that the marshalling panel layout meets their system’s wiring segregation requirements.

Q4: Can TOPNLMS support long-term supply for maintenance and spare parts programs?
Yes. TOPNLMS maintains stock of the STB4D-00 S1 and related STARDOM SCU components to support both immediate replacement needs and planned spare parts programs. For facilities with multi-year maintenance contracts or annual blanket purchase orders, we offer reserved stock arrangements and priority dispatch. Contact [email protected] or call +86 18359293191 to discuss volume pricing and long-term supply agreements.
