YOKOGAWA NFTR8S-10 Ruggedized Terminal Block Module

Product Overview

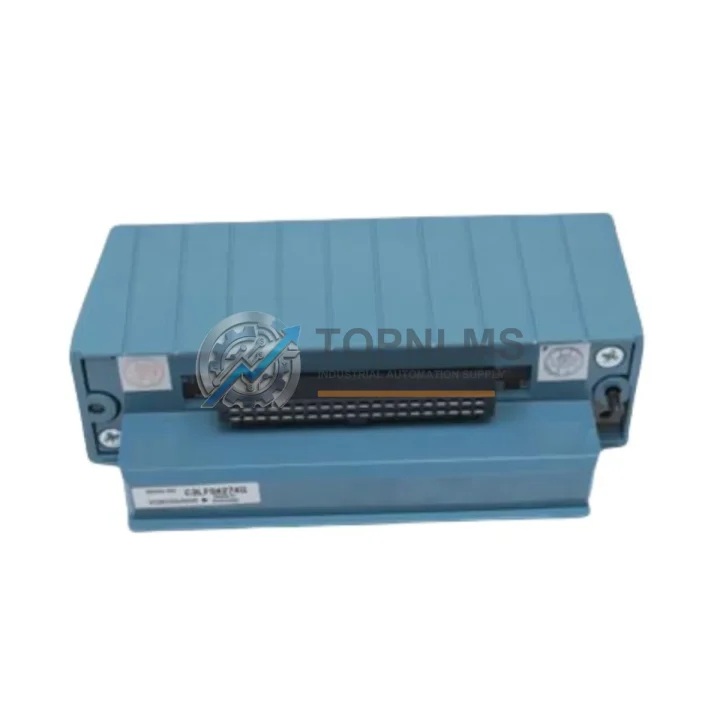

YOKOGAWA NFTR8S-10 Ruggedized Terminal Block Module: Industrial Resilience for Harsh Environments

The YOKOGAWA NFTR8S-10 is an 8-channel terminal block module engineered for the CENTUM VP and CS 3000 Distributed Control System (DCS) platform — one of the most trusted process automation architectures deployed across critical industries worldwide. Designed to operate reliably under extreme thermal cycling, high-humidity conditions, heavy vibration, and persistent electromagnetic interference, the NFTR8S-10 delivers the field-level signal integrity that modern industrial safety and control systems demand.

In continuous production environments — from petrochemical refineries and offshore platforms to metallurgical smelters and municipal water treatment facilities — field wiring termination is a silent but mission-critical function. A degraded or failed terminal block module can cascade into I/O signal loss, controller faults, and unplanned shutdowns. The NFTR8S-10 eliminates this risk by providing a robust, vibration-resistant termination interface that maintains stable electrical contact even under the mechanical stress of heavy industrial machinery and seismic activity.

TOPNLMS maintains verified stock of the NFTR8S-10 with pre-shipment functional testing, professional packaging, and a 12-month quality warranty covering manufacturing defects and functional failures. Every unit is inspected against YOKOGAWA’s original specifications before dispatch.

Rugged Specifications Table

Comprehensive Protection Solutions

The NFTR8S-10 does not operate in isolation — it is a precision component within a tightly integrated YOKOGAWA DCS architecture. In a typical CENTUM VP control cabinet, the NFTR8S-10 interfaces directly with field I/O modules such as the AAI141-S analog input module and the AAI543-H analog I/O module, providing the physical wiring termination layer that bridges field instruments to the controller bus. Signal fidelity at this junction is non-negotiable in safety-instrumented environments.

For process safety applications, the NFTR8S-10 is commonly deployed alongside YOKOGAWA’s ProSafe-RS safety controller modules and associated safety I/O cards, where terminal integrity directly supports SIL-rated loop performance. In high-vibration environments such as compressor stations or rotating machinery platforms, the module’s secure locking mechanism prevents terminal loosening — a failure mode that can silently degrade 4–20 mA analog signals and trigger nuisance alarms or, worse, missed process deviations.

Within the same control cabinet, the NFTR8S-10 typically coexists with the NFAI135 and NFAI143 field I/O modules, the NFCP100 field control station processor, and communication modules such as the ESB Bus coupler units that link I/O nests to the FCS. Industrial power supply modules — including YOKOGAWA’s PW481 and PW482 redundant power supply units — provide the stable 24 VDC rail that the entire I/O nest depends on. A failure in any one of these components can propagate across the nest; maintaining genuine spare stock of the NFTR8S-10 is therefore a standard practice in any responsible maintenance strategy.

For facilities running hybrid architectures, the NFTR8S-10 is also compatible with marshalling cabinet configurations where YOKOGAWA NFAI841 or NFDO501 modules are installed, enabling flexible field wiring consolidation without compromising signal isolation or ground loop integrity.

Application in Critical Infrastructure

In oil and gas upstream and midstream operations, the NFTR8S-10 is deployed in wellhead control panels, pipeline SCADA outstations, and compressor control systems where ambient temperatures fluctuate widely and vibration from rotating equipment is constant. Its robust terminal design ensures that thermocouple, RTD, and 4–20 mA transmitter signals remain stable across extended production cycles without requiring periodic re-termination.

In coal-fired and gas-fired power generation plants, CENTUM VP DCS systems govern boiler combustion control, turbine protection, and balance-of-plant automation. The NFTR8S-10 serves as the field wiring backbone in these systems, where a single channel fault can trigger a boiler trip or turbine runback. Preventive spare holding of this module is standard practice in planned outage management programs.

In mining and mineral processing — including copper smelting, gold leaching circuits, and coal preparation plants — the combination of airborne dust, corrosive chemical vapors, and high-amplitude vibration creates one of the most demanding environments for control system hardware. The NFTR8S-10’s sealed terminal design and vibration-resistant construction make it a preferred choice for DCS I/O nest maintenance in these facilities.

In water and wastewater treatment infrastructure, where continuous 24/7 operation is mandated and unplanned downtime carries regulatory consequences, the NFTR8S-10 supports reliable signal termination for flow meters, level transmitters, and chemical dosing control loops. Its compatibility with the full CENTUM VP I/O ecosystem ensures seamless replacement without reconfiguration.

In metallurgical and steel production environments, extreme radiant heat, electromagnetic interference from arc furnaces, and mechanical shock from heavy rolling equipment challenge every component in the control cabinet. The NFTR8S-10’s industrial-grade construction and YOKOGAWA’s proven DCS platform reliability make it a trusted component in these high-stakes applications.
