Yokogawa STA4S-10 S1 Replacement for CENTUM VP DCS

Product Overview

Yokogawa STA4S-10 S1 Replacement for CENTUM VP DCS: Seamless Migration & Upgrade Solution

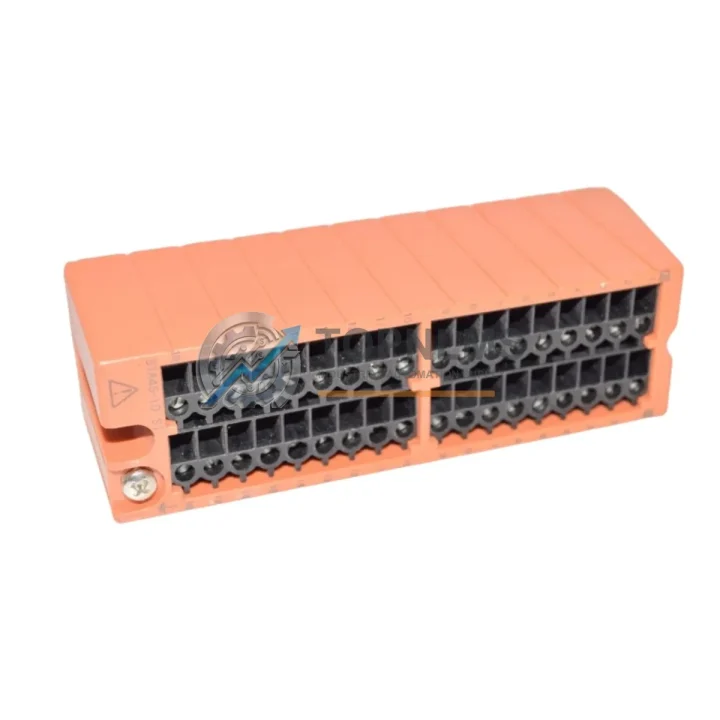

The Yokogawa STA4S-10 S1 is a field wiring terminal block engineered for the CENTUM VP Distributed Control System platform. As legacy DCS installations age and original Yokogawa wiring infrastructure reaches end-of-service, plant engineers and procurement teams face increasing pressure to source verified replacement components that preserve system integrity without triggering full-scale rewiring or re-engineering projects. TOPNLMS maintains ready stock of the STA4S-10 S1 to support exactly these migration and upgrade scenarios — delivering a drop-in solution that minimizes downtime and protects your existing capital investment.

The STA4S-10 S1 terminal block is designed to interface directly with CENTUM VP I/O modules and field instrument wiring harnesses. Its screw-terminal architecture is fully compatible with the standard 10-point field wiring convention used across the CENTUM VP, CENTUM CS 3000, and earlier CENTUM CS series installations. When a plant is migrating from a CENTUM CS 3000 system to CENTUM VP, or consolidating aging field junction boxes, the STA4S-10 S1 can be installed without modifying existing cable schedules, loop drawings, or marshalling cabinet layouts. This is a critical advantage in brownfield retrofit projects where re-termination labor costs and loop-check downtime are primary concerns.

In practice, the STA4S-10 S1 is frequently deployed alongside the Yokogawa AFV10D and AFV30D field control stations, where it serves as the physical termination point between field instrument cables and the I/O card backplane. Engineers upgrading from older Yokogawa RIO (Remote I/O) nodes to modern CENTUM VP FIO (Field I/O) architecture will find that the STA4S-10 S1 retains the same terminal pitch and wiring convention, eliminating the need to re-label or re-route existing multi-pair cables. The module also integrates cleanly with Yokogawa’s ESB bus coupler modules and the KFCS/LFCS2 field control units used in large-scale process automation environments.

For sites running Yokogawa ProSafe-RS safety instrumented systems in parallel with CENTUM VP process control, the STA4S-10 S1 provides a consistent termination standard across both platforms, simplifying cabinet layout and reducing the risk of mis-wiring during maintenance windows. When combined with Yokogawa’s TB series terminal boards and the AIP588 or ANB10D node interface modules, the STA4S-10 S1 supports a fully documented, traceable wiring architecture that satisfies IEC 61511 functional safety documentation requirements.

Procurement teams sourcing STA4S-10 S1 units for emergency replacement or planned turnaround maintenance will benefit from TOPNLMS’s pre-shipment inspection process. Each unit is tested for terminal continuity, insulation resistance, and mechanical integrity before dispatch. Units are shipped from our Xiamen warehouse with full traceability documentation, including batch records and inspection reports, supporting your site’s spare parts management and audit requirements.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful CENTUM VP field wiring migration rarely involves a single component. When replacing or upgrading the STA4S-10 S1 terminal block, the following related components are commonly required to complete the retrofit and ensure system continuity.

The Yokogawa TB820V terminal board is frequently paired with the STA4S-10 S1 in marshalling cabinet builds, providing the backplane connection between field wiring and the I/O card cage. In systems where the existing TB820V has reached its service life, replacing both the terminal board and the STA4S-10 S1 simultaneously reduces future maintenance risk. Similarly, the Yokogawa ANB10D node interface module is a common companion in CENTUM VP FIO architectures, managing the ESB bus communication between the field control station and the I/O subsystem.

For sites migrating from CENTUM CS 3000 to CENTUM VP, the Yokogawa AFV10D field control station is the target controller platform, and the STA4S-10 S1 is the standard field wiring termination for its I/O modules. Engineers should also verify the condition of the Yokogawa ESB bus coupler (EB401) during the migration, as aging bus couplers are a common source of intermittent I/O faults in legacy installations. Where signal isolation is required between field instruments and the DCS I/O cards — particularly in high-noise industrial environments such as refineries or chemical plants — the addition of a Yokogawa MTL or equivalent signal isolator/barrier module is recommended to protect the new terminal block assembly.

Power supply integrity is equally important during a terminal block replacement. The Yokogawa PW482 or equivalent DCS power supply module should be inspected and replaced if it shows signs of aging, as power quality directly affects I/O card stability and field instrument accuracy. For sites that require programming or configuration changes during the migration — for example, re-mapping I/O channel assignments after a cabinet reorganization — the Yokogawa SCS Engineering Environment (SENG) software and the associated Yokogawa BCV communication cable are essential tools for connecting a laptop to the CENTUM VP system bus without interrupting live process control.

Finally, for plants that operate Yokogawa STARDOM FCN/FCJ autonomous controllers in satellite control rooms connected to the main CENTUM VP network, ensuring that the field wiring terminal blocks in those remote panels are also upgraded to current-generation components — such as the STA4S-10 S1 — is a best practice that reduces the risk of wiring failures propagating across the distributed control network.

Retrofit Guidance FAQ

Q: Can the STA4S-10 S1 be installed without modifying existing field wiring?
A: Yes. The STA4S-10 S1 uses the same 10-point screw terminal layout and terminal pitch as the units it replaces in CENTUM VP and CENTUM CS 3000 installations. Existing field cables can be re-terminated directly without changes to cable schedules or loop drawings.

Q: Is any programming change required after replacing the terminal block?
A: No. The STA4S-10 S1 is a passive wiring component. It does not contain firmware or configuration data. No changes to the CENTUM VP control database, function block diagrams, or I/O channel assignments are required as a result of the terminal block replacement alone.

Q: What communication protocols are supported?
A: The STA4S-10 S1 is protocol-transparent. It supports hardwired analog signals (4–20 mA), discrete I/O (24 VDC), and thermocouple/RTD inputs depending on the associated I/O card type. It is compatible with all standard CENTUM VP I/O card variants.

Q: Will the STA4S-10 S1 fit in the existing cabinet without modification?
A: Yes. The STA4S-10 S1 has the same physical footprint and DIN rail mounting dimensions as the original CENTUM VP field wiring terminal blocks. No cabinet modification, additional mounting hardware, or space reallocation is required.

Q: How should the replacement be commissioned on-site?
A: After installation, perform a point-to-point continuity check on all re-terminated field cables. Verify signal integrity at the I/O card level using the CENTUM VP system diagnostic tools. Conduct a loop check for each instrument connected to the replaced terminal block before returning the loop to automatic control. Document the replacement in your site’s maintenance management system (CMMS) for traceability.

Q: Can this unit replace terminal blocks in a ProSafe-RS safety system cabinet?
A: The STA4S-10 S1 is a CENTUM VP DCS component. For ProSafe-RS SIS applications, consult the ProSafe-RS hardware documentation and verify the specific terminal block part number required for your safety loop. TOPNLMS can assist with sourcing ProSafe-RS compatible components separately.

Warranty Assurance

Every Yokogawa STA4S-10 S1 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Our warranty covers manufacturing defects, terminal failure, and mechanical integrity issues identified under normal operating conditions consistent with the CENTUM VP DCS environment.

Prior to dispatch, each unit undergoes a pre-shipment inspection that includes terminal continuity testing, insulation resistance verification, and visual inspection for mechanical damage. Inspection records are retained and can be provided upon request to support your site’s incoming goods inspection and spare parts qualification process.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response target is 24 hours for initial acknowledgment and 5 business days for replacement dispatch. We maintain buffer stock of the STA4S-10 S1 specifically to support emergency replacement scenarios, ensuring that warranty replacements do not extend your plant’s downtime.

For procurement teams managing approved vendor lists (AVL) or supplier qualification requirements, TOPNLMS can provide company registration documents, quality management certifications, and product traceability records upon request. We ship globally from Xiamen, China, with DHL Express, FedEx International Priority, and sea freight options available depending on urgency and order volume.

To place an order, request a quotation, or discuss bulk pricing for turnaround or MRO stocking programs, contact our technical sales team directly.
