Yokogawa STA4D-00-S2 Replacement for CENTUM VP/CS 3000

Product Overview

Yokogawa STA4D-00-S2 Replacement for CENTUM VP/CS 3000: Seamless Migration & Smooth Transition

When your existing Yokogawa CENTUM CS 3000 or CENTUM VP distributed control system reaches end-of-life or requires a critical spare, sourcing a verified replacement for the STA4D-00-S2 terminal block becomes a top operational priority. This unit serves as the field-wiring interface between your process I/O signals and the DCS I/O modules, making it a foundational component in any retrofit, upgrade, or emergency replacement scenario. TOPNLMS supplies the STA4D-00-S2 from verified stock, fully tested, and ready for immediate dispatch — minimizing your plant downtime and keeping your control system architecture intact.

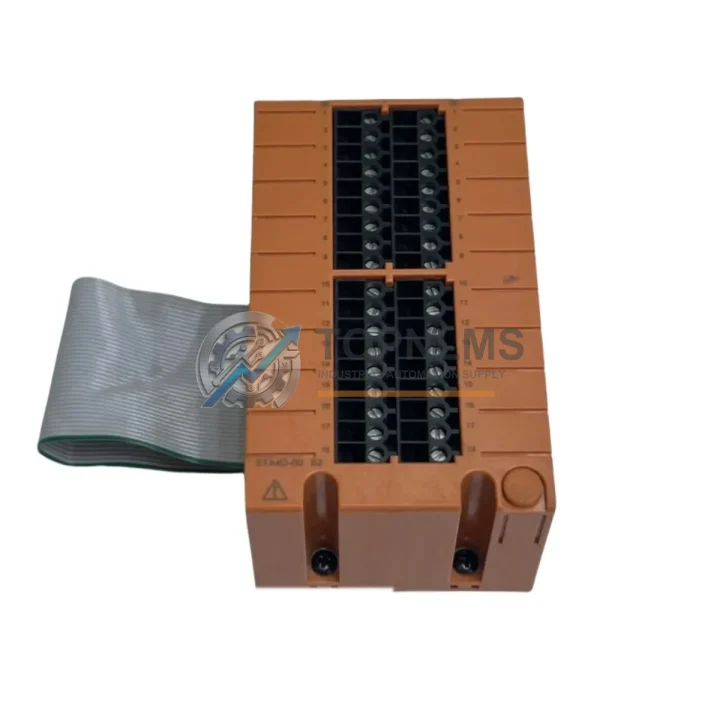

The STA4D-00-S2 is a 4-wire differential-input terminal block designed for use with Yokogawa analog input I/O modules such as the AAI141-S00 and AAI143-S00 within the CENTUM VP and CS 3000 field control station (FCS) environment. It mounts directly onto the node unit or I/O nest, preserving the original field-wiring layout without requiring re-termination or cable extension. This plug-and-play compatibility is critical for brownfield sites where re-wiring would introduce unacceptable risk and extended shutdown windows.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful CENTUM CS 3000 to CENTUM VP migration involves more than swapping a single terminal block. In practice, engineers replacing the STA4D-00-S2 are often simultaneously addressing adjacent components within the same I/O nest or field control station. The AAI141-S00 analog input module is the most common companion unit — it plugs directly into the same nest and relies on the STA4D-00-S2 for field signal termination. If your migration scope includes expanding analog input capacity, the AAI143-S00 offers an 8-channel variant that uses the same terminal block interface.

For sites upgrading their FCS architecture, the AFV10D field control unit and associated ANB10S node unit form the backbone of the CENTUM VP I/O subsystem. When replacing terminal blocks across multiple I/O nests, it is common to also audit the AIP588-00 power supply module — aging power supplies in CS 3000 cabinets are a frequent root cause of intermittent I/O faults that are mistakenly attributed to terminal block degradation.

Communication continuity is another key concern during DCS migration. The ALR111 Vnet/IP communication module handles the high-speed control network between FCS nodes and the human interface station (HIS). Ensuring this module is firmware-compatible with your target CENTUM VP revision prevents communication timeouts during cutover. Similarly, if your plant uses FOUNDATION Fieldbus or HART-enabled instruments, the AAB841-S00 HART multiplexer terminal block may be required alongside the STA4D-00-S2 in mixed-signal I/O nests.

For engineers performing loop checks and commissioning after terminal block replacement, a Yokogawa-compatible programming cable (e.g., KS1-USB) connected to the engineering workstation running CENTUM VP Builder allows real-time I/O verification without interrupting live process control. Finally, if your retrofit includes upgrading the operator interface, the STARDOM FCN autonomous controller or a modern ProSafe-RS safety controller integration may be part of the broader system architecture — both of which interface with the same Vnet/IP backbone that the STA4D-00-S2 supports at the field level.

Retrofit Guidance FAQ

Q: Do I need to re-terminate field wiring when replacing the STA4D-00-S2?
A: No. The STA4D-00-S2 is a direct drop-in replacement. Field cables connect to the terminal block’s screw terminals using the same wiring scheme as the original unit. No re-labeling or re-routing is required, which significantly reduces the risk of wiring errors during hot-swap or planned shutdown replacement.

Q: Is the STA4D-00-S2 compatible with both CENTUM CS 3000 and CENTUM VP?
A: Yes. The terminal block is mechanically and electrically compatible with both platforms. It interfaces with the same I/O module family (AAI141/AAI143 series) used across both DCS generations, making it suitable for mixed-revision sites that have not yet completed a full platform migration.

Q: Will replacing this terminal block require any changes to the FCS program or control logic?
A: No. The STA4D-00-S2 is a passive field-wiring interface with no embedded firmware or configurable parameters. Replacing it has zero impact on FCS control logic, function block diagrams, or I/O tag assignments in CENTUM VP Builder.

Q: What communication protocols are affected during replacement?
A: None. The terminal block is located at the field-wiring layer and is transparent to all higher-level protocols including Vnet/IP, FOUNDATION Fieldbus, HART, and Modbus. Protocol continuity is maintained throughout the replacement procedure.

Q: How much physical space does the replacement require in the control cabinet?
A: The STA4D-00-S2 occupies the same physical slot as the original unit. No cabinet modification, additional DIN rail space, or bracket adaptation is needed. This is particularly important for dense FCS cabinets where space constraints limit retrofit options.

Q: Can this unit be used as a long-term spare for preventive maintenance programs?
A: Yes. TOPNLMS recommends holding at least one spare STA4D-00-S2 per FCS cabinet as part of a proactive spare parts strategy. Given the end-of-production status of many CS 3000 components, securing verified stock now reduces exposure to extended lead times during future unplanned outages.

Warranty Assurance

Every STA4D-00-S2 terminal block shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each unit undergoes a multi-point outgoing inspection that includes visual examination for mechanical integrity, connector pin verification, and functional continuity testing. Units that do not meet our quality threshold are quarantined and never shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period — no extended RMA delays. Our after-sales response target is 24 hours for initial acknowledgment and 72 hours for resolution commitment. We understand that DCS component failures in operating plants are time-critical, and our procurement support team is reachable via email and phone for urgent cases.

For bulk orders, project-based procurement, or standing spare-parts agreements, TOPNLMS offers priority allocation from reserved stock, consolidated shipping, and documentation packages including test reports and country-of-origin certificates to support your plant’s maintenance records and audit requirements.

All units are shipped from Xiamen, China with standard export documentation. Delivery timelines and carrier options are confirmed at order placement. Express international shipping is available for emergency replacement scenarios.
