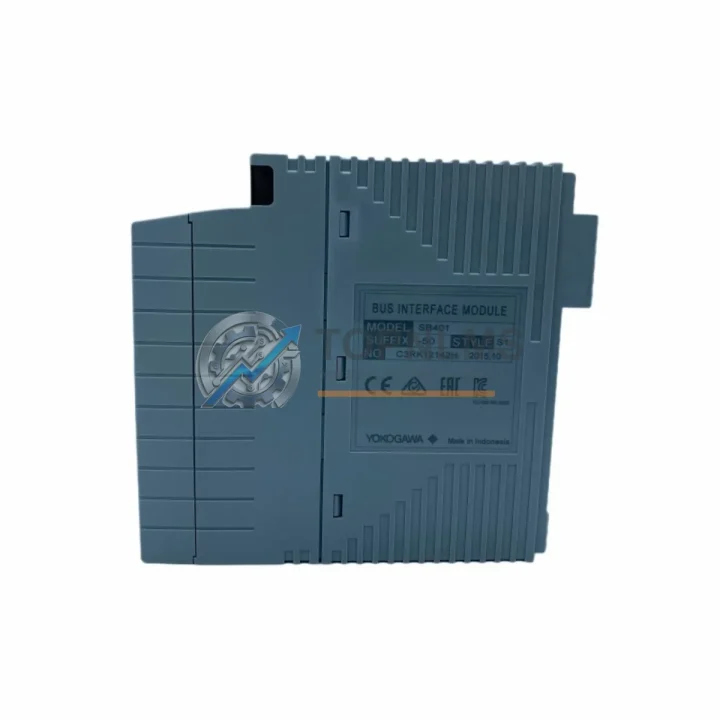

YOKOGAWA SB401-50 Original Industrial Spare FA-M3 Compatible

Product Overview

YOKOGAWA SB401-50 Original Industrial Spare FA-M3 Compatible: System Stability and Industrial Spare Parts Maintenance Value

The YOKOGAWA SB401-50 is an original bus interface slave module designed for the FA-M3 and STARDOM series programmable controller platforms — two of the most widely deployed control architectures in process manufacturing, utilities, and discrete automation facilities across Asia and globally. As a critical communication bridge between the CPU rack and remote I/O stations, the SB401-50 plays a foundational role in maintaining real-time data exchange across the control network. When this module fails or degrades, the consequences extend far beyond a single I/O point: entire process segments can go offline, triggering unplanned shutdowns that cost facilities thousands of dollars per hour in lost production.

Sourcing an original YOKOGAWA SB401-50 replacement — rather than a counterfeit or incompatible substitute — is the single most important decision a maintenance engineer can make during an emergency repair. Original modules are factory-calibrated, firmware-matched, and fully validated against the FA-M3 backplane specification. They slot in without reconfiguration, restore bus communication within minutes of installation, and carry the full 12-month warranty that gives procurement teams the confidence to stock spares without financial risk.

Critical Technical Specs Table

Preventive Maintenance Strategy

In any FA-M3 or STARDOM-based control system, the SB401-50 bus interface slave module is rarely the only component that requires attention during a scheduled maintenance window. Experienced maintenance engineers know that when a bus communication fault appears, the root cause is often systemic — involving not just the slave module itself, but the entire communication chain from the CPU rack outward. A disciplined preventive maintenance strategy therefore treats the SB401-50 replacement as the starting point of a broader inspection, not the end of it.

When replacing or inspecting the SB401-50, it is best practice to simultaneously verify the condition of the F3SP66-4S or F3SP71-4N CPU module that manages the bus master function. A degraded CPU module can cause intermittent bus errors that mimic slave module failure, leading to repeated unnecessary replacements. Alongside the CPU, the F3BU04-0N or F3BU16-0N base unit should be inspected for backplane connector wear, corrosion, or mechanical damage — issues that are invisible during normal operation but become critical failure points over time.

The power supply feeding the remote I/O rack is another high-priority inspection item. The F3PU20-0S power supply module should be load-tested during the maintenance window; an aging power supply operating near its rated capacity will cause bus instability that is frequently misdiagnosed as a slave module fault. Similarly, the F3NC96-0N or F3NC34-0N network communication modules installed in the same cabinet should be checked for firmware currency and connector integrity, as these modules share the same communication infrastructure as the SB401-50.

At the I/O level, the F3AD08-6R analog input modules and F3DI32-3N digital input modules connected downstream of the slave station should be inspected for channel drift, blown fuses, or terminal block loosening — all common causes of process signal anomalies that are incorrectly attributed to bus communication failures. Terminal blocks and F3TB32-0N terminal base units should be re-torqued to specification, as vibration in industrial environments causes gradual loosening that increases contact resistance over time.

For facilities running STARDOM FCN controllers in parallel with FA-M3 racks, the FCN-RTU communication module and associated Vnet/IP or Ethernet interface cards should be included in the inspection scope. These modules bridge the STARDOM network to the FA-M3 bus and are subject to the same environmental stresses as the SB401-50. Stocking a spare F3RP61-2L Linux-based module or equivalent controller card alongside the SB401-50 is a prudent inventory strategy for facilities that cannot tolerate extended downtime.

Finally, the optical fiber cables or shielded twisted-pair bus cables connecting master and slave racks should be visually inspected and continuity-tested. Cable degradation is a leading cause of intermittent bus faults and is often overlooked in spare parts planning. Maintaining a small stock of pre-terminated bus cables alongside the SB401-50 ensures that a complete bus segment can be restored within a single maintenance shift.

Strategic Replacement Solutions

The YOKOGAWA SB401-50 has been in service across FA-M3 installations for over two decades, and many facilities are now operating systems where the original modules are approaching or have exceeded their rated service life. The challenge for maintenance and procurement teams is that the FA-M3 platform itself remains fully supported by YOKOGAWA, meaning there is no system-level migration pressure — only the need to replace aging hardware components on a rolling basis.

The SB401-50 is a direct drop-in replacement for earlier bus interface slave modules used in FA-M3 systems. It maintains full backward compatibility with existing base units, CPU modules, and I/O configurations, meaning no software changes, no re-engineering of the control program, and no recalibration of process loops are required after installation. This plug-and-play compatibility dramatically reduces the risk and cost of the replacement procedure, allowing a trained technician to complete the swap in under 30 minutes with the system returned to full operation immediately after.

For facilities managing multiple FA-M3 cabinets across a plant floor, a strategic approach to SB401-50 inventory is to maintain at least one spare module per three installed units, with a minimum of two spares per facility regardless of installed base size. This ratio balances carrying cost against the risk of a stockout during a simultaneous multi-cabinet fault — a scenario that, while rare, is disproportionately costly when it occurs. Procurement teams that establish a standing order for SB401-50 modules on an annual basis consistently report lower total maintenance costs compared to those who purchase reactively after a failure event.

For older systems where the SB401-50 is being used to extend the life of a legacy FA-M3 installation beyond its originally planned decommission date, the module’s original firmware and hardware specification ensures that it will continue to operate correctly within the existing system architecture without requiring any platform upgrades. This makes the SB401-50 one of the most cost-effective tools available for industrial system life extension programs.

Support FAQ

Q1: Is the SB401-50 compatible with all FA-M3 base units and CPU modules?
The SB401-50 is designed for use with YOKOGAWA FA-M3 series base units and is compatible with the full range of F3-series CPU modules. It functions as a slave station interface and does not require CPU firmware updates for standard replacement. If your system uses a non-standard bus configuration, please contact us with your system model numbers for compatibility confirmation before ordering.

Q2: What pre-shipment testing is performed on the SB401-50?
Every SB401-50 unit undergoes a full functional test prior to dispatch, including bus communication verification, backplane connector inspection, and power-on self-test validation. Units that do not pass all test criteria are not shipped. A test report is available upon request for quality-critical procurement processes.

Q3: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If a unit fails within the warranty period, we will provide a replacement module at no charge after fault verification. Warranty claims are processed via email at [email protected], typically within 2 business days of fault confirmation.

Q4: How quickly can the SB401-50 be shipped, and what regions do you serve?
We maintain stock of the SB401-50 and can dispatch within 1–3 business days of order confirmation. We ship worldwide via DHL, FedEx, and UPS with full tracking. Express shipping options are available for emergency maintenance situations. Contact us at +86 18359293191 for urgent order coordination.
