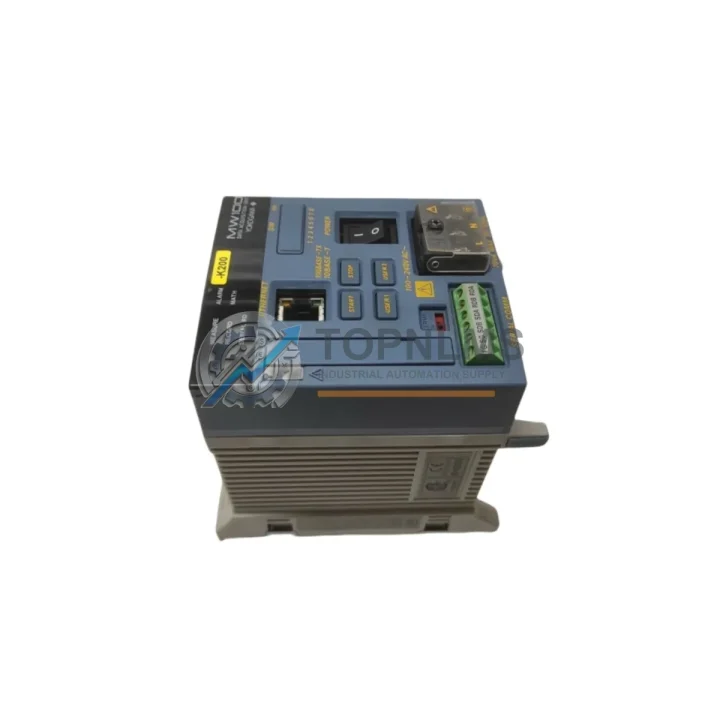

YOKOGAWA MW100-E-1H Original Industrial Spare MW100 Compatible

Product Overview

YOKOGAWA MW100-E-1H Original Industrial Spare: System Stability and Maintenance Value

The YOKOGAWA MW100-E-1H is a single-port Ethernet communication module designed for the MW100 DAQ Station platform — a widely deployed data acquisition and monitoring system used across power generation, chemical processing, oil & gas, and heavy manufacturing facilities. As an original spare part, the MW100-E-1H plays a critical role in maintaining uninterrupted data communication between field instruments and supervisory control systems. When this module fails or degrades, the entire DAQ loop is compromised, leading to blind spots in process monitoring, delayed fault detection, and potential unplanned shutdowns.

Stocking a verified original MW100-E-1H ensures your maintenance team can execute rapid module swaps during scheduled turnarounds or emergency breakdowns — restoring full Ethernet connectivity to the MW100 station within minutes rather than waiting days for procurement. For facilities running legacy MW100 installations, sourcing original spare modules is the most reliable path to extending system life without costly platform migrations.

Critical Technical Specs

Preventive Maintenance Strategy

A proactive maintenance approach for any MW100-based DAQ installation should treat the MW100-E-1H not as a standalone component but as part of an interconnected communication and measurement ecosystem. During scheduled cabinet inspections or annual turnarounds, maintenance engineers should simultaneously evaluate the condition of the MW100 main unit itself, as well as the analog input modules such as the MW100-U-1H universal input module and the MW100-T-1H temperature input module, which are the primary data sources feeding through the Ethernet link this module provides.

Network integrity upstream of the MW100-E-1H is equally important. Industrial-grade Ethernet switches, shielded Cat5e or Cat6 patch cables rated for cabinet environments, and surge protection devices on the network port should all be inspected for wear, corrosion, or loose terminations. A degraded cable or failing switch port can mimic symptoms of a faulty MW100-E-1H, making systematic inspection of the full communication path essential before condemning the module.

Power quality to the MW100 main unit directly affects module reliability. Inspecting the 24VDC power supply module feeding the MW100 rack, along with its associated terminal blocks and wiring, is a recommended concurrent task. Facilities that operate multiple MW100 stations across a plant should also review the condition of their MW100-C-1H RS-232C communication modules and MW100-P-1H pulse input modules if installed, as these share the same backplane environment and are subject to the same thermal and vibration stresses.

For plants running YOKOGAWA CENTUM VP or ProSafe-RS systems in parallel with MW100 DAQ stations, it is advisable to cross-check the health of associated Vnet/IP communication cards and field control station (FCS) I/O modules during the same maintenance window. Coordinating spare parts procurement across these related systems — including relay output modules, signal isolators, and fuse terminal blocks within the same control cabinet — reduces the number of separate procurement events and ensures comprehensive coverage during a single planned outage.

Strategic Replacement Solutions

The MW100-E-1H is a direct plug-in replacement for failed or end-of-life Ethernet communication modules within any MW100 main unit. Because the MW100 platform uses a modular slot architecture, replacement requires no rewiring of field instruments — the module is removed and reinserted in the same slot, and communication parameters are restored via the MW100’s onboard configuration interface or the associated PC software.

For facilities that have been unable to source original MW100-E-1H modules through standard distribution channels due to product discontinuation or long lead times, TOPNLMS maintains verified original stock that has been functionally tested prior to shipment. This eliminates the risk of receiving counterfeit or refurbished modules that may pass initial power-on tests but fail under sustained industrial operating conditions.

Replacing a degraded MW100-E-1H before complete failure — rather than waiting for a communication fault alarm — is the most effective strategy for avoiding unplanned downtime. Facilities with critical monitoring loops dependent on MW100 data should consider maintaining at least one spare MW100-E-1H on-site, particularly where the MW100 station monitors safety-critical parameters such as temperature excursions, pressure trends, or environmental compliance data.

Support FAQ

Q1: Is the MW100-E-1H still in production, and how long can I expect to source spares?
The MW100 platform has reached mature lifecycle status. While YOKOGAWA continues to support the platform, original module availability through standard channels is increasingly constrained. TOPNLMS sources and stocks verified original MW100-E-1H modules to support facilities that need to extend MW100 system life without platform migration. We recommend procuring at least one spare unit now to avoid critical shortages during future maintenance windows.

Q2: How do I verify compatibility before installation?
The MW100-E-1H is compatible with all MW100 main unit variants. Compatibility is confirmed by the module slot type and the MW100 firmware version. Our technical team can assist with compatibility verification based on your main unit model and firmware revision prior to shipment.

Q3: What testing is performed before shipment?
Each MW100-E-1H unit undergoes functional power-on testing and communication interface verification before dispatch. Units are shipped in anti-static packaging with inspection documentation. A 12-month warranty covers any defects in materials or workmanship from the date of receipt.

Q4: What is the lead time and shipping arrangement?
In-stock units are dispatched within 1–3 business days. We ship worldwide via DHL, FedEx, and UPS with full tracking. Express options are available for urgent maintenance requirements. Contact us at [email protected] or +86 18359293191 to confirm stock availability and arrange shipment.
