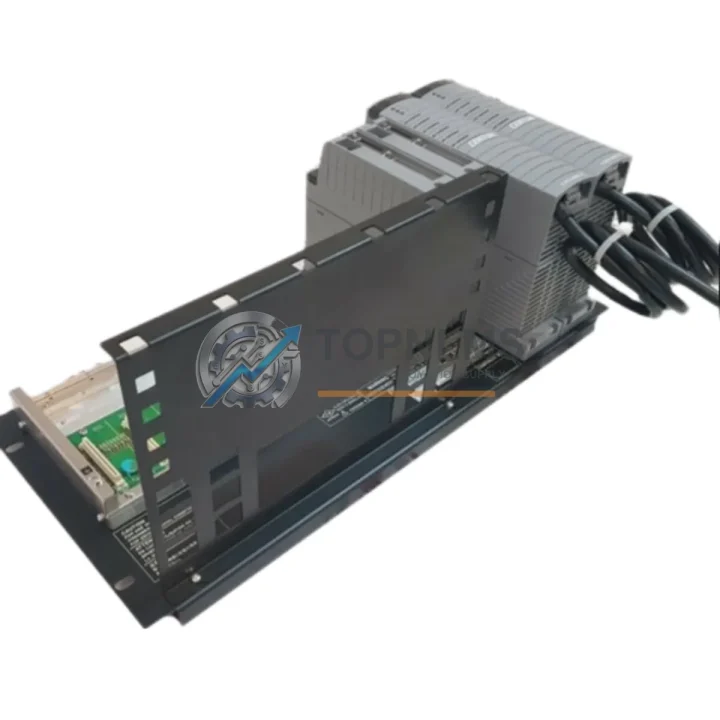

YOKOGAWA PW482-11 Replacement Power Supply CENTUM VP CS 3000

Product Overview

YOKOGAWA PW482-11 Replacement Power Supply CENTUM VP CS 3000: Smooth Migration & Legacy System Upgrade

The YOKOGAWA PW482-11 is a critical 24 VDC power supply module designed for the CENTUM VP and CENTUM CS 3000 Distributed Control System (DCS) platforms. As aging CS 3000 installations approach end-of-life and CENTUM VP sites expand or require spare-part replenishment, sourcing a verified, drop-in-compatible PW482-11 replacement is one of the most time-sensitive procurement decisions a plant engineer or maintenance manager will face. TOPNLMS maintains ready stock of the PW482-11 to support both emergency breakdowns and planned migration projects, with same-week dispatch from our Xiamen warehouse and 12-month warranty coverage on every unit.

Whether you are executing a like-for-like swap of a failed power supply in an existing CENTUM CS 3000 cabinet, or consolidating redundant power rails during a phased migration to CENTUM VP R6, the PW482-11 slots directly into the standard YOKOGAWA field control station (FCS) chassis without mechanical modification. The module accepts the same 100–240 VAC input range and delivers a regulated 24 VDC output to the control bus, maintaining full compatibility with the ACM11, ACM12, and ACM22 communication modules already installed in your rack. No firmware changes, no re-parameterization of the ESB bus, and no rewiring of the field terminal assemblies are required for a direct replacement.

For sites running a hybrid architecture — where legacy CENTUM CS 3000 field control stations communicate upstream to a CENTUM VP human interface station (HIS) via Vnet/IP — the PW482-11 sustains the power integrity of the FCS node without interrupting the Vnet/IP ring topology. Engineers who have already upgraded their operator stations to CENTUM VP R6 but retained CS 3000 FCS hardware in the field will find the PW482-11 indispensable for maintaining uptime during the multi-year transition window.

In practice, a PW482-11 replacement project typically proceeds as follows. The maintenance team isolates the affected FCS node during a scheduled maintenance window, removes the failed or degraded power supply from the front-access slot, and inserts the new PW482-11. Because the module uses the same DIN-rail-compatible form factor and the same 24-pin backplane connector as its predecessor, physical installation takes under fifteen minutes. The ESB bus self-initializes on power-up, and the CENTUM VP or CS 3000 system builder software — running on the engineering workstation (EWS) — automatically recognizes the restored node without requiring a project download. This zero-download swap characteristic is particularly valuable in continuous-process industries such as oil refining, petrochemicals, and pulp and paper, where even a brief controller outage carries significant production cost.

Beyond the power supply itself, a complete migration or upgrade engagement often involves several companion components. The ALR111 and ALR121 alarm modules share the same FCS chassis and draw regulated power from the PW482-11 bus, so verifying their condition during a power supply replacement is standard practice. Similarly, the AMN11 and AMN21 node interface modules, which manage I/O bus arbitration within the FCS, should be inspected for capacitor aging if the cabinet has been in service for more than ten years. On the I/O side, AAI141 and AAI143 analog input modules, as well as AAI841 analog output modules, are common co-replacement items when a power supply failure has caused transient voltage stress across the backplane. For sites that rely on HART pass-through for field device diagnostics, the AHB10S HART interface module should also be confirmed operational after the power supply swap.

Communication continuity is another key consideration. The ACM11 Vnet/IP communication module and the ACM12 ESB communication module both depend on stable 24 VDC supply from the PW482-11. A degraded power supply that delivers marginal voltage can cause intermittent ACM dropouts that are misdiagnosed as network faults. Replacing the PW482-11 proactively — rather than reactively — eliminates this failure mode and restores deterministic Vnet/IP latency across the control network. For plants that are simultaneously upgrading their historian or MES integration, the stable power baseline provided by a new PW482-11 also supports the addition of the YOKOGAWA Exaopc OPC server interface without risk of bus instability.

Physical space and cabinet layout are rarely a concern with the PW482-11, as YOKOGAWA designed the CENTUM power supply family to maintain a consistent footprint across CS 3000 and CENTUM VP generations. The module occupies a single slot in the standard FCS chassis and does not require additional clearance for airflow beyond what the existing cabinet ventilation already provides. For greenfield CENTUM VP installations that are being built alongside a legacy CS 3000 system, the PW482-11 can be used in both platforms simultaneously, simplifying spare-parts inventory management and reducing the total number of line items a procurement team must track.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful CENTUM VP or CS 3000 power supply migration rarely involves a single component in isolation. During a PW482-11 replacement, experienced system integrators typically audit the entire FCS chassis and address adjacent wear items in the same maintenance window to maximize the return on planned downtime. The ACM11 Vnet/IP communication module and ACM12 ESB communication module are the most frequent co-replacement candidates, as they share the same power rail and accumulate similar operational hours. On the I/O side, AAI141 analog input modules and AAI841 analog output modules are commonly refreshed at the same time, particularly if the site is transitioning from CS 3000 I/O wiring conventions to CENTUM VP terminal assembly standards. For plants that use HART-enabled field instruments, the AHB10S HART interface module should be verified for firmware compatibility with the current CENTUM VP R6 system builder version. Cabinet-level upgrades may also include the replacement of the AMN11 node interface module and a review of the ESB bus termination resistors. Where the migration scope extends to the operator interface layer, the YOKOGAWA FAST/TOOLS or Exaopc OPC DA/UA server software running on the engineering workstation (EWS) should be validated against the restored FCS node to confirm tag synchronization and alarm historization continuity. Taken together, these components form a coherent upgrade bill of materials that minimizes re-entry into the cabinet and reduces cumulative downtime across the migration project.

Retrofit Guidance FAQ

Q: Does replacing the PW482-11 require rewiring field terminals?
A: No. The PW482-11 connects exclusively to the FCS backplane via the 24-pin ESB bus connector. Field wiring terminates on the I/O terminal assemblies, which are independent of the power supply slot. No field wiring changes are required.

Q: Will the CENTUM VP or CS 3000 system require a project download after the swap?
A: No project download is needed. The FCS node self-initializes on power-up and re-joins the Vnet/IP ring automatically. The system builder on the EWS will show the node as online within approximately 60 seconds of power restoration.

Q: Is the PW482-11 compatible with both redundant and non-redundant FCS configurations?
A: Yes. The PW482-11 supports both simplex and redundant power supply configurations. In a redundant setup, the standby module continues to supply the bus during the hot-swap of the primary unit, enabling zero-downtime replacement in supported chassis.

Q: What communication protocols does the PW482-11 support?
A: The PW482-11 is a power supply module and does not itself implement a communication protocol. It provides the regulated 24 VDC supply that enables the ACM11 (Vnet/IP) and ACM12 (ESB) communication modules to operate. All existing protocol configurations remain unchanged after replacement.

Q: Can the PW482-11 be used in a CENTUM VP R6 chassis that was originally built for CS 3000?
A: Yes, provided the chassis hardware revision is compatible with CENTUM VP R6. YOKOGAWA’s CENTUM VP migration guide confirms that the PW482-11 power supply family is forward-compatible across the CS 3000 to CENTUM VP R6 upgrade path.

Q: How should the module be tested before installation in a live system?
A: TOPNLMS performs a pre-shipment functional test on every PW482-11 unit, verifying output voltage regulation, inrush current limiting, and backplane connector integrity. Customers may additionally bench-test the module using a CENTUM-compatible test chassis before installation in the production cabinet.

Warranty Assurance

Every YOKOGAWA PW482-11 shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Our pre-shipment inspection protocol includes output voltage verification, load regulation testing, and visual inspection of the backplane connector and housing. Units that do not meet YOKOGAWA’s published electrical specifications are quarantined and not dispatched.

In the event of a warranty claim, TOPNLMS provides a replacement unit dispatch within 3 business days of fault confirmation, minimizing the impact on your production schedule. Our after-sales engineering team is available via email and phone to assist with installation verification, fault diagnosis, and compatibility questions throughout the warranty period. For urgent breakdown situations, expedited shipping options are available to most destinations in Asia, Europe, and the Americas.

Procurement teams can request a formal quotation, certificate of conformance, or packing list in advance of purchase order issuance. We support standard B2B payment terms and can provide documentation compatible with SAP MM, Oracle Procurement, and other ERP purchasing workflows.
