Yokogawa PW101 S3 Replacement Solution for CENTUM CS3000

Product Overview

Yokogawa PW101 S3 Replacement Solution for CENTUM CS3000: Smooth Migration & Legacy System Upgrade

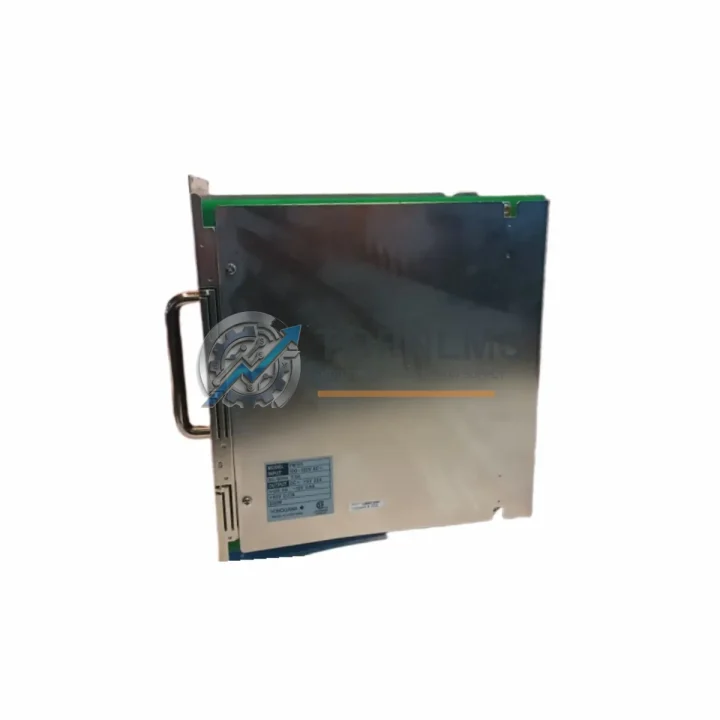

The Yokogawa PW101 S3 is a DC Power Supply Module engineered for the CENTUM CS3000 Field Control Station (FCS) platform. As aging CS3000 installations approach end-of-life or face discontinued spare-part availability, plant engineers and procurement teams increasingly require a verified, drop-in replacement that preserves existing wiring infrastructure, rack geometry, and control-system architecture without forcing a full DCS overhaul.

TOPNLMS supplies the PW101 S3 as a direct replacement module, fully tested prior to shipment, with a 12-month warranty. Whether you are executing a planned preventive maintenance swap, responding to an unplanned power-supply failure, or building a strategic spare-parts inventory for a multi-year site reliability program, the PW101 S3 is available for immediate dispatch from our Xiamen warehouse.

Compatibility Comparison Table

Seamless Upgrade Solutions

A power-supply replacement rarely occurs in isolation. During a CENTUM CS3000 modernization or emergency repair, field engineers typically audit the entire FCS node and surrounding cabinet. The PW101 S3 is most commonly deployed alongside the Yokogawa AFV10D or AFV20D Field Control Unit, which serves as the central processor node drawing regulated DC power from this module. Where redundant power is required, a second PW101 S3 is installed in the paired power slot to maintain N+1 availability — a configuration strongly recommended for continuous-process industries such as refining, petrochemicals, and power generation.

On the I/O side, the CS3000 FCS typically hosts a combination of AAI141 analog input modules, AAI543 analog output modules, and ADV151 digital input modules mounted in the same field control unit rack. These I/O modules share the same 24 V DC bus supplied by the PW101 S3, making power-supply integrity critical to the entire I/O subsystem. When replacing the power module, it is best practice to simultaneously inspect the AMN11 node interface module and the AIP588 I/O bus cable for signs of aging or connector wear.

For sites migrating from an older CENTUM CS or CENTUM-XL architecture toward CS3000, the PW101 S3 is part of the standard power infrastructure in the new FCS racks. The migration typically also involves replacing legacy RIO (Remote I/O) bus couplers with ESB bus-compatible modules, and updating the HIS (Human Interface Station) engineering workstation software to CS3000 R3 or later. In such projects, the power supply is one of the first components to be standardized, as it underpins the stability of every downstream control and I/O function.

Communication-intensive nodes that include ACF11 or ACF12 communication modules for Modbus, FOUNDATION Fieldbus, or HART integration also depend on stable DC power from the PW101 S3. Unstable or aging power supplies are a leading cause of intermittent communication faults on these fieldbus segments, making a proactive PW101 S3 replacement a cost-effective first diagnostic step before replacing more expensive communication modules.

For cabinet-level upgrades, the PW101 S3 is often paired with a replacement Yokogawa UPS unit or external DC buffer to ensure ride-through during brief AC supply interruptions — a common requirement in offshore platforms and remote substations where grid quality is variable.

Retrofit Guidance FAQ

Q: Do I need to rewire the cabinet when replacing the PW101 S3?
No. The PW101 S3 uses the same terminal block pinout as earlier suffix revisions. The module slides into the existing power slot and connects to the same AC input terminals. No rewiring, no new cable trays, and no changes to the field wiring are required.

Q: Will replacing the power supply affect my running FCS program or configuration?
The PW101 S3 is a hardware-only module with no embedded firmware or configuration data. Your FCS application program, tag database, and tuning parameters reside in the AFV-series Field Control Unit, not in the power supply. A hot-swap or cold-swap replacement of the PW101 S3 does not alter any control logic. Standard CS3000 shutdown and restart procedures apply.

Q: Is the PW101 S3 compatible with both redundant and non-redundant FCS configurations?
Yes. In non-redundant nodes, a single PW101 S3 occupies the primary power slot. In redundant configurations, two PW101 S3 modules are installed — one in each power slot — providing automatic failover. Both configurations use identical modules; no hardware differentiation is required.

Q: What communication protocols are affected by the power supply?
The PW101 S3 itself is protocol-agnostic. However, it powers all modules in the FCS rack, including those handling Vnet/IP, ESB bus, FOUNDATION Fieldbus (FF-H1), HART, and Modbus RTU communications. A stable, within-spec power supply is a prerequisite for reliable protocol operation across all these interfaces.

Q: How much physical space does the PW101 S3 require?
The module occupies a single dedicated power slot in the standard CS3000 FCS rack. No additional DIN rail space, no external mounting bracket, and no cabinet modification are required. The unit weighs approximately 2.6 kg and fits within the existing rack envelope.

Q: Can I use the PW101 S3 as a long-term spare?
Yes. TOPNLMS recommends holding at least one PW101 S3 as a cold spare for each FCS node in your plant. Proper storage in a dry, temperature-controlled environment (per Yokogawa storage guidelines) ensures the module remains serviceable for multi-year storage periods. Each unit shipped by TOPNLMS is individually tested and packaged for long-term storage compatibility.

Warranty Assurance

Every PW101 S3 supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a multi-point functional test including output voltage verification, load regulation check, and visual inspection for connector integrity and component condition. Units that do not meet specification are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund, subject to inspection of the returned module. Our after-sales response target is within 24 hours of a warranty inquiry being received. Replacement units for confirmed warranty cases are prioritized for next-available shipment from our Xiamen inventory.

For procurement teams requiring documentation, TOPNLMS can provide a test report, packing list, and commercial invoice with each shipment. Export from China (Xiamen) is handled under standard HS code classification for industrial electronic control modules, with full customs documentation provided to facilitate smooth import clearance in your destination country.

Bulk orders and long-term supply agreements for plant-wide spare-parts programs are supported. Contact our sales team to discuss volume pricing, lead-time commitments, and consignment stock arrangements.
