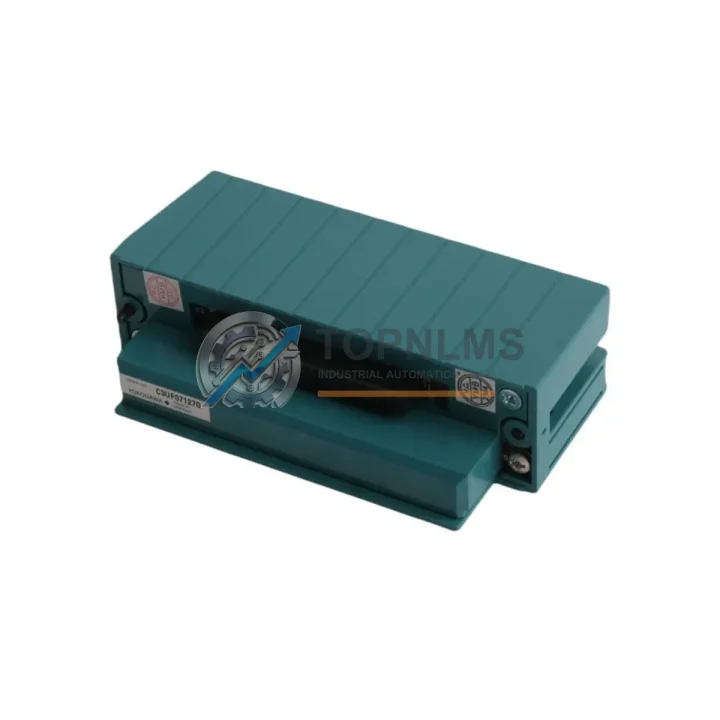

YOKOGAWA NFTI3S-00 S2 Ruggedized Field Terminal Block

Product Overview

YOKOGAWA NFTI3S-00 S2 Ruggedized Field Terminal Block: Industrial Resilience for Harsh Environments

The YOKOGAWA NFTI3S-00 S2 is a high-integrity field terminal block engineered for the CENTUM VP distributed control system — one of the most trusted DCS platforms deployed across critical process industries worldwide. Designed to operate continuously in demanding industrial environments, this terminal block delivers the signal integrity, mechanical robustness, and long-term reliability that process engineers and maintenance teams depend on when uptime is non-negotiable.

In environments characterized by elevated temperatures, high humidity, airborne particulates, persistent vibration, and electromagnetic interference — such as oil refineries, chemical processing plants, offshore platforms, and metallurgical facilities — the NFTI3S-00 S2 maintains stable field-to-controller signal paths without degradation. Its ruggedized terminal architecture ensures that analog and digital I/O signals from field instruments reach the CENTUM VP controller modules with full fidelity, even under continuous mechanical stress and thermal cycling.

As a core interconnect component within the CENTUM VP field control station, the NFTI3S-00 S2 interfaces directly with YOKOGAWA’s FCS (Field Control Station) I/O modules, including analog input cards, digital input/output cards, and pulse input modules. It provides the physical termination layer between field wiring and the control system backplane, making it an indispensable element of any CENTUM VP cabinet assembly. When paired with YOKOGAWA’s ANB10D or ANB10S node interface units, the terminal block ensures seamless signal routing across multi-node DCS architectures.

The NFTI3S-00 S2 is fully compatible with YOKOGAWA CENTUM VP R5 and R6 system configurations. It supports integration alongside the AFV10D Vnet/IP communication module, enabling high-speed, deterministic data exchange across the plant network. In safety-instrumented system (SIS) applications, this terminal block can be deployed adjacent to YOKOGAWA ProSafe-RS safety controllers, maintaining the physical separation and signal integrity required by IEC 61511 functional safety standards.

For control cabinet builders and system integrators, the NFTI3S-00 S2 simplifies field wiring termination while maintaining the compact form factor required in high-density marshalling cabinets. It is routinely specified alongside YOKOGAWA’s KFCS2 field control stations, ESB bus interface modules, and multi-point control units in large-scale DCS expansions. Its screw-terminal design accommodates standard field cable gauges and supports loop-powered 4–20 mA transmitter circuits, RTD inputs, and discrete contact signals without additional signal conditioning hardware.

In power generation facilities, water treatment plants, and pulp and paper mills — where continuous production lines cannot tolerate unplanned shutdowns — the NFTI3S-00 S2 serves as a critical spare and direct replacement component. Maintenance teams managing aging CENTUM VP installations rely on genuine YOKOGAWA terminal blocks to preserve system certification and avoid compatibility issues that arise from third-party substitutions. Stocking this module as a certified spare reduces mean time to repair (MTTR) and supports planned preventive maintenance schedules.

Beyond its role as a passive termination device, the NFTI3S-00 S2 contributes to overall system EMC performance. Its grounded terminal rail design provides a low-impedance reference path that suppresses common-mode noise induced by variable frequency drives, high-voltage switchgear, and other EMI sources common in heavy industrial environments. This shielding effectiveness is particularly valuable in facilities where YOKOGAWA CENTUM VP controllers share cabinet space with Siemens SIMATIC S7 PLCs, Schneider Electric Modicon M580 systems, or Allen-Bradley ControlLogix controllers in hybrid automation architectures.

Rugged Specifications Table

Comprehensive Protection Solutions

The NFTI3S-00 S2 is most effective when deployed as part of a complete CENTUM VP field control architecture. In a typical FCS cabinet, it works in concert with the YOKOGAWA AFV10D Vnet/IP interface module, which handles high-speed plant-wide communication, and the ANB10D node interface unit, which aggregates I/O data from multiple terminal blocks before forwarding it to the controller. For power distribution within the cabinet, YOKOGAWA’s PW481 and PW482 power supply modules provide the regulated 24 VDC required by field instruments and I/O cards, ensuring that voltage fluctuations on the plant power bus do not propagate into the control system.

In safety-critical loops, the NFTI3S-00 S2 is frequently installed alongside YOKOGAWA ProSafe-RS SIL 2/3 safety I/O modules, where it provides the physical termination for emergency shutdown (ESD) and fire-and-gas (F&G) detection circuits. For process measurement, it terminates signals from YOKOGAWA EJA-series differential pressure transmitters and YTA-series temperature transmitters, both of which are widely deployed in CENTUM VP process control loops. Where HART communication is required for smart field device diagnostics, the terminal block’s wiring architecture supports HART pass-through without signal attenuation.

In hybrid control environments, the NFTI3S-00 S2 marshalling cabinets are often installed adjacent to Siemens ET 200SP distributed I/O stations or Rockwell Automation 1756-IB16 digital input modules, with inter-system communication handled via PROFIBUS DP or Modbus TCP gateways. This cross-platform compatibility makes the NFTI3S-00 S2 a versatile termination solution for brownfield modernization projects where legacy CENTUM CS 3000 wiring infrastructure is being migrated to CENTUM VP without full cabinet replacement.

Application in Critical Infrastructure

The YOKOGAWA NFTI3S-00 S2 is deployed across the full spectrum of process-critical industries. In upstream and midstream oil and gas operations — including wellhead control panels, pipeline SCADA systems, and LNG liquefaction trains — it provides the reliable field termination required for continuous, unattended operation in remote and hazardous locations. Offshore platform installations subject the terminal block to salt-laden air, constant vibration from rotating machinery, and wide ambient temperature swings; the NFTI3S-00 S2’s robust construction and corrosion-resistant terminal materials ensure long service life under these conditions.

In thermal and hydroelectric power generation, CENTUM VP systems equipped with NFTI3S-00 S2 terminal blocks manage boiler combustion control, turbine governor loops, and generator excitation systems — applications where a single wiring fault can trigger a unit trip and cost hundreds of thousands of dollars in lost generation revenue. Water and wastewater treatment facilities rely on CENTUM VP DCS platforms for continuous monitoring of chemical dosing, filtration, and effluent quality; the NFTI3S-00 S2 ensures that sensor signals from pH analyzers, flow meters, and level transmitters reach the controller without interruption.

In metallurgical and mining operations — blast furnaces, electric arc furnaces, and ore processing circuits — the terminal block must withstand intense electromagnetic fields generated by high-current smelting equipment, as well as the mechanical shock and vibration inherent in crushing and grinding operations. The NFTI3S-00 S2’s grounded rail design and robust screw-terminal clamping force maintain connection integrity even under these extreme conditions, making it the preferred termination solution for YOKOGAWA CENTUM VP installations in heavy industry.
