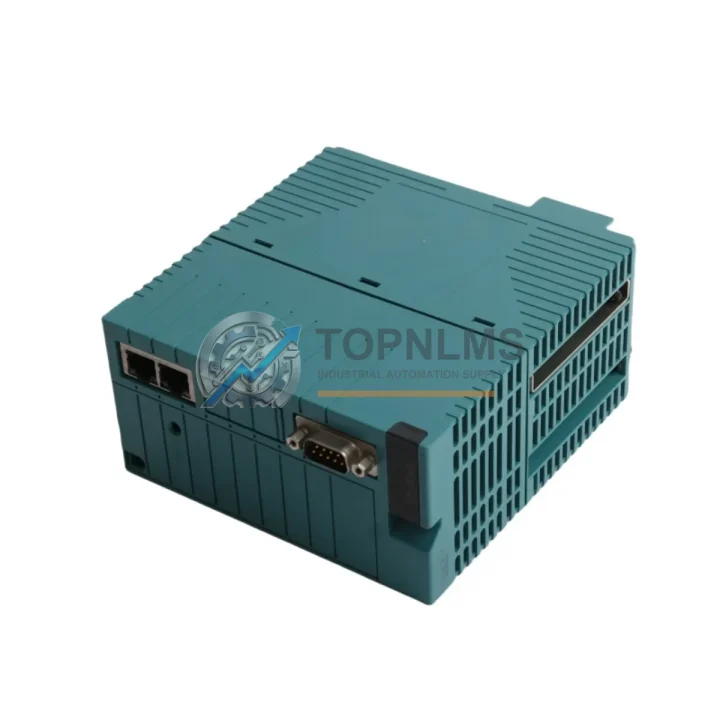

Yokogawa NFCP501-W16 S1 Ruggedized DCS CPU Module: Industrial Resilience for Harsh Environments

The Yokogawa NFCP501-W16 S1 is a high-reliability Field Control Station (FCS) CPU module engineered for the CENTUM VP Distributed Control System (DCS) platform. Designed to operate continuously in the most demanding industrial environments — including high-temperature process areas, high-humidity coastal facilities, dust-laden mining sites, vibration-intensive heavy manufacturing floors, and zones with severe electromagnetic interference — this module delivers the processing stability and fault tolerance that mission-critical automation demands.

As the central processing unit of the CENTUM VP FCS, the NFCP501-W16 S1 executes real-time control logic, manages I/O communication, and maintains deterministic scan cycles even under abnormal process conditions. Its ruggedized design ensures that control continuity is preserved whether the module is deployed in an oil refinery, a chemical plant, a power generation facility, or a water treatment station operating around the clock.

Rugged Specifications Table

Comprehensive Protection Solutions

The NFCP501-W16 S1 does not operate in isolation — it is the command core of a tightly integrated CENTUM VP control architecture. In a typical FCS cabinet, the CPU module works in concert with Yokogawa NF9PW power supply modules to maintain stable 24 VDC bus voltage even during grid fluctuations common in heavy industrial sites. Analog input signals from field transmitters are conditioned through NFAI143-S00 analog input modules, while discrete field devices connect via NFDI141-S00 digital input modules — all communicating with the NFCP501-W16 S1 over the internal I/O bus at deterministic scan rates.

For process outputs, NFAO141-S00 analog output modules and NFDO141-S00 digital output modules translate the CPU’s control decisions into precise actuator commands — whether driving control valves in a refinery distillation column or managing pump start/stop sequences in a water treatment plant. In safety-instrumented applications, the NFCP501-W16 S1 FCS node is often deployed alongside Yokogawa ProSafe-RS Safety Instrumented System (SIS) controllers, with the two systems exchanging process data over the Vnet/IP network to maintain SIL-rated process protection without compromising DCS throughput.

Communication integrity across the plant network is maintained through Yokogawa NFCP701 communication modules and managed industrial Ethernet switches, ensuring that the FCS node remains synchronized with the CENTUM VP HIS (Human Interface Station) operator consoles and the plant historian. In facilities where legacy field devices use HART or FOUNDATION Fieldbus protocols, Yokogawa NFFB401 Fieldbus communication modules bridge the gap, allowing the NFCP501-W16 S1 to supervise both modern and legacy instrumentation within a unified control strategy.

For cabinet-level protection, the NFCP501-W16 S1 is typically housed alongside Yokogawa terminal blocks and marshalling panels, with surge protection devices and EMI filters installed at the cabinet entry points to shield the CPU from transient voltages and conducted interference — a critical consideration in substations, motor control centers, and variable-frequency drive (VFD) environments where electrical noise is endemic.

Application in Critical Infrastructure

The NFCP501-W16 S1 has a proven deployment record across the most demanding sectors of critical infrastructure:

Oil & Gas Upstream and Midstream: In offshore platforms and onshore gas processing terminals, the NFCP501-W16 S1 manages wellhead control, separator sequencing, and compressor automation. Its dual-redundant CPU capability ensures that a single module failure does not interrupt production — a non-negotiable requirement where unplanned shutdowns cost tens of thousands of dollars per hour. The module’s tolerance for salt-laden, high-humidity marine atmospheres makes it a preferred choice for offshore CENTUM VP installations.

Petrochemical and Refining: Continuous catalytic cracking units, distillation columns, and heat exchanger networks demand sub-second control response and zero tolerance for spurious trips. The NFCP501-W16 S1 executes advanced process control (APC) strategies with the determinism required to maintain product quality and energy efficiency across 24/7 operations. Its compatibility with Yokogawa’s CENTUM VP batch management and sequence control functions makes it equally effective in specialty chemical batch reactors.

Power Generation: In coal-fired, gas turbine, and combined-cycle power plants, the NFCP501-W16 S1 supervises boiler combustion control, turbine governor interfaces, and balance-of-plant automation. Its EMI hardening is particularly valuable in generator halls where high-voltage switching events create intense electromagnetic transients that can corrupt less robust control hardware.

Water and Wastewater Treatment: Municipal water authorities and industrial effluent treatment facilities rely on the NFCP501-W16 S1 for dosing control, filtration sequencing, and pump station automation. The module’s wide humidity tolerance and resistance to airborne chemical vapors — common in chlorination and biological treatment areas — extend its service life well beyond that of commercial-grade alternatives.

Metallurgy and Mining: In electric arc furnace control, rolling mill automation, and mineral processing plants, the NFCP501-W16 S1 withstands the extreme vibration, dust ingress, and thermal cycling that characterize these environments. Its role in coordinating I/O-intensive process loops — managing hundreds of analog and digital signals simultaneously — makes it indispensable in large-scale metallurgical operations where control system reliability directly determines throughput and yield.
