YOKOGAWA SR1220E2 Original Industrial Spare STARDOM FCN/FCJ Compatible

Product Overview

YOKOGAWA SR1220E2 Original Industrial Spare STARDOM FCN/FCJ Compatible: System Stability & Industrial Spare Maintenance Value

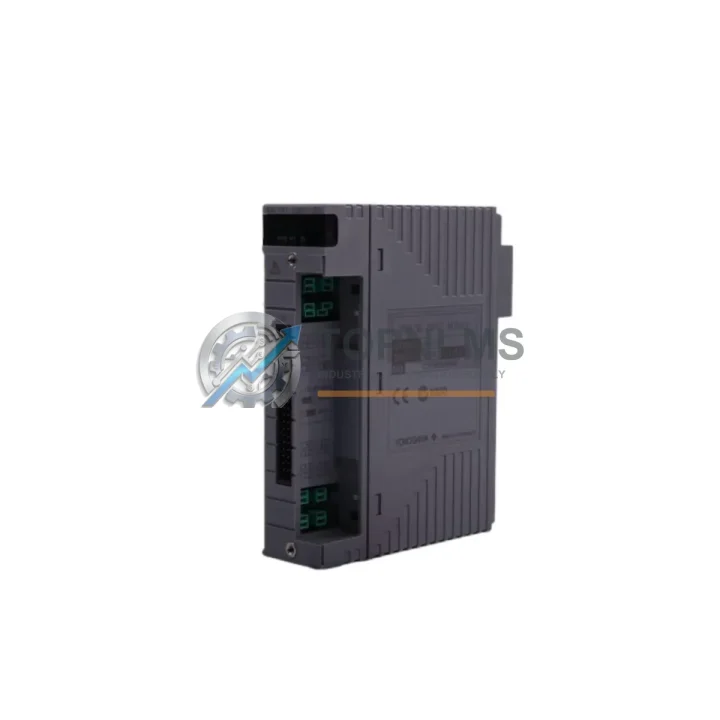

The YOKOGAWA SR1220E2 is an original autonomous controller CPU module engineered for the STARDOM FCN/FCJ distributed control platform. In process industries — oil & gas, chemical, power generation, water treatment, and advanced manufacturing — the SR1220E2 serves as the computational core of field control nodes, executing real-time logic, managing I/O communication, and maintaining deterministic process control even under network disruption. Sourcing a verified original SR1220E2 spare is one of the highest-leverage decisions a maintenance team can make to protect system uptime and extend the operational life of an existing STARDOM installation.

Unlike generic replacements, the SR1220E2 retains full firmware compatibility with the STARDOM FCN/FCJ architecture, preserving existing ladder logic, function block programs, and communication configurations without re-engineering. For facilities running legacy STARDOM nodes that are no longer in active production by the OEM, maintaining a certified original spare in the storeroom is the most cost-effective strategy to avoid emergency procurement delays that can stretch into weeks.

Critical Technical Specs

Preventive Maintenance Strategy

A scheduled maintenance window for a STARDOM FCN/FCJ control node should never be limited to the CPU module alone. The SR1220E2 operates in close dependency with the surrounding hardware ecosystem, and a failure in any adjacent component can mask or trigger CPU-level faults. During planned shutdowns or annual inspections, maintenance engineers should simultaneously evaluate the FCN power supply module (e.g., F3PU20-0S or equivalent) for output voltage drift and capacitor aging — power instability is a leading cause of premature CPU module failure.

The FCN base unit / chassis should be inspected for backplane connector oxidation and mechanical integrity. Slot contacts that show corrosion or intermittent seating will cause sporadic CPU communication errors that are frequently misdiagnosed as CPU module defects. Alongside the chassis, the Ethernet communication module and any installed RS-232C serial communication cards should be tested for link stability and replaced if packet loss or timeout errors are logged.

For facilities using the STARDOM FCN/FCJ in hybrid DCS configurations, the analog input/output modules (such as the F3AD08-6N or F3DA04-1N series) connected to the same chassis should be calibrated and verified during the same maintenance cycle. Signal drift in AI/AO modules can generate false process alarms that overload the CPU’s interrupt handling, reducing deterministic response performance.

Digital I/O modules — including DC input modules and relay output modules — should be load-tested and inspected for contact wear, particularly in high-cycle applications such as motor starter control or valve actuation. Worn relay contacts in the output module can cause field device misfires that are logged as CPU logic errors.

The terminal blocks and field wiring connectors on the I/O modules deserve particular attention: loose or corroded terminals are a primary source of intermittent field faults. Torque-check all terminal screws and apply contact enhancer where appropriate. If the installation includes signal isolators or signal conditioners between field instruments and the FCN I/O modules, verify isolation resistance and output linearity — degraded isolators introduce noise that can corrupt analog process values read by the CPU.

Where the STARDOM FCN/FCJ node communicates upstream to a YOKOGAWA CENTUM VP or ProSafe-RS safety system, the Vnet/IP or OPC communication interface should be verified for latency and redundancy failover behavior. Communication module firmware should be checked against the latest compatible release. Finally, the UPS or battery backup unit supporting the control cabinet should be load-tested — an SR1220E2 CPU that loses power mid-scan without a clean shutdown can corrupt its internal program memory, requiring a full reload from the engineering workstation.

Strategic Replacement Solutions

The SR1220E2 is a direct drop-in replacement for failed or end-of-life CPU modules within the STARDOM FCN/FCJ platform. Because the module retains the original hardware interface and firmware compatibility, replacement does not require changes to the existing I/O wiring, field device configuration, or PLC program structure. The replacement procedure involves powering down the FCN/FCJ chassis, extracting the failed module, inserting the SR1220E2, restoring power, and downloading the saved application program from the STARDOM engineering tool — a process that experienced maintenance personnel can complete in under two hours, dramatically reducing mean time to repair (MTTR) compared to sourcing a new controller platform.

For facilities managing aging STARDOM installations where OEM support has been reduced or discontinued, maintaining one or two SR1220E2 units in the spare parts inventory is a proven strategy to extend system life by five to ten years without capital investment in a full DCS migration. This approach preserves the existing operator interface, historian connections, and process tuning parameters — all of which represent significant embedded engineering value that would be lost in a platform replacement project.

Each SR1220E2 unit supplied by TOPNLMS is individually tested prior to shipment, verified for firmware integrity, and shipped with protective packaging appropriate for sensitive electronic components. A 12-month quality warranty covers manufacturing defects and functional failures under normal operating conditions, providing procurement teams with the confidence required for critical spare parts decisions.

Support FAQ

Q1: Is the SR1220E2 compatible with both STARDOM FCN and FCJ platforms?
Yes. The SR1220E2 is designed for the STARDOM autonomous controller family and is compatible with both the FCN (rack-mount) and FCJ (compact) form factors. Confirm your chassis model and firmware version with your engineering documentation before installation to ensure full compatibility.

Q2: What testing is performed before shipment?
Each SR1220E2 unit undergoes functional power-on testing and firmware verification before dispatch. Units that do not pass inspection are not shipped. A test report summary is available upon request for quality-critical procurement processes.

Q3: How should the SR1220E2 be stored as a long-term spare?
Store in original anti-static packaging in a dry, temperature-controlled environment (10°C–30°C, relative humidity below 70%, non-condensing). Avoid proximity to strong magnetic fields or high-vibration equipment. Inspect annually for any signs of physical damage or connector oxidation.

Q4: What is covered under the 12-month warranty?
The warranty covers manufacturing defects and functional failures under normal industrial operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, physical impact, or unauthorized modification. Warranty claims are processed via email with photographic documentation of the defect.
