YOKOGAWA MX100-E-1F Original Spare DARWIN Compatible

Product Overview

YOKOGAWA MX100-E-1F Original Spare DARWIN Compatible: Sustaining System Stability in Industrial Data Acquisition

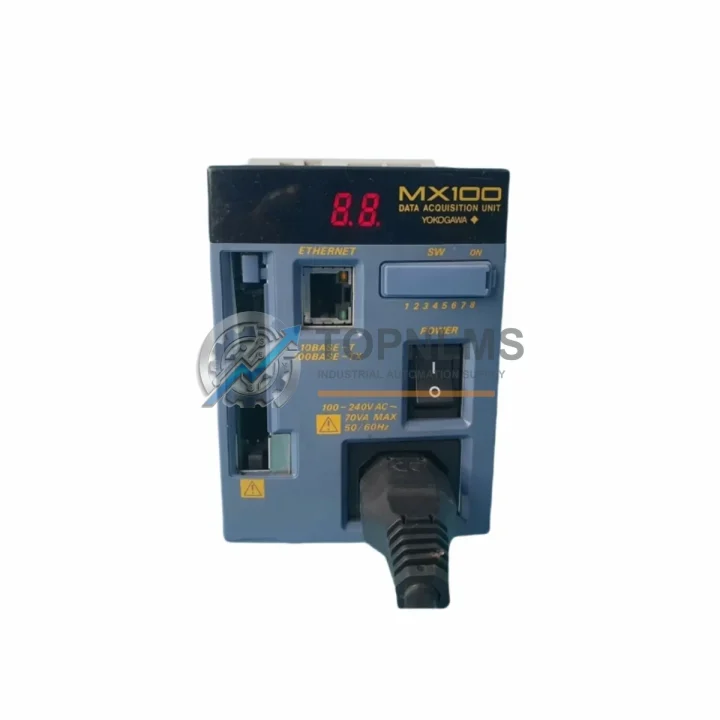

The YOKOGAWA MX100-E-1F is the Ethernet-based main module of the DARWIN MX100 modular data acquisition system — a platform widely deployed across power generation, chemical processing, oil & gas, pharmaceutical manufacturing, and heavy industrial environments. As a critical node in continuous process monitoring architectures, the MX100-E-1F handles real-time data collection, Ethernet communication, and synchronization across distributed I/O sub-modules. When this unit fails or degrades, the consequences extend beyond a single measurement point: entire monitoring loops, historian feeds, and alarm management systems can be compromised. Maintaining a verified original spare of the MX100-E-1F is therefore not a luxury — it is a fundamental pillar of industrial maintenance strategy.

TOPNLMS supplies the YOKOGAWA MX100-E-1F as a genuine original spare, fully tested prior to shipment, and backed by a 12-month warranty. Each unit is verified for firmware compatibility, Ethernet port integrity, and module bus communication before dispatch. Whether you are managing a planned shutdown, responding to an unplanned fault, or building a strategic spare parts inventory for long-term system continuity, the MX100-E-1F available from TOPNLMS is ready to ship globally with competitive lead times.

Critical Technical Specs Table

Preventive Maintenance Strategy

A disciplined preventive maintenance program for DARWIN MX100-based monitoring systems extends well beyond the main Ethernet module. During scheduled shutdowns or annual inspections, maintenance engineers should treat the MX100-E-1F replacement as the trigger for a broader system health review. The sub-modules connected to the main unit — including the MX110-V10 universal input sub-module and the MX112-V10 high-speed voltage input sub-module — should be inspected for contact oxidation, terminal block integrity, and calibration drift. These sub-modules share the same module bus as the MX100-E-1F and are subject to the same thermal cycling and vibration stresses in industrial enclosures.

The MX115-V10 strain/voltage sub-module and MX118-V10 digital I/O sub-module are frequently deployed alongside the MX100-E-1F in mixed-signal monitoring panels. When replacing the main controller, it is prudent to verify that all sub-module firmware versions remain compatible with the replacement unit’s firmware baseline. YOKOGAWA’s DAQSTANDARD configuration software should be used to re-validate channel assignments and alarm thresholds after any main module swap.

Beyond the MX100 sub-modules themselves, the surrounding infrastructure deserves equal attention. The terminal blocks and wiring harnesses connecting field sensors to the MX100 input channels are common sources of intermittent faults that are often misattributed to the main module. Signal isolators — particularly for thermocouple and RTD inputs — should be checked for drift and replaced on a defined lifecycle schedule. In installations where the MX100-E-1F communicates upstream to a YOKOGAWA CENTUM VP DCS or a STARDOM FCN/FCJ controller, the Ethernet switch ports and patch cables serving the DAQ network segment should be inspected and replaced if showing signs of degradation.

For facilities running YOKOGAWA’s broader instrumentation ecosystem, it is also advisable to cross-check the health of associated YOKOGAWA EJA-series pressure transmitters and YTA-series temperature transmitters that feed signals into the MX100 input channels. A failing transmitter can produce erratic readings that stress the DAQ controller’s alarm processing and logging functions, accelerating wear on the main module’s internal flash storage. Proactive transmitter replacement, coordinated with MX100-E-1F maintenance, reduces the risk of cascading faults during critical production periods.

Finally, the power supply feeding the MX100-E-1F should be verified for output voltage stability and ripple. Industrial-grade DIN-rail power supplies in the same control cabinet should be load-tested during the maintenance window. A degraded power supply is one of the leading causes of premature main module failure in DARWIN MX100 installations, and replacing it proactively during the same maintenance cycle eliminates a common repeat-failure scenario.

Strategic Replacement Solutions

The MX100-E-1F is a direct plug-in replacement for any existing DARWIN MX100 Ethernet main module installation. Because the MX100 platform uses a standardized module bus architecture, the replacement procedure does not require rewiring of field inputs — all sub-modules remain in place, and the new main module inherits the existing channel configuration once the DAQSTANDARD project file is reloaded. This makes the MX100-E-1F one of the most maintenance-friendly replacements in the YOKOGAWA DAQ product line.

For sites where the original MX100-E-1F has reached end-of-service life or where the unit was damaged by a power surge or environmental ingress, TOPNLMS recommends maintaining at least one cold-standby spare in the local maintenance store. Given the MX100 platform’s widespread deployment across long-lifecycle industries such as power generation and petrochemicals, the risk of extended lead times from the OEM makes local spare stock a critical risk mitigation measure. TOPNLMS maintains ready inventory of the MX100-E-1F to support both emergency replacement and planned maintenance procurement cycles.

In cases where the existing MX100-E-1F installation is being consolidated into a newer YOKOGAWA monitoring architecture — such as migration toward the YOKOGAWA MW100 or integration with a CENTUM VP historian — the MX100-E-1F can continue to serve as a reliable data collection node during the transition period, reducing the pressure to execute a full system cutover under time constraints. This hybrid operation capability makes the original spare a strategic asset, not merely a reactive purchase.

Support FAQ

Q1: How long is the warranty on the MX100-E-1F supplied by TOPNLMS?
All MX100-E-1F units supplied by TOPNLMS carry a 12-month warranty covering manufacturing defects, functional failure under normal operating conditions, and DOA (dead-on-arrival) replacement. Each unit undergoes functional testing — including Ethernet communication verification and module bus integrity checks — before shipment. If a unit fails within the warranty period, TOPNLMS provides a replacement or full refund based on the fault assessment.

Q2: Is the TOPNLMS MX100-E-1F compatible with my existing DARWIN MX100 sub-modules?
Yes. The MX100-E-1F supplied by TOPNLMS is a genuine original YOKOGAWA unit and is fully compatible with all DARWIN MX100 series sub-modules, including the MX110, MX112, MX115, MX118, MX120, and MX125 variants. No hardware modifications are required. After installation, reload your existing DAQSTANDARD project file to restore channel configurations and alarm settings.

Q3: What is the recommended spare parts strategy for MX100-based monitoring systems?
For systems with 3 or more MX100 units in service, TOPNLMS recommends maintaining a minimum of one MX100-E-1F cold-standby spare per site. For critical monitoring applications — such as turbine condition monitoring or reactor temperature logging — a hot-standby configuration with a pre-configured spare is advisable. Sub-modules with high channel utilization (MX110, MX112) should also be stocked at a ratio of one spare per four active units.

Q4: How quickly can TOPNLMS ship the MX100-E-1F for emergency maintenance?
TOPNLMS maintains ready stock of the MX100-E-1F and can dispatch emergency orders within 24–48 hours of order confirmation. International shipments are handled via DHL Express, FedEx International Priority, or equivalent carriers, with typical transit times of 3–7 business days to most industrial regions. For time-critical shutdowns, contact TOPNLMS directly at [email protected] or +86 18359293191 to confirm stock availability and arrange priority dispatch.
