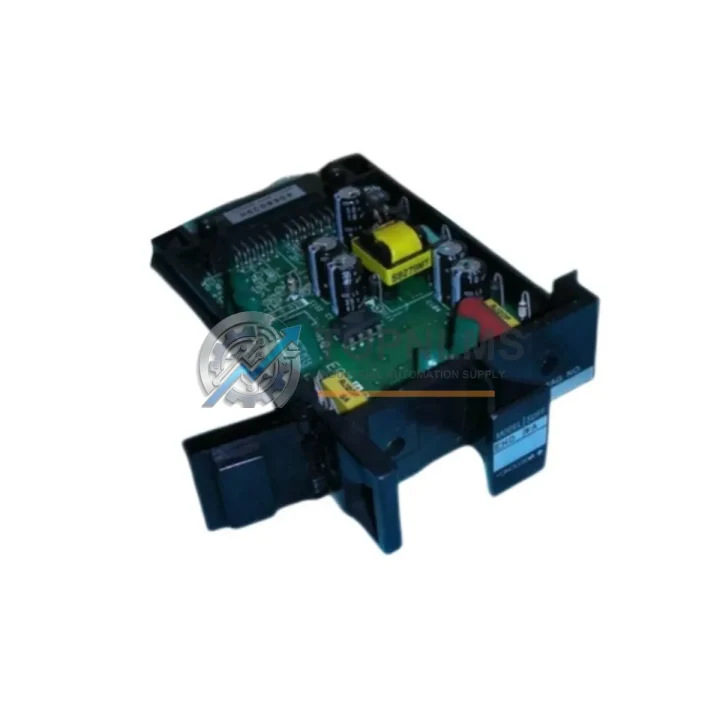

YOKOGAWA EH0*A Original Industrial Spare CENTUM Compatible

Product Overview

YOKOGAWA EH0*A Original Industrial Spare — CENTUM DCS System Stability & Reliable Output Isolation

The YOKOGAWA EH0*A Output Isolator Card is a critical original spare component designed for CENTUM CS, CS3000, and VP distributed control systems. In process industries where continuous operation is non-negotiable — refining, petrochemical, power generation, and pharmaceutical manufacturing — the integrity of every analog output channel directly determines plant safety and production efficiency. Sourcing a genuine EH0*A replacement ensures your DCS maintains its original signal fidelity, galvanic isolation performance, and loop integrity without requiring any software reconfiguration or hardware adaptation.

Critical Technical Specs

Preventive Maintenance Strategy

When scheduling a planned shutdown or responding to an unplanned trip on a CENTUM CS3000 or VP field control station, the EH0*A output isolator card is rarely the only component that warrants inspection. Experienced maintenance engineers know that analog output degradation is often symptomatic of broader I/O nest or power distribution issues. During the same maintenance window, it is best practice to inspect the AAI141-S or AAI143-S analog input modules sharing the same I/O nest, as cross-channel interference from a failing isolator can corrupt upstream readings.

The AMM12W or AMM22W analog output modules installed in adjacent slots should be bench-tested alongside the EH0*A, since they share the same backplane power rail. A degraded PW481 or PW482 power supply module is a common root cause of intermittent isolator faults — replacing the EH0*A without verifying power supply ripple voltage is a frequent maintenance oversight that leads to repeat failures within weeks.

For control cabinets running CENTUM VP R6 or later, the FCN-RTU node unit and its associated ESB bus coupler card should be checked for firmware version compatibility whenever an I/O card is replaced. Communication errors between the FCS and the engineering workstation after a card swap are often traced back to an ESB coupler that requires a firmware refresh rather than a hardware fault.

Terminal blocks and field wiring connections at the TB series marshalling terminals should be re-torqued and inspected for oxidation during the same visit. Loose or corroded terminals at the marshalling cabinet are a leading cause of 4–20 mA signal drift that is incorrectly attributed to the isolator card itself. Similarly, signal cables connecting the I/O nest to the marshalling panel — particularly multi-pair shielded cables in high-EMI environments — should be continuity-tested to rule out insulation breakdown.

If the plant runs a hybrid architecture combining CENTUM VP with third-party PLCs via FOUNDATION Fieldbus or PROFIBUS-DP communication modules, those gateway cards should be included in the inspection checklist. A failing output isolator on the YOKOGAWA side can generate spurious process values that trigger nuisance alarms on the connected PLC network, complicating fault isolation. Keeping a stocked spare of the ALF111 FOUNDATION Fieldbus communication card alongside the EH0*A is a sound inventory strategy for plants running hybrid DCS-PLC architectures.

Strategic Replacement Solutions

The EH0*A was introduced as part of the CENTUM CS generation and carries forward full backward compatibility into CENTUM CS3000 and CENTUM VP platforms. This cross-generation compatibility is one of YOKOGAWA’s key design commitments, meaning plants that have operated CENTUM systems for 15–25 years can replace aging EH0*A cards without any engineering change order for the control application software. There is no need to re-download the FCS database or reconfigure loop parameters — the replacement card is recognized automatically upon insertion into the I/O nest.

For facilities managing end-of-life CENTUM CS installations where full system migration is not yet budgeted, maintaining a strategic stock of EH0*A cards extends the operational life of the existing control infrastructure by 5–10 years at a fraction of the cost of a full DCS upgrade. This approach — often called life extension or brownfield maintenance — is widely adopted in refinery and chemical plant environments where process continuity outweighs the capital expenditure of a greenfield migration.

Each EH0*A unit supplied by TOPNLMS undergoes pre-shipment functional testing covering output linearity, isolation resistance, and channel-to-channel crosstalk. Units are shipped in anti-static packaging with individual test records. A 12-month warranty covers all electrical defects from the date of shipment, with direct technical support available for installation and commissioning queries.

Support FAQ

Q1: Is the EH0*A compatible with both CENTUM CS3000 R3 and CENTUM VP R6 systems?
Yes. The EH0*A output isolator card is designed for cross-generation compatibility across CENTUM CS, CS3000 (all revisions), and CENTUM VP (R5 and R6). No hardware or software modification is required when installing the card in any of these platforms.

Q2: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers all manufacturing defects and electrical failures under normal operating conditions. To initiate a claim, contact TOPNLMS with the shipment invoice number and a description of the fault. Defective units are replaced or refunded within the warranty period after inspection.

Q3: How should the EH0*A be tested before installation in a live control system?
Before hot-swapping into a live FCS nest, verify the replacement card’s isolation resistance using a standard megohmmeter (500 VDC test voltage, minimum 100 MΩ). Confirm the card firmware label matches the installed system revision. TOPNLMS provides a pre-shipment test record with each unit to facilitate incoming inspection.

Q4: What is the recommended spare inventory quantity for a plant running multiple CENTUM FCS cabinets?
For plants with 3–5 CENTUM FCS cabinets, maintaining 2–3 EH0*A units in bonded stores is standard practice. For larger installations (6+ cabinets), a minimum of 5 units is recommended to cover simultaneous multi-cabinet maintenance windows and unplanned emergency replacements without waiting for international shipping lead times.
