YOKOGAWA MRI-234*B Replacement/Upgrade Solution for MRI Series

Product Overview

YOKOGAWA MRI-234*B Replacement/Upgrade Solution for MRI Series: Smooth Transition from Legacy DCS to Modern Control Architecture

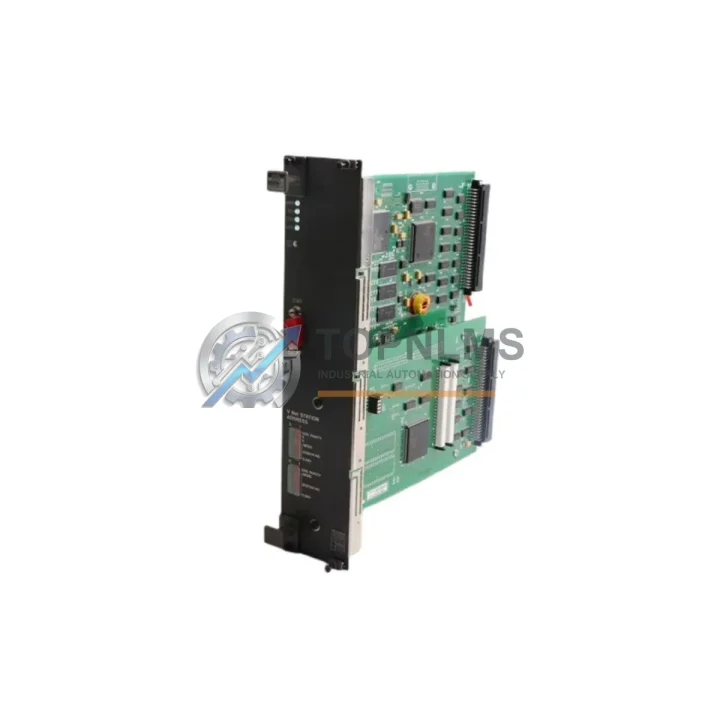

The YOKOGAWA MRI-234*B is a critical power supply module within the YOKOGAWA CENTUM series Distributed Control System (DCS) platform. As industrial facilities worldwide face the challenge of maintaining aging control infrastructure, the MRI-234*B has become one of the most sought-after replacement and upgrade components for engineers managing legacy CENTUM CS, CENTUM CS 1000, and CENTUM CS 3000 systems. Whether your facility is executing a full DCS migration or simply replacing a failed or end-of-life power supply module, the MRI-234*B offers a direct, wiring-compatible, and protocol-transparent upgrade path that minimizes engineering rework and plant downtime.

In many brownfield retrofit projects, the power supply module is the first component to degrade due to continuous operation under high thermal and electrical load. The MRI-234*B is engineered to deliver stable DC power to field control stations (FCS), I/O modules, and communication buses within the CENTUM rack architecture. Its compatibility with the standard YOKOGAWA node unit backplane means that replacement requires no rack modification, no rewiring of field terminals, and no changes to the existing power distribution layout — a decisive advantage when minimizing production interruption is the top priority.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful MRI-234*B replacement is rarely a standalone action. In practice, field engineers executing a CENTUM DCS power supply upgrade will simultaneously evaluate the condition of adjacent modules sharing the same rack and power bus. The MRI-233*B redundant power supply module is commonly replaced in tandem with the MRI-234*B to restore full N+1 redundancy to the power subsystem — a configuration strongly recommended for continuous-process industries such as petrochemical, refining, and power generation.

Within the same field control station, the ACM11 and ACM12 node unit controller modules are frequently assessed during a power supply replacement outage. Since the FCS is already offline for the module swap, many maintenance teams take the opportunity to inspect or replace the AMN11 and AMN21 node unit modules, which manage I/O bus communication between the controller and field I/O cards. Replacing these modules during the same maintenance window eliminates a second planned shutdown.

On the I/O side, the AAI141 analog input module and AAI841 analog I/O module are standard components in CENTUM CS 3000 and CENTUM VP field control stations. When a power supply failure has caused transient voltage events, these analog modules should be tested for calibration drift before the system is returned to service. Similarly, the ADV151 digital input module and ADV551 digital output module should be verified for correct logic state after power restoration.

For facilities upgrading from CENTUM CS to CENTUM VP, the VF701 Vnet/IP communication module is a key migration component. The MRI-234*B is compatible with both legacy Vnet and modern Vnet/IP architectures, making it a bridge component that supports phased migration strategies — allowing the power infrastructure to be modernized before the communication layer is upgraded. A BCV060 bus converter may also be required in mixed-generation rack configurations to ensure signal integrity across the backplane.

Finally, for sites where the CENTUM DCS interfaces with third-party SCADA systems or safety instrumented systems (SIS), the ALR111 alarm module and dedicated SCP451 safety controller should be included in the pre-replacement system audit to confirm that power supply restoration does not trigger spurious alarms or SIS trips during commissioning.

Retrofit Guidance FAQ

Q: Can I replace the MRI-234*B without shutting down the entire FCS?
A: In non-redundant power configurations, the FCS must be taken offline. In redundant configurations with a healthy MRI-233*B installed, a hot-swap may be possible depending on the CENTUM revision — consult your site’s maintenance procedures and YOKOGAWA documentation before attempting live replacement.

Q: Do I need to reconfigure any parameters after installing the MRI-234*B?
A: No software or parameter changes are required. The MRI-234*B is a hardware-transparent replacement. The FCS will recognize the module automatically upon power-up without any engineering station intervention.

Q: Is the MRI-234*B compatible with CENTUM VP?
A: Compatibility with CENTUM VP depends on the specific node unit generation and slot assignment. Please provide your FCS model and rack configuration when inquiring, and our technical team will confirm compatibility before shipment.

Q: What communication protocols does the MRI-234*B support?
A: The MRI-234*B is a power supply module and does not directly handle communication protocols. It provides regulated DC power to modules that communicate via Vnet, Vnet/IP, or FOUNDATION Fieldbus H1 — all of which remain unaffected by the power supply replacement.

Q: How do I verify the module is functioning correctly after installation?
A: After installation, check the module’s LED status indicators for normal operation. Use the CENTUM engineering station to confirm FCS health status and verify that all I/O modules report normal power status. No special commissioning tools are required.

Warranty Assurance

Every YOKOGAWA MRI-234*B shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes functional verification including power output stability testing, connector integrity inspection, and visual quality control. Units that do not meet our acceptance criteria are quarantined and not offered for sale.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response target is 24 hours for initial acknowledgment and 72 hours for resolution proposal. We maintain stock of common CENTUM DCS modules to support rapid exchange without extended lead times.

For procurement teams, we provide a commercial invoice, packing list, and test report upon request. Export documentation for international shipments from Xiamen, China is prepared in compliance with applicable customs regulations. Typical dispatch time is 1–3 business days from order confirmation.

For technical pre-sales consultation, compatibility verification, or bulk procurement inquiries, contact our team directly.
