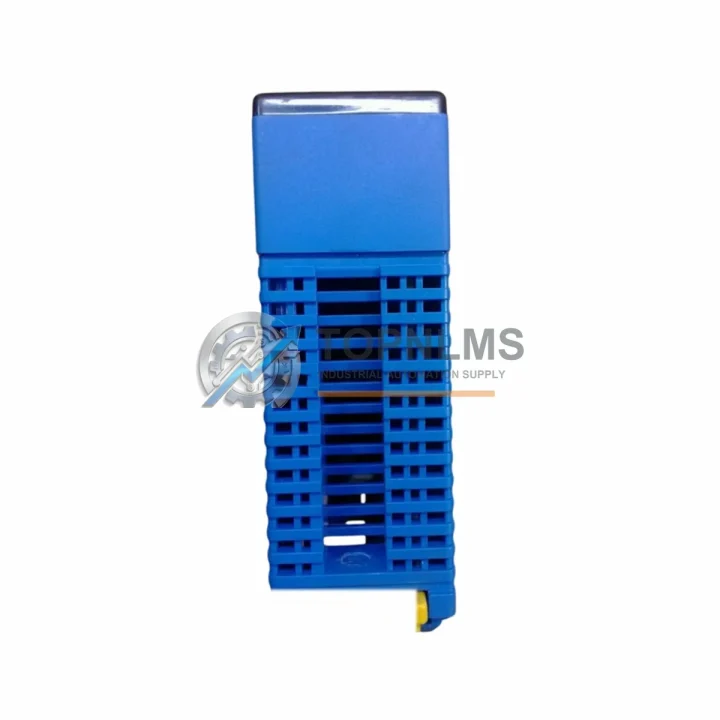

YOKOGAWA F3LX02-1N Original Industrial Spare FA-M3 Compatible

Product Overview

YOKOGAWA F3LX02-1N Original Industrial Spare FA-M3 Compatible: System Stability & Industrial Spare Parts Maintenance Value

In modern industrial automation environments, the reliability of every module within a PLC or DCS control cabinet directly determines the uptime of the entire production line. The YOKOGAWA F3LX02-1N is an original interface module designed for the FA-M3 Series programmable controller platform — a widely deployed control architecture found across process industries, utilities, and discrete manufacturing facilities worldwide. Maintaining a verified spare of the F3LX02-1N is not merely a procurement decision; it is a strategic commitment to system continuity, reduced mean time to repair (MTTR), and long-term operational resilience.

When a control system experiences an unexpected module failure, every minute of downtime translates directly into production loss, safety risk, and maintenance cost escalation. Having the F3LX02-1N pre-positioned in your spare parts inventory eliminates the lead time uncertainty that often extends unplanned outages from hours into days. This module serves as a critical communication and signal interface layer within the FA-M3 rack architecture, bridging field I/O signals with the central CPU and ensuring deterministic data exchange across the control loop.

Critical Technical Specs Table

Preventive Maintenance Strategy

A structured preventive maintenance (PM) program for FA-M3-based control systems should treat the F3LX02-1N not in isolation, but as one node within an interconnected ecosystem of modules and field devices. During scheduled cabinet inspections — typically performed quarterly or semi-annually — maintenance engineers should simultaneously evaluate the condition and firmware status of adjacent components to maximize the value of each planned maintenance window.

When inspecting or replacing the F3LX02-1N interface module, it is best practice to concurrently verify the operational status of the FA-M3 CPU module (such as the F3SP28-3N or F3SP38-6N), which governs the overall scan cycle and program execution. A degraded CPU can mask interface module faults and lead to misdiagnosis. Similarly, the FA-M3 power supply module (e.g., F3PU20-0S or F3PU10-0S) should be load-tested, as voltage ripple or under-voltage conditions are a leading cause of premature module failure across the entire rack.

The FA-M3 digital input/output modules (such as F3XD32-3H for digital inputs and F3YD32-3H for digital outputs) connected to the same base unit should be inspected for terminal corrosion, loose wiring, and LED status anomalies. In high-cycle applications, I/O modules accumulate contact wear faster than interface modules, making them a priority replacement candidate during the same maintenance event. Alongside I/O modules, FA-M3 analog input modules (e.g., F3AD04-1N or F3AD08-1N) used in process variable monitoring should be calibration-checked to ensure signal accuracy has not drifted beyond acceptable tolerances.

For systems utilizing fieldbus or network communication, the FA-M3 communication module (such as F3LE01-5T for Ethernet or F3LC11-1F for PROFIBUS) should be inspected for connector integrity and communication error logs. A failing communication module can intermittently disrupt the data exchange that the F3LX02-1N interface layer depends upon, creating difficult-to-trace system instability. Terminal blocks and wiring harnesses within the control cabinet — particularly those connecting field sensors to I/O modules — should be torque-checked and inspected for insulation degradation, especially in high-temperature or high-vibration environments.

Relay output modules (e.g., F3YR16-1N) used for motor starter or solenoid valve control should be tested for contact resistance and replaced proactively if cycle counts are approaching manufacturer-rated limits. Pairing the F3LX02-1N replacement with a relay module inspection ensures the entire output chain is validated in a single maintenance event. Additionally, signal isolators and surge protection modules installed on analog signal lines should be verified, as these passive protection devices often fail silently and can introduce ground loops or signal noise that degrades system performance over time.

Finally, if the FA-M3 system interfaces with an HMI panel (such as a YOKOGAWA-compatible touch panel or third-party SCADA terminal), the communication cable integrity and HMI firmware version should be confirmed during the same maintenance cycle. A well-maintained HMI ensures that operators have accurate real-time visibility into the control system status, which is essential for rapid fault response when module replacements are performed.

Strategic Replacement Solutions

The F3LX02-1N is a legacy-compatible module that enables facilities running long-lifecycle FA-M3 control systems to extend operational life without undertaking costly full-system migrations. Many industrial plants operate YOKOGAWA FA-M3 platforms that were commissioned 10–20 years ago and remain deeply integrated into process control architectures. Replacing a failed F3LX02-1N with a verified original unit restores full system functionality without requiring CPU reprogramming, I/O remapping, or network reconfiguration — preserving the engineering investment already embedded in the existing control logic.

For facilities managing aging control infrastructure, maintaining a minimum stock of one to two F3LX02-1N units in the on-site spare parts cabinet is a recognized best practice in industrial maintenance management. The cost of a spare module is negligible compared to the production loss incurred during an unplanned outage caused by a failed interface module with a multi-week procurement lead time. Strategic pre-positioning of this spare eliminates that risk entirely.

When transitioning from older FA-M3 configurations to updated rack layouts or expanded I/O architectures, the F3LX02-1N maintains backward compatibility with existing base units, allowing incremental system upgrades without disrupting the installed base. This compatibility advantage makes it a preferred replacement choice for maintenance engineers who need to restore system operation quickly and confidently, without introducing integration risk.
