YOKOGAWA RB301 S2 Replacement for CENTUM CS/CS3000/VP

Product Overview

YOKOGAWA RB301 S2 Replacement for CENTUM CS/CS3000/VP: Seamless DCS Migration & Smooth System Transition

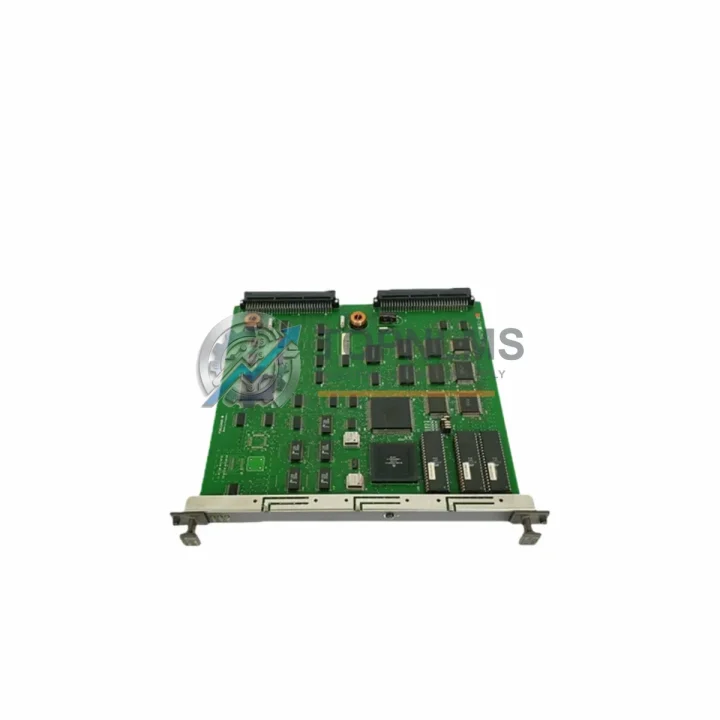

The YOKOGAWA RB301 S2 is a RIO (Remote I/O) Bus Master Card designed for use within the CENTUM CS, CENTUM CS3000, and CENTUM VP Distributed Control System platforms. As YOKOGAWA progressively phases out legacy CENTUM CS and early CS3000 hardware, many process plants, refineries, chemical facilities, and power generation sites are facing the challenge of sourcing verified replacement units to maintain system continuity without committing to a full DCS overhaul. The RB301 S2 serves as a direct drop-in replacement for failed or end-of-life RIO bus master cards, enabling facilities to extend the operational life of their existing CENTUM architecture while planning a structured migration path.

The RB301 S2 occupies a standard slot within the CENTUM field control station (FCS) chassis or node unit, communicating with remote I/O units via the proprietary RIO bus protocol. Its physical form factor, backplane connector pinout, and bus addressing scheme are fully compatible with the original CENTUM CS and CS3000 hardware specifications, meaning no rewiring of field cables, no modification to marshalling panels, and no changes to existing I/O terminal assemblies are required. Engineers performing a card swap can complete the replacement during a scheduled maintenance window with minimal disruption to the running process.

From a software and configuration perspective, the RB301 S2 retains full compatibility with CENTUM CS3000 R3 and later engineering environments, including the System View and Hardware Wizard tools used for FCS configuration. Existing control drawings, function block diagrams, and sequence programs do not require modification. The card’s firmware version and hardware revision are recognized automatically by the FCS upon power-up, eliminating the need for manual parameter re-entry or re-commissioning of connected field instruments.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful RIO bus master card replacement rarely occurs in isolation. During the migration or repair process, engineers typically audit the surrounding hardware to ensure the entire communication chain is reliable. The RB301 S2 works in conjunction with the YOKOGAWA RB401 remote I/O unit, which serves as the slave node on the RIO bus and houses the field I/O terminal boards. If the RB401 unit or its associated I/O modules — such as the AAI141 analog input module or the ADV151 digital input module — show signs of age or intermittent faults, replacing them alongside the RB301 S2 eliminates the risk of a secondary failure shortly after the primary repair.

Power supply integrity is equally critical. The CENTUM FCS relies on redundant power supply modules such as the YOKOGAWA PW481 or PW482 to maintain continuous operation. A failing power supply can cause erratic RIO bus communication errors that are often misdiagnosed as a bus master card fault. Verifying or replacing the power supply module before or during the RB301 S2 swap prevents repeat call-outs and ensures the root cause is properly addressed.

For sites upgrading from CENTUM CS to CENTUM CS3000 or CENTUM VP, the migration may also involve replacing the field control unit processor card — such as the CP345 or CP451 — to gain access to newer function block libraries and improved scan cycle performance. In these cases, the RB301 S2 provides a stable RIO bus interface that bridges legacy remote I/O wiring infrastructure with the upgraded FCS processor, protecting the existing field cable investment while the control strategy is modernized incrementally.

Communication between the FCS and the operator station relies on the YOKOGAWA Vnet/IP or legacy V-net bus, managed through network interface cards such as the CP461 or associated Ethernet gateway modules. Ensuring these communication cards are current and fault-free is an important parallel step when performing any FCS card-level maintenance. Additionally, for sites that use HART pass-through for field device diagnostics, confirming that the AAI835 or similar HART-capable I/O modules are correctly configured ensures that asset management tools remain functional after the RB301 S2 replacement.

Retrofit Guidance FAQ

Q: Does replacing the RB301 S2 require any changes to field wiring or terminal blocks?
A: No. The RB301 S2 is a backplane-mounted card. All field wiring connects to the remote I/O terminal units (RB401 and associated I/O modules), not to the bus master card itself. No field wiring changes are required.

Q: Will existing CENTUM CS3000 control programs need to be re-downloaded after the card swap?
A: In most cases, the FCS will recognize the replacement card automatically and resume normal operation without a full program download. However, it is recommended to perform a controlled download during the maintenance window to confirm configuration integrity, particularly if the replacement card has a different firmware revision.

Q: Is the RB301 S2 compatible with both redundant and non-redundant FCS configurations?
A: Yes. The RB301 S2 supports both simplex and redundant FCS configurations. In a redundant setup, the card should be replaced one side at a time to maintain continuous process control during the swap.

Q: What communication protocol does the RIO bus use, and is it compatible with third-party I/O?
A: The RIO bus uses YOKOGAWA’s proprietary serial communication protocol. It is designed exclusively for YOKOGAWA CENTUM remote I/O units and is not compatible with third-party I/O hardware. All connected RB401 units and I/O modules must be genuine YOKOGAWA components.

Q: How much physical space does the RB301 S2 require in the FCS cabinet?
A: The RB301 S2 occupies a single standard card slot in the CENTUM FCS node unit. No additional space, mounting hardware, or cabinet modification is required. The card slides directly into the existing slot vacated by the failed unit.

Q: Can the RB301 S2 be used as a spare for both CENTUM CS and CENTUM VP systems?
A: Yes. The RB301 S2 is cross-compatible across CENTUM CS, CS3000, and VP platforms, making it an efficient spare to stock for sites operating mixed-generation CENTUM hardware.

Warranty Assurance

Every YOKOGAWA RB301 S2 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a functional inspection to verify card integrity, connector condition, and firmware readability. Units are shipped in anti-static packaging with appropriate cushioning to prevent transit damage.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund based on the confirmed fault assessment. Our technical team is available to assist with installation queries, compatibility verification, and post-installation troubleshooting to minimize your plant downtime. We maintain stock of commonly requested CENTUM series spare parts to support rapid dispatch for urgent breakdown situations.

For bulk procurement, site-wide spare parts audits, or long-term supply agreements for CENTUM CS3000 and VP hardware, please contact our industrial automation team directly. We support procurement teams with documentation including test reports, packing lists, and certificates of conformity as required for plant maintenance records.
