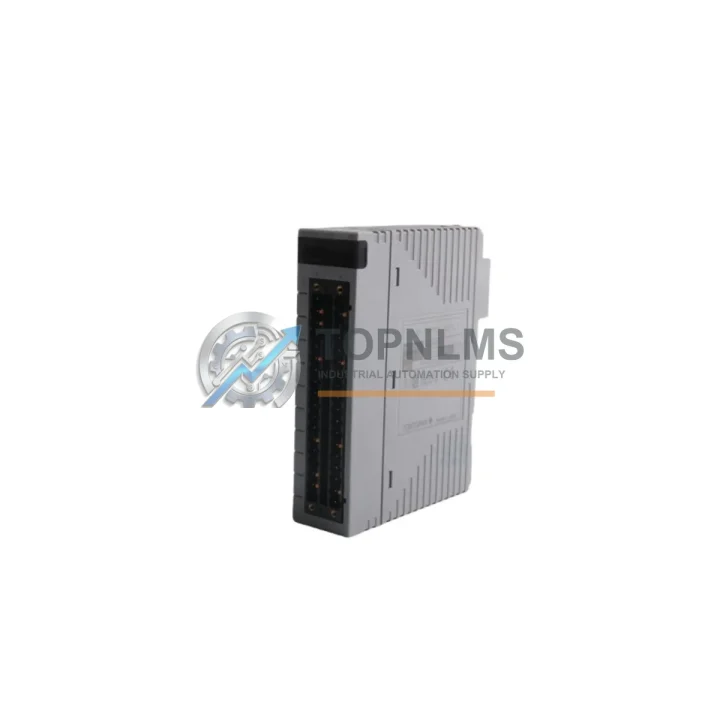

Yokogawa EC401-10 S2 Replacement for CENTUM VP ESB

Product Overview

Yokogawa EC401-10 S2 Replacement/Upgrade Solution for CENTUM VP ESB: Smooth Transition, Zero Compromise

The Yokogawa EC401-10 S2 is an ESB (Extended Serial Backplane) Bus Coupler module designed for use within the CENTUM VP Distributed Control System platform — one of the most widely deployed DCS architectures in the refining, petrochemical, power generation, and continuous process industries. As aging CENTUM CS 3000 and early CENTUM VP installations approach end-of-life or require hardware refresh, the EC401-10 S2 serves as the critical migration bridge, enabling facilities to upgrade their field station bus infrastructure without replacing the entire control system architecture.

TOPNLMS supplies the EC401-10 S2 as a genuine original Yokogawa unit, fully tested prior to dispatch and backed by a 12-month warranty. Each module is shipped in anti-static protective packaging with traceability documentation, ready for immediate installation into existing CENTUM VP field control stations.

Compatibility Comparison Table

Seamless Upgrade Solutions

Migrating from an aging CENTUM CS 3000 field station or an early-revision CENTUM VP node to a current-generation configuration is a structured process that extends well beyond swapping the EC401-10 S2 bus coupler itself. A successful retrofit requires a coordinated review of the entire field control station architecture to ensure that every interconnected component is compatible with the upgraded bus infrastructure.

The ESB bus coupler connects the Field Control Station processor — typically an FCU (Field Control Unit) such as the AFV10D or AFV30D — to the downstream I/O node units via the ESB backplane. During a migration, the FCU firmware version must be verified to confirm compatibility with the S2 revision of the bus coupler. If the existing FCU is running an older firmware baseline, a coordinated firmware update using Yokogawa’s engineering workstation tools should be planned as part of the same maintenance window.

Each ESB node unit connected downstream of the EC401-10 S2 — including analog input modules such as the AAI141-S00, analog output modules such as the AAO141-S00, and digital I/O modules such as the ADV151-P00 — should be inspected for connector integrity and firmware currency during the same retrofit activity. Node unit terminal blocks and field wiring connectors, particularly in installations exceeding 10 years of service, are common sources of intermittent faults that can be misattributed to the bus coupler itself.

The power supply modules feeding the FCS node cabinet — typically Yokogawa PW481 or PW482 series 24VDC power supply units — should be load-tested and inspected for capacitor aging during the same planned outage. A degraded power supply is one of the most frequent root causes of ESB communication errors and spurious bus coupler faults in aging CENTUM VP installations. Replacing the EC401-10 S2 without addressing power supply health risks a repeat fault within months of the retrofit.

For facilities migrating from CENTUM CS 3000 to CENTUM VP, the ESB bus architecture is preserved across both platforms, which significantly simplifies the hardware migration path. However, the engineering database must be migrated using Yokogawa’s CENTUM VP migration tools, and the I/O assignment mapping should be validated against the new FCS configuration before the system is returned to service. The Yokogawa AIP588 engineering workstation software and associated programming cables are essential tools for this validation step.

Where redundant bus coupler configurations are in use — a common practice in safety-critical or high-availability process applications — both the primary and secondary EC401-10 S2 modules should be replaced simultaneously to maintain revision parity and avoid asymmetric firmware behavior. Redundant ESB configurations also require that the inter-module communication cable between the paired bus couplers is inspected and replaced if any physical damage or connector wear is observed.

Signal isolators installed between the CENTUM VP I/O node units and field instruments — particularly in environments with high ground potential differences or significant electromagnetic interference from variable frequency drives — should be tested for calibration drift as part of the migration commissioning process. Replacing the bus coupler without verifying signal chain integrity can result in process variable offsets that are difficult to diagnose after the system is returned to automatic control.

Retrofit Guidance FAQ

Q1: Can the EC401-10 S2 replace an earlier EC401-10 revision without rewiring the field cabinet?
In the vast majority of installations, yes. The EC401-10 S2 uses the same physical form factor, ESB backplane connector, and 24VDC power interface as earlier revisions. No cabinet modification or field wiring changes are required for a direct slot replacement. The only prerequisite is confirming that the connected FCU firmware is at a revision level that supports the S2 bus coupler — this can be verified via the CENTUM VP engineering workstation before the replacement is executed.

Q2: Is the EC401-10 S2 compatible with CENTUM CS 3000 field stations?
The EC401-10 S2 is designed for CENTUM VP field control stations. While the ESB bus architecture is shared between CENTUM CS 3000 and CENTUM VP, direct hardware interchangeability between the two platforms depends on the specific FCS generation and firmware version. For CS 3000 to CENTUM VP migration projects, we recommend providing your existing FCS model number and firmware version to our technical team at [email protected] for a compatibility assessment before ordering.

Q3: How long does a field replacement of the EC401-10 S2 typically take, and does it require a full system shutdown?
In non-redundant configurations, replacement of the EC401-10 S2 requires a planned shutdown of the affected FCS node, which typically takes 30–90 minutes including pre-replacement backup, module swap, post-replacement verification, and return-to-service testing. In redundant bus coupler configurations, it may be possible to replace one module while the redundant path maintains process control, subject to site safety procedures and Yokogawa’s recommended maintenance practices. Always consult your site’s management of change (MOC) process before executing any live-system maintenance.

Q4: What documentation and tools are needed for commissioning after the EC401-10 S2 replacement?
Post-replacement commissioning requires access to the CENTUM VP engineering workstation with the current project database, the AIP588 or equivalent engineering software, and the appropriate USB or serial programming cable for FCU communication. After the module is installed, the FCS should be downloaded and the I/O node communication status verified in the system status display before the process is returned to automatic control. TOPNLMS can supply the EC401-10 S2 with a pre-shipment test report on request — contact [email protected] to include this with your order.

Warranty Assurance

Every EC401-10 S2 supplied by TOPNLMS is covered by a 12-month warranty from the date of dispatch. This warranty covers manufacturing defects and functional failures under normal operating conditions consistent with Yokogawa’s published environmental and electrical specifications for the CENTUM VP platform.

Prior to shipment, each unit undergoes a structured pre-dispatch functional test covering power input tolerance, ESB bus communication initialization, and module self-diagnostic verification. Units that do not pass all test criteria are quarantined and not dispatched. A test record is available on request for quality-assurance documentation purposes.

In the event of a warranty claim, TOPNLMS provides a replacement unit dispatch within 3 business days of claim verification, subject to stock availability. Our after-sales technical team is reachable at [email protected] and by phone at +86 18359293191 for pre-purchase compatibility queries, post-installation technical questions, and warranty claim initiation.

For procurement teams managing multi-site CENTUM VP installations, volume purchasing of EC401-10 S2 units as cold standby spares is available with extended warranty options. Contact us directly for a quotation tailored to your site inventory requirements.
