YOKOGAWA EB401-10 S1 Replacement for CENTUM VP DCS

Product Overview

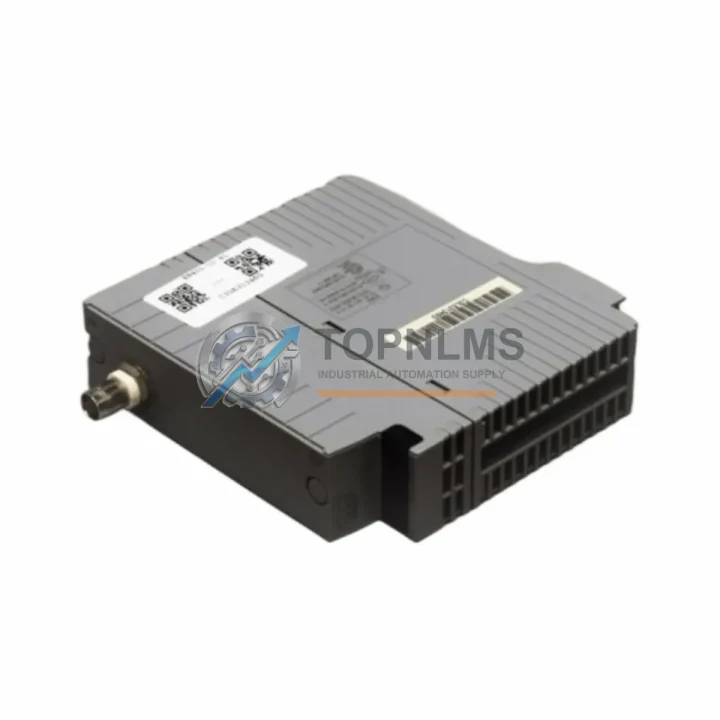

YOKOGAWA EB401-10 S1 Replacement & Upgrade Solution for CENTUM VP DCS

The YOKOGAWA EB401-10 S1 is a Bus Interface Module designed for the CENTUM VP Distributed Control System platform — one of the most widely deployed DCS architectures in the petrochemical, power generation, and process manufacturing industries. As legacy CENTUM CS 3000 and early CENTUM VP installations reach end-of-life, plant engineers and procurement teams are actively seeking verified replacement modules that deliver seamless backward compatibility without requiring full system re-engineering. The EB401-10 S1 serves as a direct drop-in replacement for discontinued or degraded bus interface units within the CENTUM VP field control station (FCS) architecture, enabling facilities to extend operational life while planning a phased migration to newer control platforms.

Each unit supplied by TOPNLMS is sourced from verified industrial channels, subjected to pre-shipment functional testing, and backed by a 12-month warranty. Stock is maintained in Xiamen, China, with express logistics available to minimize plant downtime during emergency replacement scenarios.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful CENTUM VP bus interface replacement rarely involves a single module in isolation. In practice, the EB401-10 S1 is installed as part of a broader FCS node restoration or system modernization effort. During the upgrade process, engineers typically address the surrounding hardware ecosystem to ensure the entire control node operates reliably after the bus interface is replaced.

In many retrofit projects, the EB401-10 S1 is installed alongside the AFV10S or AFV30S Field Control Station node unit, which serves as the primary controller chassis housing the bus interface, I/O modules, and power supply cards. When the bus interface is replaced due to communication faults or hardware degradation, it is common practice to simultaneously inspect the EB501 ESB Bus Master Module, which manages the ESB (Extended Serial Backplane) communication between the FCS and remote I/O nodes. A faulty ESB bus master can produce symptoms that mimic bus interface failures, so both modules are often evaluated together.

On the I/O side, the AAI141-S00 Analog Input Module and AAI841-S00 Analog Output Module are frequently part of the same FCS node being serviced. These modules communicate with the field control station via the ESB bus, and their continued operation depends on a stable, correctly configured bus interface. Similarly, the ADV151-P00 Digital Input Module and ADV551-P00 Digital Output Module are common companions in mixed analog-digital process control nodes, particularly in refinery and chemical plant applications.

For facilities running FOUNDATION Fieldbus or HART-enabled field instruments, the ALF111 FOUNDATION Fieldbus Communication Module is often present in the same FCS rack. Ensuring the EB401-10 S1 bus interface is correctly restored is a prerequisite for stable fieldbus segment communication. In redundant FCS configurations, the EB401-10 S1 works in tandem with its paired redundant unit, and the CP451-10 Pair & Branch Module may also require inspection to confirm redundancy switching integrity after the bus interface replacement.

Finally, for sites performing a broader migration from CENTUM CS 3000 to CENTUM VP, the replacement of the EB401-10 S1 is often the first step in a phased hardware refresh that eventually includes upgrading the FCS power supply unit (PSU) and replacing aging terminal boards and marshalling panels connected to the I/O modules. TOPNLMS maintains stock of multiple CENTUM VP FCS components to support complete node restoration projects, reducing the need for multiple procurement cycles and minimizing total plant downtime.

Retrofit Guidance FAQ

Q: Can I replace the EB401-10 S1 without shutting down the entire FCS node?
A: In a redundant FCS configuration where a standby controller is active, the EB401-10 S1 can typically be replaced with the primary FCS in standby mode, minimizing process interruption. Always verify redundancy status in the CENTUM VP System View before proceeding. In non-redundant configurations, a planned shutdown window is required.

Q: Do I need to re-download the FCS database after replacing the bus interface module?
A: In most cases, no. The EB401-10 S1 does not store the FCS application database. After physical replacement, the FCS will re-initialize communication with the bus interface automatically upon power-up. A database download from the CENTUM VP Engineering Environment (ENG) may be required only if the FCS node was previously in a fault state that corrupted the controller’s runtime configuration.

Q: Is the EB401-10 S1 compatible with both V-net and ER Bus topologies?
A: The EB401-10 S1 is designed for V-net bus connectivity in the CENTUM VP FCS architecture. Compatibility with ER Bus configurations depends on the specific FCS node type and revision. Please confirm your FCS node model (AFV10S or AFV30S) and bus topology before ordering. TOPNLMS technical support can assist with compatibility verification.

Q: What are the physical installation requirements?
A: The EB401-10 S1 occupies the S1 slot in the CENTUM VP FCS node chassis. No additional mounting hardware or DIN rail adapters are required. The module connects directly to the backplane via the standard EB-series edge connector. Ensure the chassis slot is free of debris and that the backplane connector pins are undamaged before insertion.

Q: Can this module be used to migrate from CENTUM CS 3000 to CENTUM VP?
A: The EB401-10 S1 is a CENTUM VP native module and is not directly interchangeable with CS 3000 bus interface hardware. However, it is the correct replacement module when upgrading an existing CENTUM VP node that contains a failed or EOL bus interface unit. For full CS 3000 to CENTUM VP migration projects, a system-level hardware and software migration plan is required, and TOPNLMS can supply the necessary CENTUM VP FCS components to support the transition.

Q: What communication protocols does the EB401-10 S1 support?
A: As a bus interface module within the CENTUM VP FCS, the EB401-10 S1 supports V-net communication (YOKOGAWA’s proprietary high-speed control network), OPC connectivity via the CENTUM VP HIS (Human Interface Station), and FOUNDATION Fieldbus and HART pass-through via the FCS I/O modules. The module itself does not independently terminate Modbus or PROFIBUS connections — those protocols are handled by dedicated communication modules within the FCS node.

Warranty Assurance

Every YOKOGAWA EB401-10 S1 supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Our pre-shipment inspection process includes visual examination, connector integrity verification, and functional bench testing where applicable, ensuring that each unit meets operational standards before it leaves our Xiamen facility.

In the event of a warranty claim, TOPNLMS provides a straightforward replacement process: contact our technical team at [email protected] or +86 18359293191 with your order reference and a description of the fault. Replacement units are dispatched promptly to minimize your plant downtime. We support both advance replacement (ship replacement first, return faulty unit within 30 days) and standard return-and-replace workflows depending on urgency.

Our procurement assurance commitments include: verified sourcing from authorized industrial channels, pre-shipment functional testing, secure export packaging with anti-static protection, accurate customs documentation for international shipments, and responsive after-sales technical support from engineers familiar with YOKOGAWA CENTUM VP system architecture.

For bulk orders, project-based procurement, or emergency replacement requirements, contact TOPNLMS directly to discuss lead times, quantity pricing, and expedited shipping options.
