YOKOGAWA CP401-11 S1 Replacement/Upgrade Solution for CENTUM CS3000

Product Overview

YOKOGAWA CP401-11 S1 Replacement/Upgrade Solution for CENTUM CS3000: Seamless Migration from Legacy DCS Field Controllers

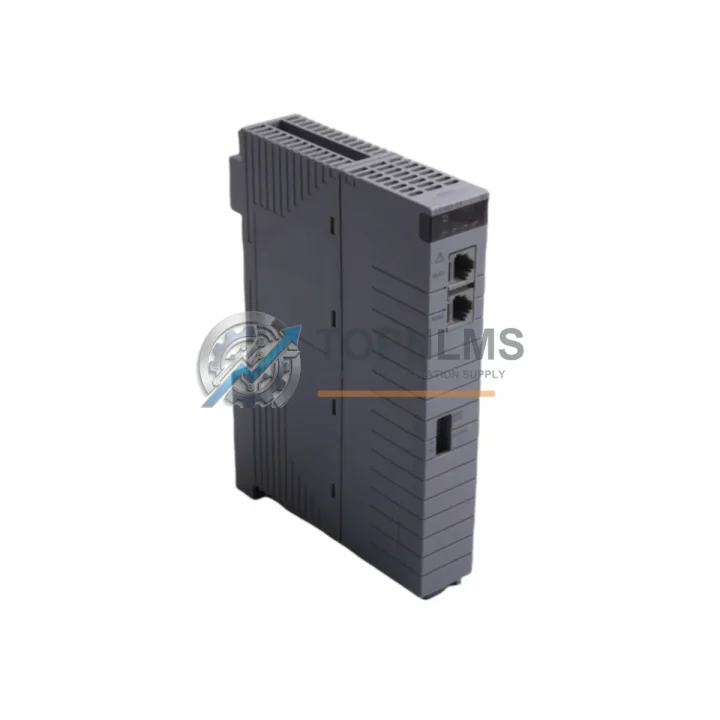

The YOKOGAWA CP401-11 S1 is a field controller CPU module designed for the CENTUM CS3000 Distributed Control System — one of the most widely deployed DCS platforms in the petrochemical, power generation, pulp & paper, and pharmaceutical industries. As YOKOGAWA progressively transitions its installed base toward the CENTUM VP platform, many facilities operating CP401-series field controllers are now facing end-of-life support constraints, spare parts shortages, and the need for a structured migration or replacement strategy.

TOPNLMS maintains verified stock of the CP401-11 S1 to support both direct replacement of failed units and phased migration projects. Whether your plant is executing a like-for-like swap to restore a tripped field controller or planning a controlled upgrade from CENTUM CS3000 to CENTUM VP, this module provides the hardware continuity your operations require.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful CP401-11 S1 replacement or CENTUM CS3000 migration rarely involves a single module in isolation. In practice, field engineers and project teams encounter a chain of interdependent components that must be evaluated together to ensure system continuity and minimize unplanned downtime.

When replacing a failed CP401-11 S1 in a running CS3000 system, the first priority is confirming that the paired redundant CPU — typically a second CP401-11 S1 or CP401-10 — is healthy and that the V-net communication bus connecting the field controller unit (FCU) to the human interface station (HIS) and engineering workstation (EWS) is intact. The V-net optical coupler modules (such as the ACM11 or ACM21) and the node bus interface cards within the FCU rack must be inspected, as degraded optical links are a common root cause of CPU faults that are misdiagnosed as CPU hardware failure.

For facilities running FIO (Field I/O) subsystems connected to the CP401-11 S1, the AAI141-S, AAI841-S analog input modules and ADV151-P digital output modules in the remote I/O nodes should be verified for firmware compatibility with the replacement CPU. In most CS3000 R3.x environments, these FIO modules retain their configuration in non-volatile memory and resume normal operation after a CPU hot-swap, provided the node bus addressing and I/O builder database remain unchanged.

Power supply redundancy is another critical consideration. The PW481 or PW482 dual-redundant power supply modules feeding the FCU rack must be confirmed operational before inserting a replacement CP401-11 S1, as power transients during module insertion can corrupt the CPU’s boot sequence. If the existing power modules are approaching their recommended service interval, proactive replacement alongside the CPU is strongly advised.

For plants undertaking a phased migration from CENTUM CS3000 toward CENTUM VP, the CP401-11 S1 can continue to serve as the field controller during the transition period while the HIS stations are upgraded to CENTUM VP-compatible hardware running the new human interface environment. The Vnet/IP gateway — typically implemented via the BCV11 or equivalent communication bridge — allows CS3000 FCUs to coexist on a mixed-generation network during the migration window, reducing the need for a full cutover outage.

Engineering teams should also account for the programming cable and laptop configuration required to access the CP401-11 S1 for diagnostics or function block download. The CS3000 engineering environment requires a dedicated EWS running a compatible Windows version with the CS3000 Builder software; this workstation connectivity is separate from the Vnet bus and must be maintained throughout the replacement process.

Retrofit Guidance FAQ

Q: Can I hot-swap the CP401-11 S1 without shutting down the process?
A: In a dual-redundant FCU configuration, the standby CPU can be replaced while the primary remains in control. After insertion, the replacement module synchronizes its memory image from the active CPU before taking over. Always confirm redundancy status in the CS3000 system status display before proceeding.

Q: Will my existing FIO wiring and terminal blocks remain compatible?
A: Yes. The CP401-11 S1 interfaces with FIO nodes via the node bus; field wiring terminates at the FIO module terminal blocks (e.g., on AAI141 or ADV151 modules) and is not affected by a CPU replacement. No rewiring is required for a like-for-like swap.

Q: Does the replacement CPU retain the control application (function blocks)?
A: The control application resides in the CS3000 database on the EWS and is downloaded to the CPU. A replacement CP401-11 S1 ships without application data and requires a full database download from the engineering workstation after installation.

Q: What communication protocol does the CP401-11 S1 use for HIS/EWS connectivity?
A: The CP401-11 S1 communicates via YOKOGAWA’s proprietary V-net protocol (coaxial or optical). It does not natively support Ethernet/IP or PROFIBUS; integration with external systems requires a dedicated communication gateway module.

Q: Is the CP401-11 S1 compatible with CENTUM VP racks?
A: No. The CP401-11 S1 is mechanically and electrically specific to the CENTUM CS3000 FCU rack. Migration to CENTUM VP requires new FCU rack hardware and a re-engineered control application.

Warranty Assurance

Every CP401-11 S1 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each module undergoes functional verification including power-on self-test, communication bus interface check, and visual inspection for connector integrity and board condition. Units sourced from decommissioned systems are fully tested and confirmed operational before listing.

In the event of a warranty claim, TOPNLMS provides direct replacement support with priority processing for customers experiencing active production downtime. Our technical team is available to assist with pre-shipment compatibility verification, installation guidance, and post-installation commissioning questions. We understand that DCS field controller failures are time-critical events, and our logistics process is structured to support same-day or next-day dispatch for in-stock units.

For procurement teams requiring documentation, we can provide test reports, shipment photos, and packing lists upon request. All international shipments are handled with appropriate export compliance documentation.
