YOKOGAWA ADM12 S1 Replacement/Upgrade Solution for ADM Series

Product Overview

YOKOGAWA ADM12 S1 Replacement/Upgrade Solution for ADM Series: Seamless Transition from Legacy Servo Systems

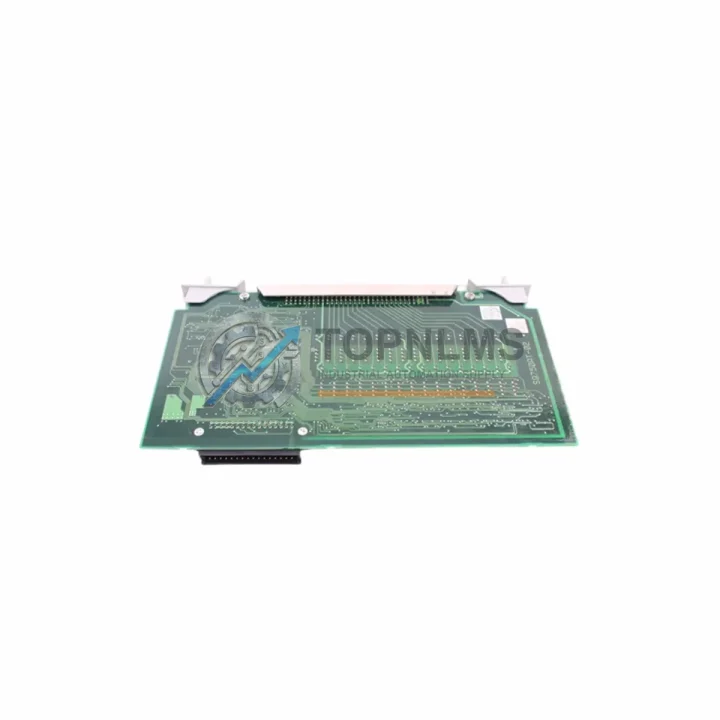

When your existing YOKOGAWA ADM12 S1 Servo Add-On Module reaches end-of-life, becomes obsolete, or fails unexpectedly on the production floor, every hour of unplanned downtime translates directly into lost output and escalating maintenance costs. The ADM12 S1 is a precision servo add-on module designed for integration within YOKOGAWA’s ADM Series control architecture, providing high-resolution position feedback, torque control, and real-time axis synchronization for demanding motion control applications in process automation, packaging lines, semiconductor handling, and precision manufacturing environments.

At TOPNLMS, we specialize in sourcing, testing, and supplying verified replacement and upgrade units for the YOKOGAWA ADM12 S1, enabling your engineering team to execute a smooth, low-risk migration from aging or discontinued servo control hardware without requiring a full system redesign. Our stock is sourced from authorized channels, subjected to functional verification prior to dispatch, and backed by a 12-month replacement warranty — giving procurement teams and plant engineers the confidence to act decisively when a critical module fails.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful ADM12 S1 replacement rarely happens in isolation. In most retrofit and modernization projects, the servo add-on module is one component within a broader YOKOGAWA control system that may include the ADM Series controller base unit, which coordinates axis commands and process interlocks across the entire motion control network. Engineers frequently find that alongside the ADM12 S1, they also need to address the system’s I/O infrastructure — particularly digital input/output modules and analog signal conditioning modules that interface with field sensors, encoders, and actuators.

In installations where the ADM12 S1 communicates upstream with a YOKOGAWA CENTUM VP or ProSafe-RS distributed control system, the communication gateway modules and fieldbus interface cards — such as PROFIBUS-DP or Modbus RTU adapters — must be verified for firmware compatibility before the replacement module is commissioned. Many sites running legacy YOKOGAWA FA-M3 or STARDOM controllers alongside ADM Series servo hardware will also need to confirm that the CPU module firmware version supports the ADM12 S1’s parameter set without requiring a full firmware upgrade cycle.

Power distribution within the control cabinet is another critical consideration. The ADM Series power supply module must be confirmed to deliver stable 24 VDC rail voltage within the tolerance band required by the ADM12 S1 under full servo load. In aging cabinets, it is common to replace the power supply module simultaneously with the servo add-on module to eliminate latent power quality issues that could cause intermittent faults post-installation.

For sites where the ADM12 S1 drives servo axes connected to third-party servo amplifiers or motor drives, the encoder feedback terminal block and signal isolation modules between the ADM12 S1 output and the drive input should be inspected and, where necessary, replaced with compatible signal conditioners to ensure clean differential encoder signals. Additionally, the programming cable and engineering workstation software used to configure the ADM Series system should be confirmed as compatible with the replacement module’s firmware revision before on-site commissioning begins.

Finally, in multi-axis systems, the rack or backplane chassis that houses the ADM12 S1 alongside other ADM Series expansion modules — including additional servo axes, pulse output modules, and high-speed counter modules — should be inspected for backplane connector wear, which is a common failure mode in systems that have undergone multiple module swap cycles over their service life.

Retrofit Guidance FAQ

Q: Do I need to rewire the terminal connections when replacing the ADM12 S1?
A: No. The ADM12 S1 uses the same connector pinout as its predecessor within the ADM Series. All existing field wiring, encoder cables, and I/O connections can remain in place. Simply remove the failed module, insert the replacement, and secure the locking mechanism.

Q: Will my existing YOKOGAWA engineering software project work with the replacement module?
A: In the vast majority of cases, yes. The ADM12 S1 replacement is designed to be firmware-compatible with existing ADM Series project files. We recommend verifying the firmware revision of the replacement unit against your engineering software version before commissioning. Our technical team can advise on any known firmware compatibility constraints.

Q: Is the ADM12 S1 compatible with PROFIBUS-DP or Modbus RTU communication networks?
A: The ADM12 S1 communicates via the YOKOGAWA proprietary backplane bus. Integration with PROFIBUS-DP or Modbus RTU networks is handled by dedicated gateway or communication modules within the ADM Series rack, not by the servo add-on module itself. These gateway modules remain unchanged during an ADM12 S1 swap.

Q: How much physical space does the replacement module require in the control cabinet?
A: The ADM12 S1 replacement occupies the same rack slot as the original module. No cabinet modification, DIN rail adjustment, or additional mounting hardware is required. The module slots directly into the existing ADM Series backplane chassis.

Q: What is the recommended procedure for commissioning the replacement module on-site?
A: Power down the ADM Series rack, remove the failed ADM12 S1, insert the replacement unit, restore power, and perform a parameter upload from your engineering workstation to confirm axis configuration. Run a no-load servo test cycle before reconnecting the mechanical load. Document the module serial number and firmware revision for your maintenance records.

Q: Can the ADM12 S1 replacement be used in a system that has been partially upgraded to newer YOKOGAWA hardware?
A: Yes, provided the backplane chassis and CPU module firmware are compatible with the ADM12 S1 specification. Mixed-generation ADM Series racks are common in phased modernization projects, and the ADM12 S1 is designed to coexist with both legacy and current-generation ADM Series modules.

Warranty Assurance

Every YOKOGAWA ADM12 S1 unit supplied by TOPNLMS is covered by a 12-Month Replacement Warranty from the date of shipment. Prior to dispatch, each module undergoes a functional verification process that includes power-on self-test, communication bus handshake confirmation, and visual inspection for physical damage or component degradation. Units that do not pass our pre-shipment checklist are quarantined and not offered for sale.

In the event of a warranty claim, TOPNLMS will arrange a replacement unit dispatch within 3 business days of claim confirmation, subject to stock availability. Our after-sales response team is reachable via email at [email protected] and by phone at +86 18359293191 during business hours (CST). We maintain a dedicated inventory buffer of high-demand YOKOGAWA ADM Series modules specifically to support rapid warranty replacements and emergency procurement requests.

For B2B procurement teams managing planned maintenance schedules or spare parts programs, TOPNLMS can provide batch quotations, lead time commitments, and certificate of conformance documentation upon request. We ship globally from our Xiamen warehouse, with standard export documentation including commercial invoice, packing list, and country of origin certificate (Japan) available for all shipments.

Our procurement guarantee is straightforward: if the ADM12 S1 unit you receive does not perform as specified within the warranty period, we replace it — no extended RMA process, no ambiguity. This commitment is the foundation of our long-term relationships with plant engineers, MRO procurement managers, and system integrators across the industrial automation sector.
