YASKAWA YPHT31295-1D Original Industrial Spare Sigma Compatible

Product Overview

YASKAWA YPHT31295-1D Original Industrial Spare Sigma Compatible: System Stability & Industrial Maintenance Value

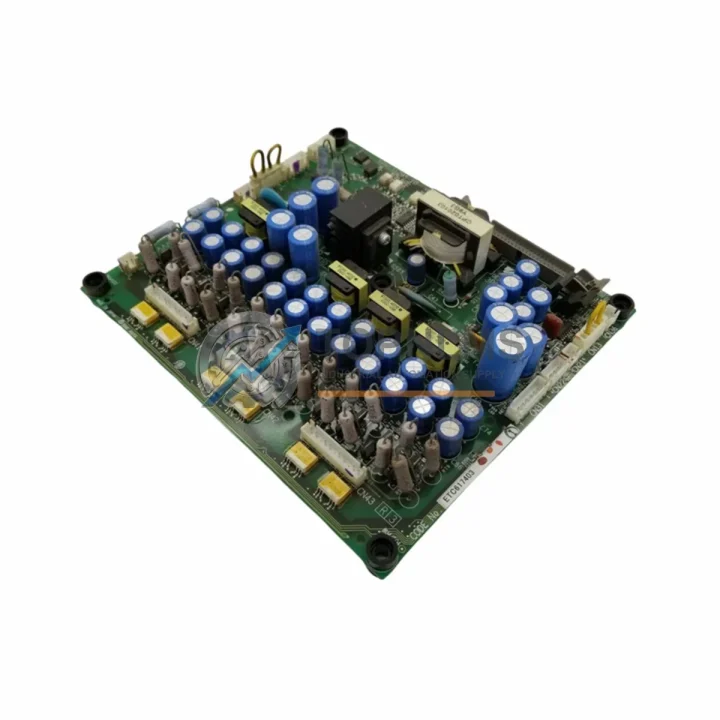

The YASKAWA YPHT31295-1D is an original panel power board designed for the Sigma-Series servo drive platform — one of the most widely deployed motion control systems in precision manufacturing, packaging automation, semiconductor handling, and CNC machining environments worldwide. When a servo drive fails unexpectedly, the downstream impact on production throughput can be severe. Sourcing a verified original replacement board such as the YPHT31295-1D is the fastest path to restoring system stability without compromising drive performance or voiding existing system warranties.

This board serves as the internal power regulation and distribution assembly within the Sigma-Series servo amplifier chassis. It conditions incoming DC bus voltage, supplies regulated power rails to the control logic, gate driver circuits, and feedback processing stages, and provides the electrical foundation upon which all servo loop calculations depend. A degraded or failed power board typically manifests as erratic torque response, undervoltage fault codes, intermittent drive lockout, or complete amplifier shutdown — all of which halt production and trigger costly emergency maintenance calls.

Critical Technical Specs

Preventive Maintenance Strategy

Experienced maintenance engineers know that a servo drive power board failure rarely occurs in isolation. The YPHT31295-1D typically fails after years of thermal cycling, capacitor aging, or transient voltage events — conditions that simultaneously stress adjacent components in the same control cabinet. A disciplined preventive maintenance approach treats the board replacement as an opportunity to audit the entire servo system.

When replacing the YPHT31295-1D, technicians should simultaneously inspect the servo drive encoder feedback cable (such as the YASKAWA JZSP-CHP00-03-E or equivalent Sigma-Series encoder cable) for insulation cracking or connector oxidation, as degraded feedback signals can cause the new board to report false faults immediately after installation. The regenerative resistor unit connected to the amplifier should be tested for resistance drift, since an out-of-spec braking resistor places abnormal load on the power board during deceleration cycles.

The 24VDC control power supply module feeding the servo amplifier logic rail is another critical checkpoint — a supply with marginal output voltage will stress the replacement board from day one. Similarly, the noise filter module (EMC line filter) upstream of the servo amplifier should be inspected for signs of overheating or capacitor leakage, as a compromised filter allows line transients to reach the power board directly.

Inside the control cabinet, the terminal block assemblies connecting the servo amplifier to motor power leads and I/O wiring should be torque-checked and visually inspected for arc marks or discoloration. Loose terminals are a leading cause of intermittent power board faults. The I/O interface module handling position command signals and drive enable inputs should be verified for correct signal levels, as a floating enable signal can cause repeated drive fault cycles that accelerate power board wear.

For multi-axis systems, the YASKAWA SGDV or SGDH series servo amplifier units sharing the same DC bus should be checked for bus voltage balance. An imbalanced shared bus creates uneven loading across all power boards in the system. Maintenance teams managing larger Sigma-Series installations should also keep a communications module (such as a MECHATROLINK-II or MECHATROLINK-III interface card) in their spare parts inventory, as these modules are frequently disturbed during drive servicing and can develop connector faults. Finally, the servo motor thermistor and brake wiring should be continuity-tested before the replacement drive is powered up, preventing a secondary fault from masking a successful board repair.

Strategic Replacement Solutions

The YPHT31295-1D addresses one of the most persistent challenges in industrial maintenance: keeping legacy Sigma-Series servo systems operational beyond the original equipment manufacturer’s active production lifecycle. YASKAWA’s Sigma-Series amplifiers remain installed in tens of thousands of production lines globally, many of which were commissioned in the early 2000s and are not scheduled for full system replacement due to the high cost and production disruption involved in a complete motion control upgrade.

By sourcing an original YPHT31295-1D replacement board, maintenance teams avoid the need to replace the entire servo amplifier chassis — a significantly more expensive and time-consuming intervention that also requires re-parameterization, motor tuning, and safety validation. The board-level replacement preserves all existing drive parameters, motor tuning data stored in the amplifier, and the physical wiring infrastructure of the control cabinet, reducing mean time to repair (MTTR) from days to hours.

For facilities managing aging Sigma-Series fleets, a strategic approach involves maintaining a minimum stock of one YPHT31295-1D per three to five installed amplifiers of the same model family. This buffer inventory eliminates the lead time risk associated with emergency procurement and ensures that a single board failure never becomes a multi-day production stoppage. The 12-month warranty on each unit provides financial protection on stocked spares, making proactive inventory investment a sound operational decision.

Facilities transitioning toward newer Sigma-7 or Sigma-X series platforms can use the YPHT31295-1D to extend the operational life of existing Sigma-Series axes during a phased migration, replacing drives one axis at a time rather than executing a costly all-at-once cutover.

Support FAQ

Q1: How do I verify that YPHT31295-1D is the correct power board for my specific Sigma-Series amplifier model?
Locate the model number label on the front or side panel of your servo amplifier. Cross-reference the amplifier model (e.g., SGDH-□□□E, SGDV-□□□□□□) with the YASKAWA spare parts manual or contact our technical team with the full amplifier model number. We will confirm compatibility before shipment.

Q2: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of shipment. If the board fails within the warranty period due to a covered defect, we will arrange replacement or repair at no additional cost. Claims require the original order reference and a brief description of the failure mode.

Q3: Is the YPHT31295-1D tested before shipment, and what packaging is used?
Yes — each unit undergoes functional verification prior to dispatch. Boards are shipped in ESD-safe anti-static packaging with foam cushioning to prevent transit damage. A test report or inspection certificate can be provided upon request for quality-critical applications.

Q4: Can I stock this board as a long-term spare, and what is the recommended storage condition?
Yes. The YPHT31295-1D is well-suited for long-term spare parts inventory. Store in a dry, temperature-controlled environment (recommended: 0–40°C, relative humidity below 75% non-condensing) in its original ESD packaging. Avoid storage near strong magnetic fields or corrosive atmospheres. The 12-month warranty period begins from the shipment date, so coordinate procurement timing with your maintenance planning cycle.
