YASKAWA YPHT31261-1G ETC619080-S1501 Ruggedized Inverter Control Board

Product Overview

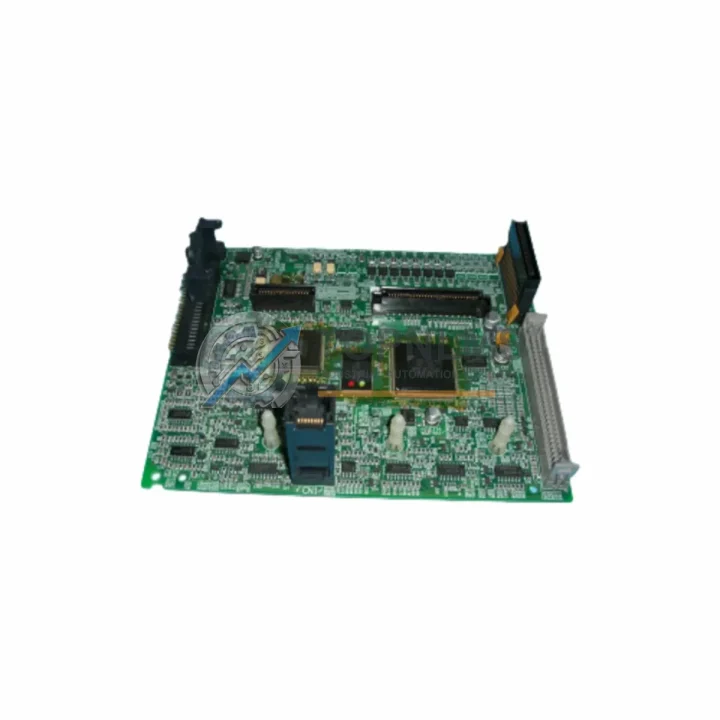

YASKAWA YPHT31261-1G ETC619080-S1501 Ruggedized Inverter Control Board: Industrial Resilience for Harsh Environments

The YASKAWA YPHT31261-1G (ETC619080-S1501) is a factory-original inverter control board engineered for continuous, fault-tolerant operation inside YASKAWA G7, F7, and E7 series AC drives. Designed to meet the uncompromising demands of heavy industry, this control board delivers stable, interference-resistant performance in environments characterized by extreme temperatures, high humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference (EMI). Whether deployed on a continuous production line, inside a hazardous-area control cabinet, or at a remote mining or petrochemical facility, the YPHT31261-1G maintains precise vector control and drive communication integrity where lesser components fail.

As the central intelligence of the YASKAWA G7 high-performance AC drive platform, this board governs PWM signal generation, closed-loop speed and torque regulation, fault diagnostics, and serial communication with upstream PLC and DCS controllers. Its robust PCB construction — featuring conformal coating, reinforced solder joints, and industrial-grade capacitors — ensures long mean-time-between-failure (MTBF) even under thermal cycling and vibration loads typical of steel mills, cement plants, and offshore installations.

Rugged Specifications Table

Comprehensive Protection Solutions

The YPHT31261-1G does not operate in isolation — it is the command center of a tightly integrated drive system. In a typical G7 drive installation, this control board interfaces directly with the YASKAWA YPCT31421-1D gate driver board, which translates the PWM commands into IGBT switching signals. The power card assembly, such as the YASKAWA ETC617823-S2040 or equivalent drive power supply board, provides regulated DC rails to the control circuitry, ensuring that voltage fluctuations on the plant floor do not corrupt control logic.

In PLC-coordinated automation architectures, the G7 drive receives speed references and run/stop commands from controllers such as the YASKAWA MP2300 machine controller or third-party Siemens S7-300/S7-400 PLCs via PROFIBUS-DP or Modbus RTU. The YPHT31261-1G’s serial communication port supports these fieldbus topologies, enabling seamless integration into existing DCS and SCADA systems without additional protocol converters.

For installations requiring functional safety, the drive system is often paired with YASKAWA SI-S3/V safety option cards or external safety relay modules that monitor STO (Safe Torque Off) and SS1 (Safe Stop 1) functions. These safety modules communicate directly with the control board’s I/O interface, ensuring that emergency stop commands are executed within the required response time — a critical requirement in machinery directive-compliant installations across the EU and in SIL-rated process plants.

Terminal modules and I/O expansion cards mounted in the same control cabinet — including analog input cards for 4–20 mA process signals and digital I/O modules for limit switch and proximity sensor feedback — rely on the G7 drive’s stable operation to maintain closed-loop process control. A failure of the inverter control board cascades immediately into process upsets; having a verified spare YPHT31261-1G on the shelf is therefore standard practice in any reliability-centered maintenance (RCM) program.

Industrial power conditioning equipment, such as line reactors, EMC filters, and DC bus chokes installed upstream of the G7 drive, work in concert with the control board’s built-in EMI suppression to protect sensitive control electronics from grid-borne transients. In facilities with large motor loads or frequent switching operations, this layered protection strategy is essential for long-term board reliability.

Application in Critical Infrastructure

The YASKAWA YPHT31261-1G sees its most demanding service in critical infrastructure sectors where unplanned downtime carries severe operational and safety consequences.

Oil & Gas: In upstream and midstream facilities, G7 drives equipped with this control board regulate submersible pump motors, compressor drives, and wellhead control systems. The board’s robust EMC design withstands the high-frequency interference generated by variable-speed pump arrays and the transient surges common in remote power grids. Hazardous-area installations typically house the drive in IP54 or IP65 enclosures, relying on the control board’s conformal coating to resist condensation during temperature cycling between day and night operations.

Mining & Mineral Processing: Conveyor belt drives, ball mill motors, and slurry pump systems in open-pit and underground mines subject drive electronics to continuous vibration, coal dust ingress, and wide ambient temperature swings. The YPHT31261-1G’s industrial-grade component selection and reinforced PCB construction make it a preferred replacement board for mine maintenance teams seeking to restore production quickly without waiting for OEM repair cycles.

Power Generation & Utilities: Cooling water pump drives, induced draft fan controls, and auxiliary motor systems in thermal and hydroelectric power plants operate continuously for months without scheduled maintenance windows. The control board’s fault diagnostic capabilities — including overcurrent, overvoltage, ground fault, and communication error detection — enable predictive maintenance teams to identify developing faults before they cause forced outages.

Water & Wastewater Treatment: Municipal water authorities and industrial effluent treatment plants deploy G7 drives on booster pump stations, aeration blowers, and sludge dewatering centrifuges. The YPHT31261-1G’s precise torque control capability reduces water hammer events and mechanical stress on pump impellers, extending the service life of both the drive system and the connected mechanical equipment.

Metallurgy & Steel: Rolling mill main drives, ladle transfer car controls, and continuous casting line motors in steel plants demand the highest levels of dynamic torque response and thermal stability. The G7 platform, anchored by the YPHT31261-1G control board, delivers the flux vector control performance required for these applications, maintaining speed regulation accuracy even under rapid load transients.

Security & Quality FAQ

Q1: What warranty coverage is provided with the YASKAWA YPHT31261-1G?
Every YPHT31261-1G shipped by TOPNLMS carries a 12-month warranty from the date of shipment. If the board fails under normal operating conditions within the warranty period, we provide a free replacement or full refund. Our warranty covers manufacturing defects and component failures — not damage caused by incorrect installation, overvoltage events, or physical mishandling.

Q2: How is each board tested before shipment?
All boards undergo a multi-stage inspection process prior to dispatch: visual inspection for PCB damage, component-level continuity testing, and functional verification against YASKAWA’s published electrical specifications. Boards sourced as tested surplus are additionally subjected to powered bench testing to confirm correct signal output on all interface connectors. A test report is available upon request for critical infrastructure procurement.

Q3: Is this board compatible with all G7, F7, and E7 drive variants?
The YPHT31261-1G / ETC619080-S1501 is compatible with specific kVA ratings within the YASKAWA G7, F7, and E7 drive families. Compatibility depends on the drive’s power rating and production date code. We strongly recommend providing your drive’s full nameplate data — including model number, kVA rating, and serial number — when placing an order, so our technical team can confirm exact fitment before shipment.

Q4: Can TOPNLMS support long-term supply and emergency replacement needs?
Yes. TOPNLMS maintains a dedicated inventory of YASKAWA drive components, including control boards, gate driver cards, and power supply assemblies, to support both planned maintenance programs and emergency breakdown situations. We offer priority processing for urgent orders, with same-day dispatch available for in-stock items. For customers managing large fleets of YASKAWA drives, we can arrange consignment stock agreements to ensure critical spares are always available on-site.
