YASKAWA YPHT11017-1A Original Industrial Spare Varispeed G7

Product Overview

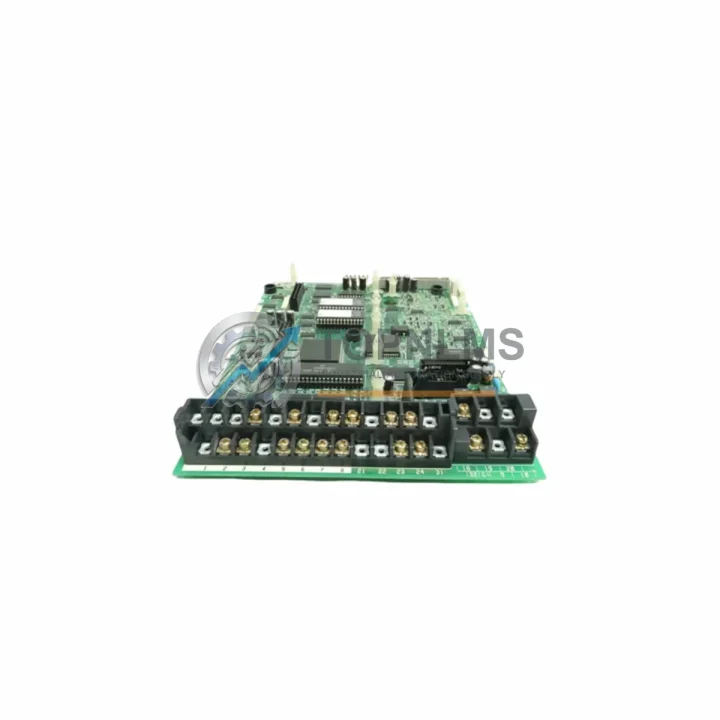

YASKAWA YPHT11017-1A Original Industrial Spare – Varispeed G7/F7 System Stability Assured

The YASKAWA YPHT11017-1A is the original main control PCB designed for the Varispeed G7 and F7 series AC drives — two of the most widely deployed variable frequency drive platforms in heavy industrial, process automation, and manufacturing environments worldwide. When this board fails, the entire drive becomes inoperable, making unplanned downtime a direct threat to production continuity. Sourcing a genuine, pre-tested replacement is the fastest and most reliable path to restoring full system operation.

At TOPNLMS, every YPHT11017-1A unit is sourced from verified supply channels, subjected to functional inspection prior to dispatch, and backed by a 12-month warranty. Whether you are managing a scheduled overhaul, responding to an emergency breakdown, or building a strategic spare parts inventory for a multi-drive installation, this board ships ready for immediate installation.

Critical Technical Specs

Preventive Maintenance Strategy

A failed YPHT11017-1A rarely occurs in isolation. In most field cases, the root cause traces back to a broader environmental or electrical stress event — power surge, cooling failure, or accumulated vibration — that affects multiple components within the same control cabinet simultaneously. A disciplined preventive maintenance approach treats the drive as a system, not a collection of isolated parts.

When replacing the YPHT11017-1A main control board, maintenance engineers should concurrently inspect the YASKAWA ETC615823-S1 gate driver board and the YASKAWA YPCT31571-1D power supply board, both of which operate in close electrical proximity and are subject to the same thermal and voltage stress cycles. If the drive has been in service for more than five years, proactive replacement of the Varispeed G7/F7 series cooling fan assembly is strongly recommended — fan degradation is the leading cause of thermal-induced control board failure.

At the cabinet level, inspect the 24VDC control power supply module feeding the drive’s logic circuits. A marginal or noisy control supply is a common but overlooked contributor to intermittent drive faults and premature PCB failure. Similarly, check the input reactor (AC line reactor) and EMC filter upstream of the drive — these components protect the drive from line-side disturbances and their condition directly affects the longevity of the control board.

For multi-axis or multi-drive installations, it is good practice to audit the MEMOBUS/Modbus RS-485 communication cable and termination resistors at the same time. Degraded shielding or loose terminations can introduce noise that stresses the communication interface on the YPHT11017-1A. If the system uses a YASKAWA SI-P3/V option card or SI-B3 PROFIBUS card mounted to the control board, inspect the card connector and re-seat it during the board swap.

Facilities running legacy Varispeed G7 or F7 drives alongside newer YASKAWA A1000 or GA700 series equipment should maintain a consolidated spare parts plan that includes YASKAWA CIMR-series I/O terminal boards and PG speed controller option cards. Standardizing spare holdings across drive generations reduces procurement lead time and simplifies technician training. A well-stocked maintenance kit for a Varispeed G7/F7 installation typically includes the main control PCB, gate driver board, power supply board, cooling fan, and at least one set of DC bus capacitors — the five components most likely to require replacement within a ten-year service life.

Strategic Replacement Solutions

The Varispeed G7 and F7 series have been in production since the early 2000s and remain operational in thousands of facilities across automotive, steel, chemical, water treatment, and material handling industries. YASKAWA has transitioned its current product line to the A1000 and GA700 platforms, meaning that original G7/F7 spare parts are no longer manufactured on a continuous basis. Availability windows for genuine boards like the YPHT11017-1A are finite, and lead times from distribution channels can extend to weeks or months depending on market conditions.

Procuring a tested, genuine YPHT11017-1A now — rather than at the moment of failure — eliminates the most damaging variable in unplanned downtime: parts availability. A single production stoppage in a high-throughput environment can cost multiples of the spare part value within hours. Holding one or two boards in local inventory converts a potential emergency into a routine swap, typically completed within a single shift.

For facilities considering a longer-term migration path, the YPHT11017-1A replacement also provides an opportunity to audit the full drive configuration — parameter backup, encoder feedback settings, and PID tuning — so that data is preserved before the aging drive is eventually retired. This documentation step costs nothing during a planned maintenance window and eliminates significant re-commissioning effort if the drive is later upgraded to a YASKAWA A1000 or equivalent platform.

TOPNLMS ships the YPHT11017-1A with full functional test documentation. Each unit is inspected for physical integrity, connector condition, and basic electrical continuity before dispatch. Export packaging is designed for international freight, and orders are processed within 1–2 business days of payment confirmation.

Support FAQ

Q1: Is the YPHT11017-1A compatible with both the Varispeed G7 and F7 series?
Yes. The YPHT11017-1A is the main control PCB used across the Varispeed G7 and F7 drive families. Compatibility is determined by drive capacity and voltage class — please confirm your drive’s nameplate model number (e.g., CIMR-G7A4037 or CIMR-F7A4037) when ordering to ensure the correct board revision is supplied.

Q2: What does the 12-month warranty cover?
The warranty covers manufacturing defects and functional failure under normal operating conditions for 12 months from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, physical impact, or operation outside the specified environmental parameters. Warranty claims are processed via email with a fault description and, where possible, photographic evidence.

Q3: How is the board tested before shipment?
Each YPHT11017-1A unit undergoes visual inspection for component damage, solder joint integrity, and connector condition, followed by basic electrical continuity checks. Units that do not pass inspection are quarantined and not dispatched. Test records are retained and can be provided upon request for quality-critical procurement processes.

Q4: Can I hold stock of this board for long-term inventory without degradation?
Yes, with proper storage. Store the board in its anti-static packaging in a dry environment at 15–25°C with humidity below 70% RH and away from direct sunlight and magnetic fields. Under these conditions, the board can be stored for 3–5 years without functional degradation. For long-term holdings beyond five years, a periodic power-on check is recommended to re-form electrolytic components.
