Yaskawa JANCD-YCP01B-E Ruggedized CPU Module for Harsh Environments

Product Overview

Yaskawa JANCD-YCP01B-E Ruggedized CPU Module for Harsh Environments

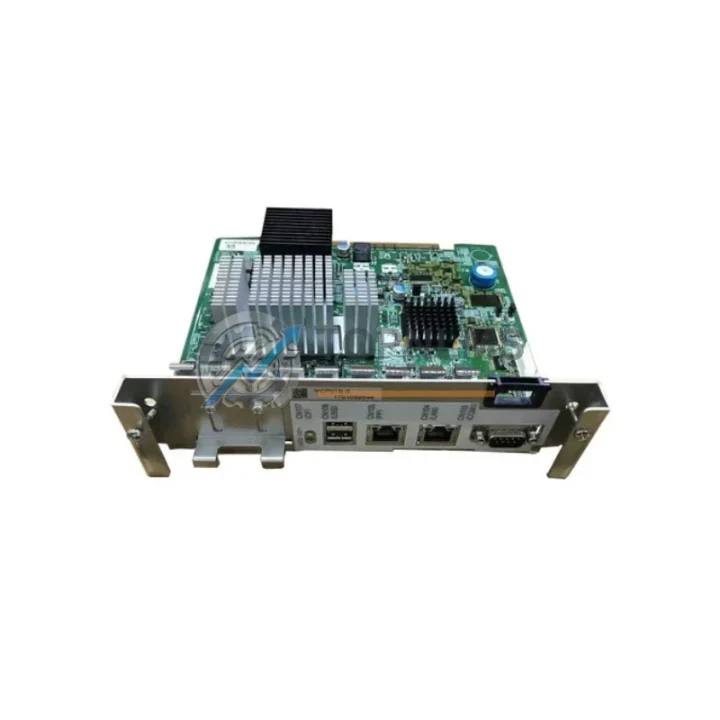

The Yaskawa JANCD-YCP01B-E is a high-reliability CPU board engineered for the DX100 and NX100 series robot controllers — two of the most widely deployed motion control platforms in heavy industrial automation. Designed to operate continuously in environments characterized by extreme temperature fluctuations, high humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference, this module delivers the processing stability that mission-critical production lines demand.

In industrial facilities where downtime is measured in tens of thousands of dollars per hour — oil refineries, automotive stamping plants, steel mills, and continuous chemical processing lines — the CPU board is the nerve center of the entire robotic cell. The JANCD-YCP01B-E maintains deterministic cycle-time execution even when ambient temperatures swing between -10 °C and +55 °C, when relative humidity reaches 95% non-condensing, and when the surrounding switchgear generates conducted and radiated EMI that would destabilize lesser control hardware. Its conformal-coated PCB construction resists corrosive atmospheres, while the board’s vibration-tolerant component mounting tolerates the shock and resonance common to press-room and mining environments.

Replacement of a failed CPU board in a DX100 or NX100 controller is a time-sensitive operation. The JANCD-YCP01B-E is a direct plug-in replacement that restores full controller functionality without firmware re-flashing in most configurations, minimizing the engineering hours required to return a robotic arm to production. This makes it an essential spare-parts holding for any maintenance team operating Yaskawa Motoman robots in continuous-shift manufacturing.

Rugged Specifications Table

Comprehensive Protection Solutions

The JANCD-YCP01B-E does not operate in isolation — it is the processing core of a tightly integrated control architecture. In a typical DX100 controller cabinet, it works in concert with the JANCD-YIF01-E interface board, which manages I/O signal routing between the CPU and external field devices. The JANCD-YSF21-E safety board enforces dual-channel safety logic, ensuring that the robot halts reliably when personnel enter the work envelope — a non-negotiable requirement in ISO 10218-1 compliant cells. Power conditioning for the entire controller is handled by the JZNC-YPS01-E power supply unit, which filters incoming AC and delivers regulated DC rails to the CPU and servo amplifier boards.

On the motion side, the SGDV-series Sigma-5 servo drives receive trajectory commands from the JANCD-YCP01B-E via the high-speed MECHATROLINK-II motion bus, translating digital position references into precise torque output at each robot axis. The JANCD-YSW21-E servo control board bridges the CPU to these drives within the controller chassis. For facilities that integrate Yaskawa robots into broader plant-level SCADA or DCS architectures, the JZNC-YEW01-E Ethernet communication board enables EtherNet/IP or PROFINET connectivity, allowing the DX100 to exchange status data with Siemens S7-series PLCs, Allen-Bradley ControlLogix systems, or Yokogawa CENTUM VP DCS platforms without protocol conversion middleware.

In high-vibration environments such as stamping presses or mining conveyors, supplementary JANCD-YBB01-E battery backup boards protect volatile memory contents during power interruptions, preserving robot programs and calibration data that would otherwise require hours of re-teaching. Pairing the JANCD-YCP01B-E with a stocked set of these complementary boards — interface, safety, power supply, servo control, and communication — constitutes a comprehensive spare-parts strategy that covers every functional layer of the DX100 controller and dramatically reduces mean time to repair.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, Yaskawa DX100-controlled robots perform pipe-end welding, valve assembly, and inspection tasks in classified hazardous areas. The JANCD-YCP01B-E sustains reliable CPU operation despite the hydrocarbon vapors, salt-laden air, and wide diurnal temperature swings characteristic of offshore platforms and onshore processing terminals. Maintenance teams on these sites typically hold at least one spare CPU board on-site, as the lead time for unplanned procurement from a standard distributor can exceed the acceptable downtime window for a critical weld station.

In metallurgy and steel production, DX100 robots handle ladle pouring, billet transfer, and surface grinding in environments where radiant heat from molten metal, iron oxide dust, and floor vibration from rolling mills create severe operating conditions. The conformal coating and robust connector retention of the JANCD-YCP01B-E make it well-suited to these thermal and particulate challenges. Similarly, in automotive body-in-white assembly, where hundreds of Motoman robots operate in synchronized cells performing resistance spot welding, the high-frequency switching noise from welding transformers demands a CPU board with strong EMI immunity — a characteristic built into the JANCD-YCP01B-E’s design.

Water treatment and municipal utility operators increasingly deploy robotic systems for pipe inspection and valve actuation in confined spaces. Mining operations use Yaskawa robots for explosive-charge placement and ore-sample handling. In all these sectors, the JANCD-YCP01B-E serves as the critical intelligence layer that must not fail — and when it does require replacement, rapid access to a verified spare is the difference between a two-hour repair and a two-week production loss.

Security & Quality FAQ

Q1: What does the 12-month warranty cover?
The warranty covers all manufacturing defects and functional failures under normal operating conditions for 12 months from the date of shipment. If the board fails to perform its specified CPU functions within this period, we will repair or replace it at no additional cost. The warranty does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling.

Q2: How is the JANCD-YCP01B-E tested before shipment?
Every unit undergoes a full functional verification procedure prior to dispatch. This includes power-on self-test confirmation, communication bus integrity checks, and visual inspection for component condition and connector integrity. Units that do not pass all test criteria are quarantined and not shipped. A test report is available upon request for customers with documented quality management requirements.

Q3: Is this board compatible with both DX100 and NX100 controllers?
Yes. The JANCD-YCP01B-E is designed for use in both the DX100 and NX100 Yaskawa robot controller platforms. Before installation, verify the firmware revision of your existing controller system. In most standard configurations, the board is a direct replacement. For non-standard or heavily customized controller builds, our technical team can advise on compatibility prior to purchase.

Q4: Can you guarantee long-term supply for ongoing maintenance programs?
We maintain dedicated inventory of high-demand Yaskawa spare boards including the JANCD-YCP01B-E to support customers with multi-year maintenance contracts and planned preventive replacement schedules. For facilities managing fleets of 10 or more DX100/NX100 controllers, we recommend discussing a reserved-stock arrangement to ensure availability during peak demand periods. Contact us to discuss volume pricing and supply continuity agreements.
