YASKAWA JANCD-NCP01-1 Ruggedized CPU Control Module for Harsh Environments

Product Overview

YASKAWA JANCD-NCP01-1 Ruggedized CPU Control Module for Harsh Environments

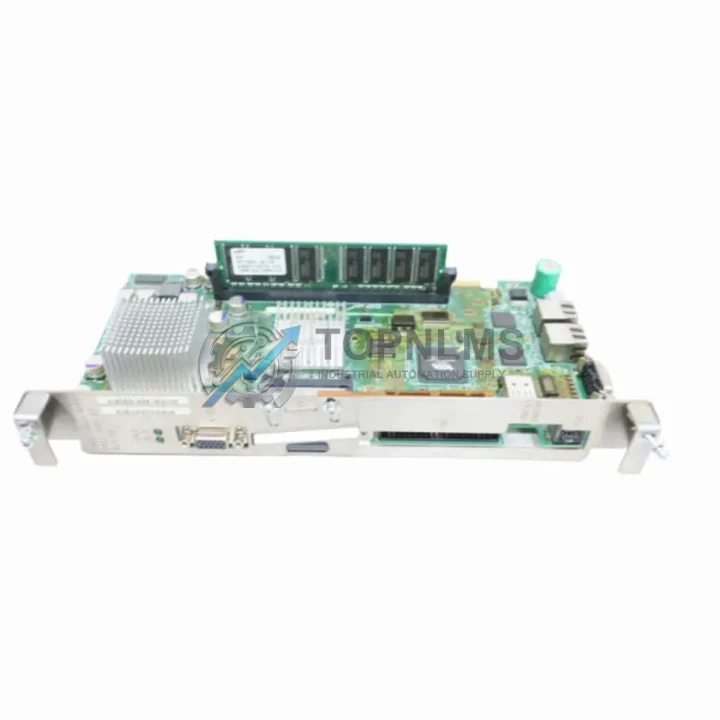

The YASKAWA JANCD-NCP01-1 is the central CPU control board of the NX100 robot controller series, engineered to deliver uninterrupted command processing in the most demanding industrial environments. Designed for YASKAWA Motoman robotic systems, this board governs real-time motion control, I/O coordination, and system diagnostics — making it a mission-critical component in continuous production lines, heavy manufacturing cells, and hazardous-area automation installations.

Built to YASKAWA’s industrial-grade standards, the JANCD-NCP01-1 operates reliably under conditions of elevated temperature, high humidity, airborne particulates, mechanical vibration, and electromagnetic interference (EMI) — precisely the conditions found in automotive body shops, foundries, chemical processing plants, and offshore fabrication facilities. Its robust PCB construction, conformal coating, and shielded signal pathways ensure stable CPU operation even when adjacent high-power drives, servo amplifiers, and welding inverters generate significant electrical noise on the plant floor.

Rugged Specifications Table

Comprehensive Protection Solutions

The JANCD-NCP01-1 does not operate in isolation — it is the nerve center of a tightly integrated control architecture. In a fully configured NX100 controller cabinet, it works in concert with the JANCD-NIF01 network interface board, which manages real-time communication between the CPU and peripheral I/O nodes over YASKAWA’s proprietary high-speed bus. The JANCD-YCP01 servo control board translates CPU motion commands into precise axis drive signals, while the JANCD-MCP01 manages the machine safety and emergency-stop logic — ensuring that any fault detected by the CPU triggers a controlled, safe shutdown rather than an uncontrolled stop.

On the power supply side, the NX100 controller relies on the JZNC-NZU01 power unit to deliver clean, regulated DC rails to the CPU board and all downstream logic cards. Voltage transients, brownouts, or power-line harmonics that are common in heavy industrial facilities are filtered at this stage, protecting the JANCD-NCP01-1 from premature failure. For facilities running multiple robot cells, the JANCD-NCP01B (the successor revision) is also supported in mixed-fleet environments, and TOPNLMS maintains stock of both revisions to support legacy and current installations alike.

Communication integrity is equally critical. The NX100 platform supports DeviceNet and Ethernet/IP fieldbus protocols through dedicated communication modules such as the JANCD-YEW01, enabling seamless integration with Siemens S7-series PLCs, Allen-Bradley ControlLogix controllers, and Schneider Electric Modicon M340 systems on the same plant network. When the JANCD-NCP01-1 is replaced or upgraded, these communication modules retain their configuration, minimizing re-commissioning time. Safety relay modules and terminal blocks within the control cabinet — including YASKAWA’s JZRCR-NPP01 pendant interface board — remain fully compatible, preserving the existing wiring harness and reducing downtime during board swap-out.

Application in Critical Infrastructure

In oil and gas pipeline welding operations, YASKAWA NX100-based robot cells equipped with the JANCD-NCP01-1 perform continuous girth-weld passes on high-pressure pipe sections. The CPU board’s deterministic real-time cycle ensures weld-path accuracy is maintained even when the surrounding environment generates intense arc flash, RF interference from welding power sources, and thermal gradients from preheating stations. A CPU board failure in this context halts an entire welding bay — making rapid spare availability and a verified replacement unit non-negotiable.

In mining and mineral processing facilities, NX100 controllers manage material handling robots operating in high-dust, high-vibration environments. The JANCD-NCP01-1’s robust connector locking mechanisms and vibration-tolerant PCB design prevent intermittent contact failures that would otherwise cause nuisance faults and unplanned stoppages on ore-processing conveyors.

In power generation and electrical utilities, robotic inspection and maintenance systems built on the NX100 platform rely on the JANCD-NCP01-1 to execute precise positioning tasks inside transformer bays and switchgear rooms — environments with strong electromagnetic fields. The board’s EMI-hardened design ensures CPU integrity is maintained without requiring additional shielding enclosures.

In metallurgy and steel production, NX100 robots perform ladle handling, billet transfer, and surface inspection at elevated ambient temperatures. The JANCD-NCP01-1 sustains full processing performance at the upper end of its thermal envelope, supported by the NX100 cabinet’s forced-air cooling system. For facilities operating 24/7 continuous casting lines, TOPNLMS recommends maintaining at least one verified spare JANCD-NCP01-1 on-site to eliminate lead-time risk during unplanned maintenance windows.

In water and wastewater treatment plants, where corrosive atmospheres and high humidity are constant challenges, the NX100 controller’s sealed cabinet design — combined with the JANCD-NCP01-1’s conformal-coated PCB — provides the moisture resistance needed for reliable long-term operation without frequent board replacements.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the JANCD-NCP01-1?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If the board fails to perform its specified CPU control functions within the warranty period, TOPNLMS will provide a replacement unit or full refund. The warranty does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling.

Q2: How is each JANCD-NCP01-1 tested before shipment?
Every unit undergoes a multi-stage pre-shipment inspection: visual inspection for PCB damage, component-level continuity testing, and functional power-on verification where applicable. Refurbished units are additionally subjected to burn-in testing to screen for early-life failures. A test report is available upon request for quality-critical procurement processes.

Q3: Is the JANCD-NCP01-1 compatible with all NX100 controller variants?
The JANCD-NCP01-1 is the standard CPU board for the YASKAWA NX100 controller platform and is compatible across the NX100 family used with Motoman UP, ES, HP, and MA series robots. Compatibility with specific robot models and software versions should be confirmed against the NX100 maintenance manual or by contacting TOPNLMS technical support prior to ordering.

Q4: Can TOPNLMS support long-term or repeat procurement of the JANCD-NCP01-1?
Yes. TOPNLMS maintains ongoing inventory of NX100-series spare boards and can support scheduled procurement programs, blanket orders, and emergency same-day dispatch for critical plant shutdowns. For facilities managing multi-robot fleets or planning preventive maintenance cycles, our team can advise on recommended spare-parts holding quantities based on your installed base and production criticality.
