YASKAWA JANCD-NTU01-1 Ruggedized Network Communication Module for Harsh Environments

Product Overview

YASKAWA JANCD-NTU01-1 Ruggedized Network Communication Module for Harsh Environments

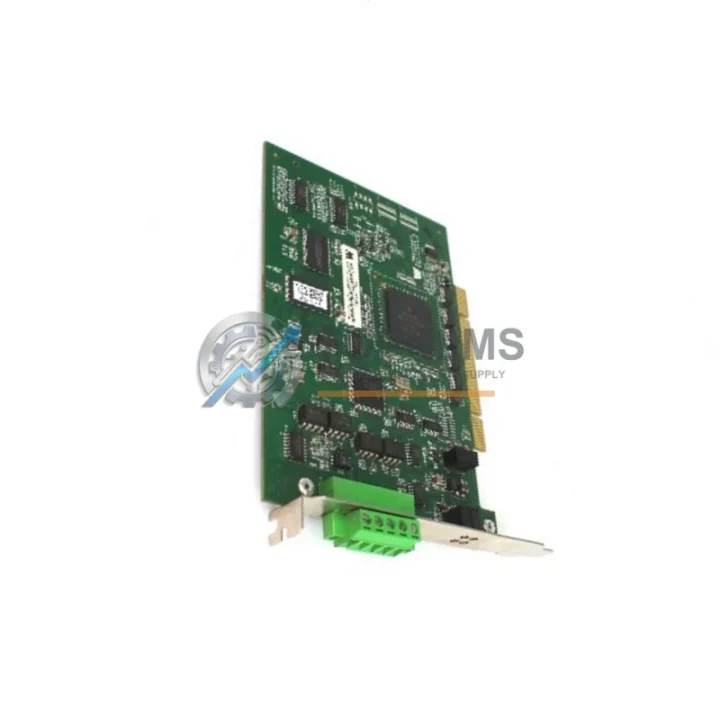

The YASKAWA JANCD-NTU01-1 is a factory-engineered network communication PC board designed for deployment inside YASKAWA NX100 and DX100 robot controller cabinets operating in the most demanding industrial environments. Built to YASKAWA’s exacting standards for electromagnetic compatibility, thermal stability, and mechanical robustness, this module sustains uninterrupted data exchange between the robot controller and upstream supervisory systems — even in the presence of high-frequency electrical noise, ambient vibration, elevated temperatures, and airborne particulate contamination common to heavy manufacturing floors.

In continuous-production facilities such as automotive body shops, steel fabrication lines, and chemical processing plants, communication dropouts between a robot controller and its network backbone can trigger costly unplanned stoppages. The JANCD-NTU01-1 eliminates this risk by providing a stable, low-latency communication link that integrates seamlessly with the NX100 and DX100 controller architecture. Its onboard signal conditioning circuitry maintains data integrity across extended cable runs, while the board’s conformal-coated PCB construction resists moisture ingress and corrosive atmospheres found in food processing, wastewater treatment, and offshore environments.

Procurement engineers and maintenance teams sourcing this board as a critical spare or direct replacement will find that TOPNLMS maintains verified stock, conducts pre-shipment functional testing on every unit, and backs each sale with a 12-month quality warranty — providing the supply-chain confidence required for safety-critical automation infrastructure.

Rugged Specifications Table

Comprehensive Protection Solutions

The JANCD-NTU01-1 does not operate in isolation — it is one node in a tightly integrated control architecture. Within the NX100 and DX100 controller cabinet, it works in concert with the JANCD-YCP01-2E CPU board, which handles real-time motion trajectory computation, and the JANCD-YIF01-2E interface board, which manages I/O signal routing between the controller and peripheral field devices. Reliable network communication from the JANCD-NTU01-1 ensures that safety interlocks transmitted from a JZNC-YSU01-1E safety module reach the supervisory PLC without latency-induced gaps — a non-negotiable requirement in collaborative robot cells and guarded work envelopes.

On the power supply side, the JZNC-YPS01-1E power supply unit provides the regulated DC rails that the communication board depends on for stable logic operation. Voltage ripple or transient spikes on these rails — common in facilities running large servo drives or variable-frequency drives (VFDs) on shared bus infrastructure — can corrupt network frames. Pairing a verified JANCD-NTU01-1 with a tested JZNC-YPS01-1E eliminates this failure mode. Similarly, the JANCD-YSF21-1E servo control board and associated SGDV-series servo amplifiers generate switching noise that the JANCD-NTU01-1’s EMC-hardened design is specifically engineered to reject.

For facilities running mixed automation architectures, the JANCD-NTU01-1 supports integration with upstream Siemens S7-series PLCs, Allen-Bradley ControlLogix controllers, and PROFIBUS or DeviceNet gateway modules via standard fieldbus protocols. Terminal block assemblies and shielded communication cables within the control cabinet complete the signal chain, ensuring that every byte transmitted from the robot controller arrives intact at the SCADA or MES layer above.

Application in Critical Infrastructure

In automotive body-in-white welding lines, YASKAWA NX100-controlled spot-welding robots operate on cycle times measured in seconds, with zero tolerance for communication faults. The JANCD-NTU01-1 sustains the high-speed data exchange between the robot controller and the line PLC that coordinates part transfer, clamp actuation, and weld-gun firing sequences. A communication board failure in this environment halts an entire production line; maintaining a tested spare JANCD-NTU01-1 in the maintenance crib is standard practice for Tier 1 automotive suppliers.

In oil and gas pipeline construction and maintenance facilities, YASKAWA DX100-controlled welding robots operate in environments with elevated ambient temperatures, hydrocarbon vapors, and aggressive EMI from high-current welding power sources. The JANCD-NTU01-1’s robust signal isolation ensures that weld-parameter data and safety-interlock signals are transmitted without corruption, supporting compliance with functional safety standards such as IEC 62061 and ISO 13849.

In steel mill material handling and mining ore processing applications, robots equipped with NX100 controllers manage ladle transport, billet stacking, and crusher-feed positioning in environments characterized by extreme vibration, metallic dust, and wide thermal cycling. The communication board’s mechanical robustness and thermal design margin ensure continuous operation across shift changes and seasonal temperature swings. Water treatment and municipal infrastructure operators similarly rely on DX100-based robotic systems for pipe inspection and valve actuation, where the JANCD-NTU01-1 maintains the Ethernet or fieldbus link to the plant SCADA system around the clock.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions consistent with YASKAWA’s published specifications for the NX100 and DX100 controller environment. If a unit fails within the warranty period, TOPNLMS will arrange replacement or repair at no additional cost. Contact [email protected] with your order reference and a description of the fault to initiate a claim.

Q2: How is each JANCD-NTU01-1 tested before shipment?
Every unit undergoes a pre-shipment functional verification that includes power-on self-test, communication port continuity checks, and visual inspection for PCB damage, cold solder joints, or component anomalies. Units that do not pass all checks are quarantined and not shipped. A test record is retained for each dispatched unit.

Q3: Is this board compatible with both NX100 and DX100 controllers, and are there any hardware revision considerations?
The JANCD-NTU01-1 is the OEM-specified network communication board for both the NX100 and DX100 YASKAWA robot controller platforms. Hardware revision compatibility follows YASKAWA’s standard board-revision policy; buyers should confirm their controller’s system software version against YASKAWA’s compatibility matrix if the controller has been upgraded. TOPNLMS technical staff can assist with compatibility verification prior to purchase.

Q4: Can TOPNLMS support long-term or repeat procurement of this part?
Yes. TOPNLMS maintains ongoing stock of YASKAWA NX100 and DX100 series spare boards, including the JANCD-NTU01-1, to support planned maintenance programs, capital project builds, and emergency breakdown scenarios. Volume pricing and scheduled delivery agreements are available for MRO teams and system integrators managing multi-site robot fleets. Contact our team to discuss a supply agreement tailored to your maintenance cycle.
