Yaskawa AB-PCI-PRT-S AB3609-C Original Industrial Spare A1000 Compatible

Product Overview

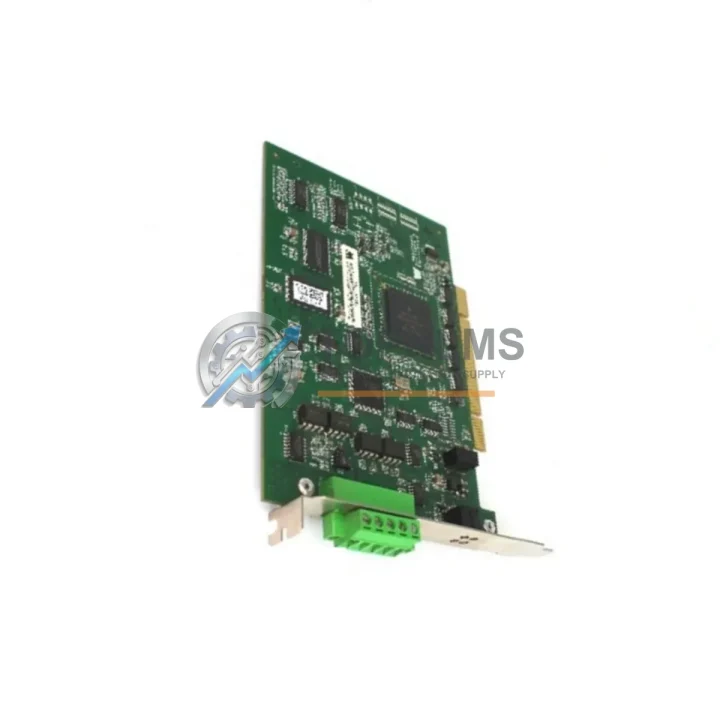

Yaskawa AB-PCI-PRT-S AB3609-C Original Industrial Spare A1000 Compatible: System Stability Through Genuine Fieldbus Communication

In modern industrial automation environments, the integrity of fieldbus communication between AC drives and PLC/DCS control systems is non-negotiable. The Yaskawa AB-PCI-PRT-S (AB3609-C) is an original PROFIBUS-DP option board engineered specifically for Yaskawa’s A1000, E7, F7, and G7 series variable frequency drives. When a communication fault or option board failure occurs on the production floor, every minute of unplanned downtime translates directly into lost output, strained maintenance budgets, and pressure on the entire supply chain. Stocking a verified original replacement for this critical interface component is one of the most cost-effective decisions a maintenance engineer or procurement manager can make.

The AB-PCI-PRT-S plugs directly into the CN5 option port of compatible Yaskawa drives, enabling seamless PROFIBUS-DP slave communication at up to 12 Mbit/s. It supports cyclic data exchange, diagnostic messaging, and parameter access via the fieldbus — capabilities that are essential in distributed control architectures where a Siemens S7-300/S7-400 PLC or a Yokogawa CENTUM DCS acts as the PROFIBUS master. Because this board is an original Yaskawa component (part number AB3609-C), it carries the full firmware compatibility and parameter mapping that aftermarket alternatives frequently cannot guarantee. For facilities running legacy E7 or F7 drives that are no longer in production, sourcing a genuine AB-PCI-PRT-S is often the only way to restore full fieldbus functionality without a costly drive replacement.

Critical Technical Specs

Preventive Maintenance Strategy

A PROFIBUS-DP option board failure rarely occurs in isolation. In most industrial facilities, the AB-PCI-PRT-S sits inside a drive control cabinet that also houses a range of interdependent components — all of which share the same thermal, electrical, and vibration stresses. A disciplined preventive maintenance programme should treat the option board replacement as a trigger for a broader cabinet inspection.

When servicing the drive that carries the AB-PCI-PRT-S, maintenance teams should simultaneously inspect the Yaskawa A1000 control power supply unit and the 24 VDC auxiliary power module that feeds the control circuit. Voltage ripple or brownout conditions are a leading cause of option board communication errors that are misdiagnosed as board failures. At the same time, the Yaskawa SI-P3/V option card (if installed in a parallel drive) and any PROFIBUS-DP repeater modules on the network segment should be checked for termination resistance and cable shielding integrity — a single improperly terminated node can degrade the entire bus.

Inside the same control cabinet, the Yaskawa A1000 I/O terminal board (TB2) and associated analog input/output signal isolators should be tested for drift, particularly in high-temperature environments. Relay output modules connected to the drive’s multi-function output terminals — such as the Yaskawa DO-A3 digital output option card — should be inspected for contact wear if the drive cycles frequently. The terminal block assemblies and DIN-rail mounted fuse modules protecting the control circuit wiring deserve attention as well; corroded or loose terminals are a common source of intermittent fieldbus faults that are difficult to trace without a systematic inspection.

For facilities managing multiple Yaskawa drives across a PROFIBUS segment, it is prudent to maintain a small buffer stock of the AB-PCI-PRT-S alongside the Yaskawa JVOP-182 USB copy unit or equivalent parameter backup device. This allows a replacement drive to be pre-configured and the option board swapped in under a single planned maintenance window, rather than waiting for parts procurement during an emergency shutdown. Pairing the option board with a spare Yaskawa A1000 control board (YPIX) in the storeroom provides a complete drive-level recovery kit for the most critical production assets.

Strategic Replacement Solutions

The AB-PCI-PRT-S addresses one of the most persistent challenges in legacy drive maintenance: keeping older Yaskawa E7 and F7 drives — which may have been installed 10 to 20 years ago — communicating reliably on a modern PROFIBUS-DP network. Because Yaskawa designed the CN5 option port as a common interface across multiple drive generations, the AB3609-C board is physically and electrically compatible with A1000, E7, F7, and G7 platforms without any hardware modification. This cross-series compatibility means that a single spare part number can cover multiple drive models across a plant, dramatically simplifying inventory management.

For maintenance engineers facing a drive that has lost PROFIBUS communication, the AB-PCI-PRT-S replacement procedure is straightforward: power down the drive, discharge the DC bus, remove the faulty option board from the CN5 slot, insert the replacement, restore power, and verify the node address and baud rate settings via the drive keypad or the Yaskawa DriveWizard Industrial software. The entire process typically takes under 30 minutes for a trained technician, making it far more efficient than a full drive replacement or a fieldbus architecture redesign.

For facilities considering a migration from PROFIBUS-DP to EtherNet/IP or PROFINET, the AB-PCI-PRT-S also serves as a cost-effective bridge solution — maintaining existing PROFIBUS infrastructure while the broader network upgrade is planned and budgeted. This approach protects capital investment in existing drives and control systems while providing a clear, low-risk path toward modernisation.

Support FAQ

Q1: Is the AB-PCI-PRT-S (AB3609-C) compatible with both A1000 and older E7/F7/G7 drives?
Yes. The AB-PCI-PRT-S is designed for the CN5 option port, which is a shared interface across Yaskawa’s A1000, E7, F7, and G7 series. Compatibility should always be verified against the specific drive firmware version; contact us with your drive nameplate data if you require confirmation before ordering.

Q2: What pre-shipment testing is performed on this option board?
Every AB-PCI-PRT-S unit is inspected for physical integrity, connector pin condition, and board-level continuity before dispatch. Units sourced as original Yaskawa components are verified against manufacturer part numbers and labelling. A 12-month warranty covers defects in materials and workmanship from the date of shipment.

Q3: How should I manage spare parts inventory for PROFIBUS-DP option boards across multiple drives?
For facilities with three or more Yaskawa drives on a PROFIBUS segment, we recommend maintaining at least one AB-PCI-PRT-S in stock at all times. Given the cross-series compatibility of the AB3609-C, a single spare can serve as a recovery part for multiple drive models, reducing the total number of unique spare part numbers required in your storeroom.

Q4: What is the lead time and shipping arrangement?
In-stock units are typically dispatched within 1–3 business days. International shipments are supported with full export documentation. For urgent requirements, expedited shipping options are available — contact us directly to confirm availability and lead time for your specific quantity and destination.
