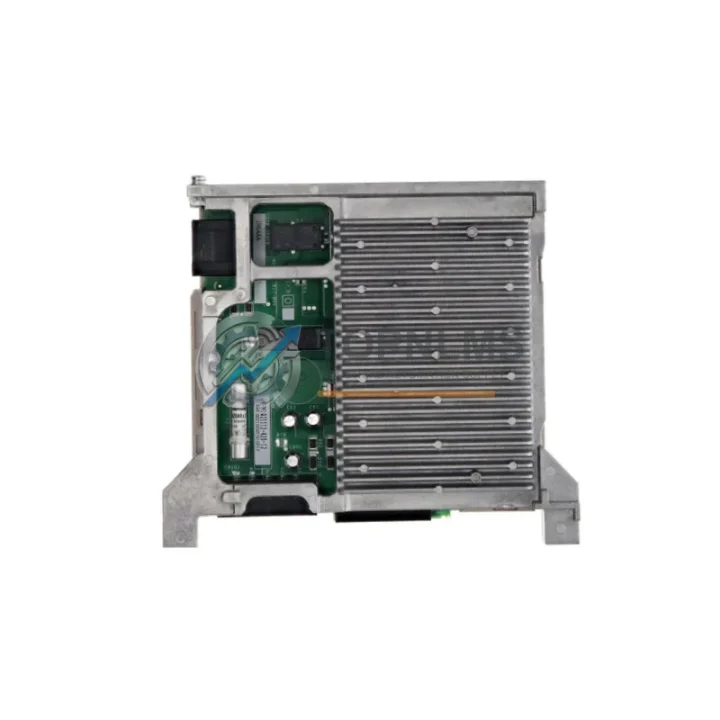

Yaskawa JANCD-ASF01-E SRDA-C0A12A01A-E Original Industrial Spare YRC1000 Compatible

Product Overview

Yaskawa JANCD-ASF01-E SRDA-C0A12A01A-E Original Industrial Spare YRC1000 Compatible: Ensuring System Stability in Demanding Automation Environments

In modern industrial automation, servo drive reliability is the backbone of uninterrupted production. The Yaskawa JANCD-ASF01-E and its paired servo amplifier board SRDA-C0A12A01A-E are critical original spare components within the YRC1000 robot controller ecosystem — one of Yaskawa’s most widely deployed motion control platforms across automotive, electronics, food processing, and heavy manufacturing industries.

When a YRC1000-based robotic cell experiences an unplanned shutdown, the root cause frequently traces back to a degraded or failed SERVOPACK drive unit. Sourcing a verified original replacement — not a counterfeit or refurbished substitute — is the single most effective action to restore full system performance, maintain motion accuracy, and protect the integrity of your existing control architecture. The JANCD-ASF01-E / SRDA-C0A12A01A-E unit ships tested, inspected, and ready for immediate installation, backed by a 12-month warranty.

Critical Technical Specs Table

Preventive Maintenance Strategy

A SERVOPACK drive failure rarely occurs in isolation. In a YRC1000 robot controller cabinet, the servo drive unit operates in close interdependence with a network of supporting components — and a disciplined preventive maintenance program addresses all of them together, not just the failed part.

When scheduling a maintenance window to replace the JANCD-ASF01-E / SRDA-C0A12A01A-E, experienced maintenance engineers routinely inspect and, where necessary, replace the following components in the same service cycle:

Power Supply Module (JZNC-YPS01-E or equivalent): The YRC1000 controller’s internal power supply feeds regulated DC voltage to all servo and control boards. A power supply showing output ripple or voltage drift under load is a leading indicator of imminent servo faults. Replacing a marginal power supply during the same downtime window eliminates a second unplanned outage within weeks.

Servo Control Board (JANCD-YSF21-E): This board handles the high-level motion command interface between the robot CPU and the SERVOPACK amplifier. If the JANCD-ASF01-E has failed due to an upstream command signal anomaly, the servo control board should be inspected for latent damage before the new drive unit is commissioned.

Regenerative Resistor Unit: During deceleration cycles, the YRC1000 SERVOPACK dissipates regenerative energy through a braking resistor. A degraded resistor causes overvoltage faults that can damage the new drive unit. Verify resistance values and thermal condition before returning the system to production.

Encoder Cable and Feedback Harness: Encoder signal integrity is critical for servo positioning accuracy. Cracked insulation, loose connectors, or shielding failures on the encoder feedback cable between the servo motor and the SRDA-C0A12A01A-E board are a common cause of recurring servo alarms. Inspect and replace any suspect cables during the same maintenance window.

I/O Interface Module (JANCD-YIO21-E or similar): The robot controller’s I/O module manages all digital input/output signals to peripheral equipment — safety gates, end-effectors, conveyors, and PLCs. A faulty I/O module can generate spurious fault signals that are misdiagnosed as servo drive failures. Confirming I/O module health before and after drive replacement prevents misdiagnosis.

Safety Control Board (JANCD-YSF21-E / FSU board): YRC1000 controllers incorporate a dedicated functional safety unit. If the robot has experienced an emergency stop event that triggered the drive failure, the safety board’s internal logs and relay contacts should be verified to confirm no latent safety fault remains active.

Cooling Fan Assembly: The YRC1000 cabinet relies on forced-air cooling to maintain safe operating temperatures for all servo and control electronics. Fan bearings degrade over 3–5 years of continuous operation. A failed cooling fan is one of the most common causes of thermal-induced SERVOPACK failure. Replacing the fan assembly proactively during a drive replacement is a low-cost, high-value action.

Terminal Block and Wiring Connections: Vibration and thermal cycling loosen terminal block connections over time. Loose power or signal wiring at the servo drive input terminals causes intermittent faults that are difficult to diagnose remotely. A full torque-check of all terminal connections is standard practice during any servo drive replacement.

Battery Backup Unit (for absolute encoder systems): If the MOTOMAN robot uses absolute encoders, the battery backup unit must be checked and replaced on schedule (typically every 3 years). A depleted battery causes encoder data loss on power-up, requiring a full robot mastering procedure — a time-consuming process that can be avoided with routine battery replacement.

Communication Module (DeviceNet / PROFIBUS / EtherNet/IP option board): Where the YRC1000 is integrated into a broader plant network via a fieldbus option board, the communication module should be inspected for firmware version compatibility and connector integrity whenever the controller is opened for maintenance.

Addressing all of these components in a single planned maintenance window — rather than reactively replacing each one as it fails — is the most cost-effective strategy for minimizing total downtime and extending the operational life of a YRC1000 robotic cell by 5–10 years beyond its nominal service life.

Strategic Replacement Solutions

Many manufacturing facilities operating Yaskawa MOTOMAN robots installed in the 2010s are now entering the phase where original YRC1000 SERVOPACK components are reaching end-of-life. Yaskawa’s official spare parts availability for legacy controller hardware can be limited, and lead times from authorized distributors often extend to 8–16 weeks — an unacceptable delay when a production line is down.

Maintaining a strategic inventory of the JANCD-ASF01-E / SRDA-C0A12A01A-E as a critical spare eliminates this risk entirely. A single unit held in a climate-controlled spare parts cabinet represents a fraction of the cost of one day of unplanned production downtime in a typical automotive or electronics assembly environment.

For facilities managing multiple YRC1000 controllers, a tiered spare parts strategy is recommended: hold one SERVOPACK drive unit per robot cell for immediate swap-out, maintain a secondary stock of power supply modules and I/O boards at the plant level, and establish a replenishment trigger to reorder within 30 days of consuming any critical spare. This approach ensures that a single component failure never cascades into a multi-day production disruption.

The JANCD-ASF01-E / SRDA-C0A12A01A-E is a direct original replacement for the factory-installed unit. No firmware modification, parameter re-mapping, or mechanical adaptation is required. After physical installation, the standard YRC1000 commissioning procedure — axis calibration, brake check, and trial operation — is sufficient to return the robot to full production status. This plug-and-play compatibility is a key advantage of sourcing original Yaskawa spare parts over aftermarket alternatives.

For aging systems where the YRC1000 controller itself is approaching obsolescence, maintaining a complete set of critical spare boards — including the SERVOPACK drive, servo control board, power supply, and safety board — provides a cost-effective alternative to full robot replacement, extending the productive life of the existing installation while a capital replacement project is planned and budgeted.

Support FAQ

Q1: Is the JANCD-ASF01-E / SRDA-C0A12A01A-E compatible with all YRC1000 robot controllers?
The JANCD-ASF01-E and SRDA-C0A12A01A-E are designed for use within the Yaskawa YRC1000 controller platform and are compatible with MOTOMAN robot models that use this controller generation. Compatibility depends on the specific robot model, axis configuration, and software version. We recommend confirming your robot’s controller serial number and software version before ordering. Our technical team can assist with compatibility verification prior to shipment.

Q2: What pre-shipment testing is performed on this unit?
Each JANCD-ASF01-E / SRDA-C0A12A01A-E unit undergoes functional inspection and electrical testing before shipment. Units are verified for correct power-up behavior, absence of fault codes, and integrity of all connector interfaces. The unit ships with a test report and is covered by a 12-month warranty against manufacturing defects and functional failure under normal operating conditions.

Q3: How should this spare part be stored if not immediately installed?
Store the unit in its original anti-static packaging in a clean, dry environment at 15–25°C with relative humidity below 75% (non-condensing). Avoid exposure to direct sunlight, corrosive gases, or strong electromagnetic fields. Inspect the unit annually if held in long-term storage, and verify connector and board condition before installation. Properly stored, the unit maintains full functionality for 3–5 years in reserve stock.

Q4: What is the lead time and shipping arrangement?
In-stock units ship within 1–3 business days. International shipments are dispatched via DHL, FedEx, or UPS Express with full tracking. Export documentation, including commercial invoice and packing list, is provided for customs clearance. For urgent requirements, expedited shipping options are available — contact us directly to confirm stock availability and arrange priority dispatch.
