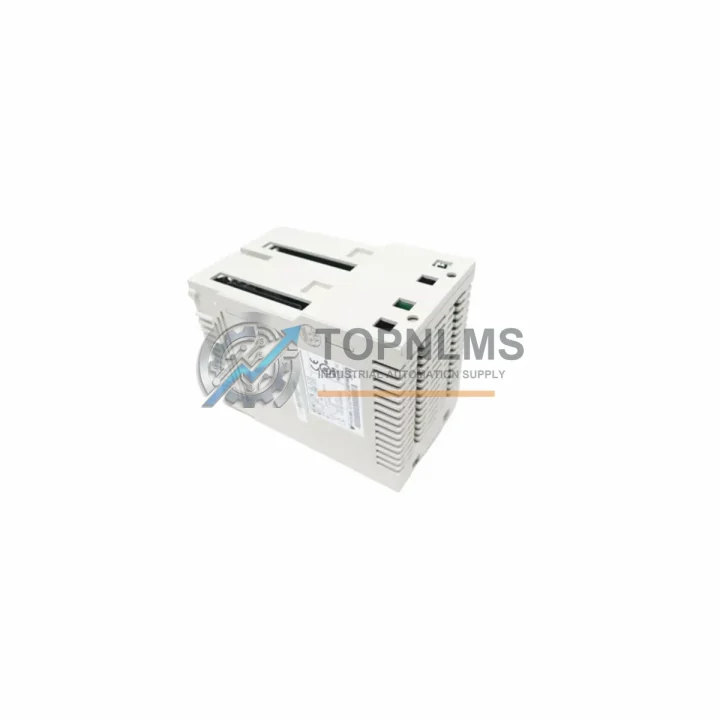

YASKAWA JAMSC-120MMB20230 Ruggedized Pulse Output Module for Harsh Environments

Product Overview

YASKAWA JAMSC-120MMB20230 Ruggedized Pulse Output Module for Harsh Environments

The YASKAWA JAMSC-120MMB20230 is a high-performance pulse output controller module engineered for the Sigma-II servo drive series, purpose-built to deliver unwavering reliability in the most demanding industrial environments. Designed to operate continuously in conditions characterized by extreme temperatures, high humidity, pervasive dust, mechanical vibration, and intense electromagnetic interference (EMI), this module represents the gold standard in ruggedized motion control for critical automation infrastructure.

Industrial facilities — from petrochemical refineries and offshore platforms to underground mining operations and high-voltage power substations — demand components that perform without compromise. The JAMSC-120MMB20230 meets this challenge with a robust hardware architecture that maintains precise pulse output signals even when subjected to the electrical noise generated by large variable frequency drives (VFDs), high-current contactors, and adjacent power distribution equipment. Its shielded signal paths and onboard filtering circuits suppress common-mode interference, ensuring that the servo positioning commands transmitted to YASKAWA SGDH and SGDS series servo amplifiers remain accurate and stable throughout the production cycle.

In continuous production lines — such as steel rolling mills, paper manufacturing, and automotive body welding — even a momentary control interruption can cascade into costly downtime. The JAMSC-120MMB20230 is engineered for 24/7 operation, with a wide operating temperature range and conformal-coated PCB construction that resists moisture ingress and corrosive airborne contaminants common in chemical processing and water treatment plants. Its compact DIN-rail-compatible form factor integrates seamlessly into standard control cabinets alongside YASKAWA MP2000 series machine controllers, JEPMC-IO2310 I/O expansion modules, and JEPMC-BU2200 bus converter units, enabling a fully coordinated motion and I/O architecture without additional signal conditioning hardware.

The module’s pulse output interface supports both differential line-driver and open-collector output modes, making it compatible with a broad range of encoder feedback configurations and third-party PLC systems. When deployed within a Sigma-II servo network, the JAMSC-120MMB20230 works in concert with SGDH servo amplifiers, JUSP-NS600 DeviceNet option cards, and JEPMC-MP2300 motion controllers to deliver synchronized multi-axis positioning with sub-millisecond cycle times. This level of integration is essential in applications such as CNC machining centers, robotic welding cells, and high-speed packaging lines where axis coordination directly impacts product quality and throughput.

For safety-critical installations, the JAMSC-120MMB20230 supports integration with safety relay modules and hardwired emergency stop circuits, ensuring that servo motion can be halted instantaneously in response to safety PLC commands or field-level safety sensors. In hazardous area applications — including Zone 2 classified environments in oil and gas facilities — the module can be housed in certified explosion-proof or purged-and-pressurized enclosures, with its low-power signal interface minimizing ignition risk. Paired with YASKAWA JEPMC-IO2310 distributed I/O modules and Profibus or DeviceNet communication option cards, the system delivers a complete, safety-aware motion control solution that satisfies both IEC 61508 functional safety guidelines and site-specific hazardous area requirements.

Procurement engineers and maintenance planners will appreciate the JAMSC-120MMB20230’s direct form-fit-function compatibility with existing Sigma-II installations, eliminating the need for firmware reconfiguration or mechanical modification during spare-parts replacement. TOPNLMS maintains verified stock of this module, with each unit subjected to pre-shipment functional testing — including pulse output signal integrity verification, power supply rail checks, and connector contact resistance measurement — before dispatch. This ensures that replacement modules arrive ready for immediate installation, minimizing mean time to repair (MTTR) in the event of an unplanned failure.

Rugged Specifications Table

Comprehensive Protection Solutions

The JAMSC-120MMB20230 is rarely deployed in isolation — its true value emerges when integrated into a layered protection and control architecture. In a typical Sigma-II servo system, the module interfaces directly with YASKAWA SGDH servo amplifiers, which provide closed-loop current control and regenerative braking capability essential for safe deceleration in emergency stop scenarios. The JEPMC-MP2300 motion controller coordinates multi-axis trajectories, while JEPMC-IO2310 distributed I/O modules handle field-level digital and analog signals from proximity sensors, limit switches, and pressure transmitters.

Power quality and continuity are maintained through YASKAWA JZRCR series industrial power supplies, which provide regulated 24 VDC control power with built-in overvoltage and short-circuit protection. In installations where network communication is required, JUSP-NS600 DeviceNet option cards or JUSP-PB04B Profibus-DP adapters extend the servo system into the plant-wide DCS or SCADA network, enabling remote diagnostics and parameter monitoring without interrupting production. Safety integrity is reinforced by hardwired safety relay modules — such as those from the YASKAWA JEPMC safety range — that monitor E-stop circuits and gate interlock signals, cutting servo enable signals within the SIL 2 response time required by IEC 62061.

For cabinet-level thermal management, the JAMSC-120MMB20230’s low self-heating design reduces the cooling load on enclosure air conditioners and heat exchangers, extending the service life of adjacent components including terminal blocks, cable glands, and DIN-rail mounted circuit breakers. This holistic approach to system design — combining ruggedized motion control, distributed I/O, safety relays, industrial communications, and reliable power distribution — is what TOPNLMS recommends and supports for customers building or maintaining critical automation infrastructure.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the JAMSC-120MMB20230 controls servo-driven valve actuators and pump drives that must respond precisely to process control commands while withstanding the hydrocarbon-laden, corrosive atmospheres present on wellheads and compressor stations. Its EMI-hardened design ensures that pulse output signals remain uncorrupted even when routed through cable trays shared with high-voltage motor feeders.

In underground coal and metal mining operations, the module drives conveyor belt servo systems and longwall shearer positioning mechanisms, where mechanical shock and vibration levels far exceed those encountered in typical factory automation. The conformal-coated PCB and robust connector design maintain electrical integrity in the high-humidity, dust-laden tunnels where standard industrial components frequently fail prematurely.

Power generation facilities — including thermal, hydro, and wind — rely on Sigma-II servo systems for turbine governor positioning, pitch control, and auxiliary equipment automation. The JAMSC-120MMB20230’s wide operating temperature range accommodates the thermal cycling inherent in outdoor nacelle installations and indoor turbine hall environments alike. In water and wastewater treatment plants, the module controls servo-driven sluice gates, chemical dosing pumps, and filter press mechanisms, where continuous operation and resistance to chemical vapors are non-negotiable requirements.

Metallurgical and heavy industry applications — including electric arc furnace electrode positioning, rolling mill gap control, and continuous casting mold oscillation — place extreme demands on motion control hardware. The JAMSC-120MMB20230’s ability to deliver consistent pulse output accuracy under high electromagnetic noise conditions, generated by large thyristor drives and induction heating equipment, makes it the preferred choice for maintenance engineers responsible for keeping these high-value production assets online.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If a unit fails within the warranty period, TOPNLMS will arrange replacement or repair at no additional cost. Claims are initiated by contacting [email protected] with the order reference and a description of the fault. Replacement units are dispatched from verified stock, typically within 3–5 business days of claim confirmation.

Q2: How is each JAMSC-120MMB20230 unit tested before shipment?
Every unit undergoes a pre-shipment functional test protocol that includes pulse output signal integrity verification across all output channels, power supply rail voltage and ripple measurement, connector contact resistance testing, and visual inspection for physical damage or counterfeit indicators. Only units that pass all test criteria are released for dispatch. Test records are retained and can be provided upon request for quality audit purposes.

Q3: Is the JAMSC-120MMB20230 compatible with my existing Sigma-II installation without firmware changes?
Yes. The JAMSC-120MMB20230 is a direct form-fit-function replacement for the original Sigma-II pulse output controller module. No firmware reconfiguration, parameter re-entry, or mechanical modification is required. The module is plug-compatible with SGDH and SGDS series servo amplifiers and JEPMC-MP2300 motion controllers. If your installation uses a non-standard wiring configuration, TOPNLMS technical support can review your system drawings prior to shipment to confirm compatibility.

Q4: Can TOPNLMS guarantee long-term supply for ongoing maintenance programs?
TOPNLMS maintains a dedicated inventory of YASKAWA Sigma-II series spare parts, including the JAMSC-120MMB20230, to support customers with long-term maintenance contracts and planned shutdown schedules. For customers requiring guaranteed availability over a multi-year horizon, we offer reserved stock arrangements. Contact [email protected] or call +86 18359293191 to discuss your long-term supply requirements.
