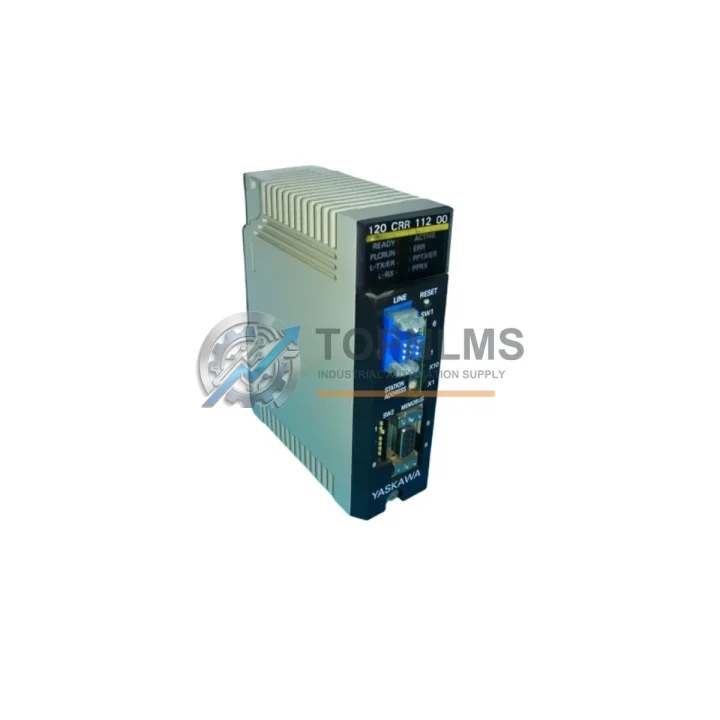

YASKAWA JAMSC-120CRR11200 Original Industrial Spare JAMSC

Product Overview

YASKAWA JAMSC-120CRR11200 Original Industrial Spare — JAMSC Series System Stability & Maintenance Value

The YASKAWA JAMSC-120CRR11200 is an original Remote I/O Receiver Module from YASKAWA’s JAMSC Series, engineered for high-reliability distributed I/O communication in industrial automation environments. Whether you are managing a planned shutdown, responding to an unscheduled fault, or building a strategic spare parts inventory, the JAMSC-120CRR11200 is a mission-critical component that directly determines the uptime of your control system.

In modern manufacturing plants, process facilities, and discrete automation lines, the Remote I/O architecture underpins the entire field-device communication layer. A failed or degraded receiver module can cascade into full line stoppages, production loss, and costly emergency procurement. Stocking a verified original JAMSC-120CRR11200 eliminates that risk and gives your maintenance team the confidence to execute fast, clean replacements without compatibility guesswork.

Critical Technical Specs

Preventive Maintenance Strategy

Experienced maintenance engineers know that a Remote I/O Receiver Module like the JAMSC-120CRR11200 rarely fails in isolation. When inspecting or replacing this module during a scheduled outage, it is best practice to simultaneously audit the surrounding components that share the same communication loop and power rail.

Start with the JAMSC-120CTR11200 Remote I/O Transmitter Module — the paired transmitter on the controller side. If the receiver is showing communication faults, the transmitter’s optical or electrical interface may be equally degraded. Replacing both during the same maintenance window eliminates a second unplanned outage within weeks.

Next, inspect the JAMSC Series base unit and backplane. Backplane connector wear and oxidation are common in high-vibration or high-humidity environments and can cause intermittent I/O dropouts that are misdiagnosed as module failures. While the cabinet is open, check the JAMSC-120DIO11200 Digital I/O Module and any installed JAMSC-120AIO analog I/O modules for status LED anomalies and connector seating.

The communication cable connecting the Remote I/O network — typically a shielded twisted-pair or coaxial segment — should be inspected for insulation damage, connector corrosion, and proper termination resistance. A degraded cable can cause the JAMSC-120CRR11200 to report communication errors even when the module itself is healthy. Replacing the YASKAWA JZSP-series communication cables at the same time as the module is a low-cost, high-value step.

For systems running on YASKAWA MP2000 or CP-9200SH controllers, also verify the JAMSC-120CPU controller module firmware version and battery status. A low controller battery can corrupt I/O mapping tables and produce symptoms that appear to originate in the remote I/O layer. The JEPMC-MB2000 motion controller base module and associated JEPMC-IO2310 I/O expansion modules in the same rack should be visually inspected for swollen capacitors or burn marks.

Finally, review the 24VDC power supply module feeding the Remote I/O station. Voltage sag under load is a leading cause of receiver module resets and communication timeouts. Stocking a spare YASKAWA JAMSC-series power supply unit alongside the JAMSC-120CRR11200 gives your team a complete first-response kit for any Remote I/O station fault.

Strategic Replacement Solutions

The JAMSC-120CRR11200 is a legacy-compatible module designed to drop into existing JAMSC Series Remote I/O stations without requiring controller reprogramming or I/O address remapping. This direct replaceability is its most important maintenance attribute: your team can execute a hot-swap replacement during a brief planned stop, restore communication, and return the line to production — all within a single shift.

For facilities managing aging YASKAWA CP-9200SH or MP900 systems, the challenge is not just finding a replacement module — it is finding an original one that has been properly stored, tested, and documented. Counterfeit or improperly refurbished modules may pass initial power-on checks but fail under thermal cycling or communication load within weeks. Every JAMSC-120CRR11200 shipped from TOPNLMS is function-verified prior to dispatch and covered by a 12-month warranty, giving procurement and maintenance teams a documented, auditable spare parts record.

For facilities planning a longer-term migration from CP-9200SH to MP2000 Series architecture, the JAMSC Remote I/O infrastructure can be retained during the transition period, reducing the capital cost and risk of a full cutover. Stocking original JAMSC-120CRR11200 modules supports this bridge strategy by ensuring the legacy I/O layer remains stable while the controller upgrade is phased in.

Support FAQ

Q1: Is the JAMSC-120CRR11200 compatible with both CP-9200SH and MP900 Series systems?
Yes. The JAMSC-120CRR11200 is designed for the JAMSC Series Remote I/O platform, which is used across YASKAWA CP-9200SH and MP900 controller families. Always verify the base unit slot assignment and I/O station address configuration matches your existing system before installation.

Q2: What testing is performed before shipment?
Each unit undergoes functional verification including communication interface check, power-on self-test, and visual inspection for connector and PCB integrity. A test record is available upon request. All units are shipped with a 12-month warranty from the date of dispatch.

Q3: How should I manage spare parts inventory for aging JAMSC Series systems?
For systems with 5+ years of remaining operational life, we recommend holding a minimum of one JAMSC-120CRR11200 receiver module and one paired transmitter module on-site. For multi-station Remote I/O networks, a ratio of one spare per four active stations is a common industry benchmark. Coordinate with your MRO procurement team to align reorder points with lead times.

Q4: Can I verify compatibility before committing to a purchase?
Yes. Contact our technical team with your controller model, Remote I/O station configuration, and existing module part numbers. We will confirm compatibility and, where applicable, identify any firmware or hardware revision considerations before shipment.
