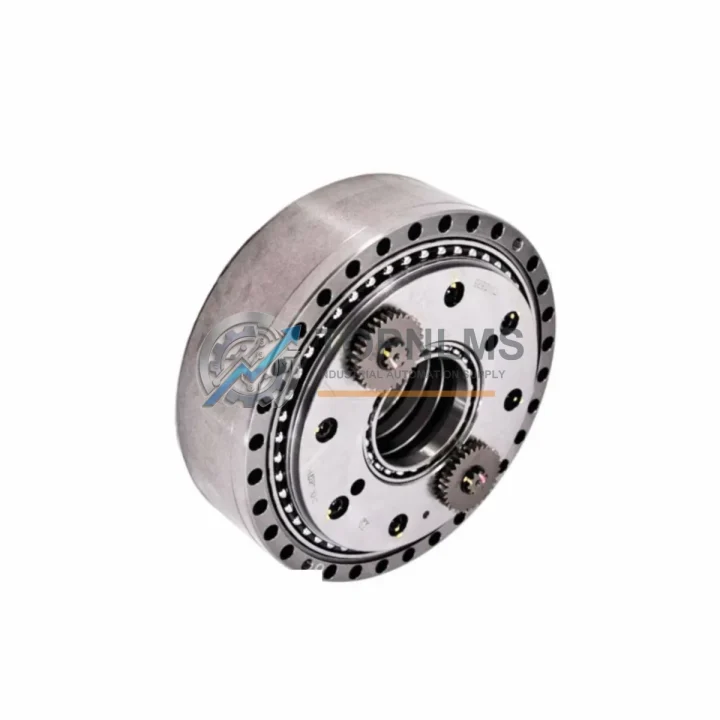

Yaskawa HW0380219-A-HP-25A-11-F0-SP Ruggedized Reducer Module

Product Overview

Yaskawa HW0380219-A-HP-25A-11-F0-SP Ruggedized Reducer Module: Industrial Resilience for Harsh Environments

The Yaskawa HW0380219-A-HP-25A-11-F0-SP is a precision-engineered Harmonic Drive Reducer designed for the Motoman robot series, delivering exceptional torque transmission accuracy and mechanical durability in the most demanding industrial environments. Whether deployed on a continuous automotive welding line, a high-cycle palletizing cell, or a heavy-duty arc welding station, this joint-axis reducer is built to maintain zero-backlash performance under sustained mechanical stress, thermal cycling, and vibration loads that would compromise lesser components.

In modern industrial automation, the reliability of every axis joint directly determines the uptime of the entire robotic cell. The HW0380219-A-HP-25A-11-F0-SP serves as the critical torque-multiplying interface between the Yaskawa servo motor and the robot arm structure, ensuring precise angular positioning across thousands of duty cycles per shift. Its compact, sealed construction resists ingress of metal dust, coolant mist, and airborne particulates — conditions routinely encountered in metalworking, foundry, and heavy fabrication environments.

Rugged Specifications Table

Comprehensive Protection Solutions

The HW0380219-A-HP-25A-11-F0-SP does not operate in isolation — it is one precision node within a tightly integrated Yaskawa robotic control architecture. In a fully configured Motoman cell, this reducer works in concert with the Yaskawa SGMAH or SGMPH series AC servo motors, which deliver the input torque that the harmonic drive then multiplies and transmits to the robot arm. The Yaskawa CACR-SR servo amplifier or SERVOPACK SGDV unit governs motor commutation and position feedback, while the DX200 or YRC1000 robot controller coordinates all axes simultaneously through high-speed EtherCAT or Mechatrolink-III communication.

For system integrators building or maintaining a complete Motoman workcell, the reliability of the HW0380219-A-HP-25A-11-F0-SP is complemented by the Yaskawa NX100 or DX100 controller I/O modules, which handle digital and analog signal interfacing with peripheral safety devices, conveyors, and vision systems. The Yaskawa JZNC-YIU01-E I/O unit and associated terminal modules ensure that safety interlocks — including emergency stop circuits, light curtain inputs, and area scanner signals — are processed with the deterministic timing required by IEC 62061 and ISO 13849 functional safety standards.

In high-EMI environments such as resistance welding stations or induction heating lines, the integrity of the servo feedback loop depends on shielded encoder cables and properly grounded cable trays. Pairing this reducer with Yaskawa-specified encoder cables (JZSP-CVP series) and the correct servo motor flange adapter ensures that positional accuracy is maintained even when high-frequency switching noise from nearby inverter drives — such as the Yaskawa A1000 or V1000 variable frequency drive — is present on the plant floor. Proper grounding of the robot base and controller cabinet, along with ferrite core suppression on signal lines, further protects the harmonic drive’s feedback integrity.

For facilities operating 24/7 continuous production lines in automotive, electronics, or food and beverage manufacturing, maintaining a critical spare inventory of the HW0380219-A-HP-25A-11-F0-SP is a proven strategy to minimize mean time to repair (MTTR). A single unplanned robot downtime event can halt an entire production line; having a tested, certified replacement reducer on the shelf reduces recovery time from days to hours. TOPNLMS stocks this part alongside complementary Motoman spare components including cross-roller bearings, wave generators, and flex spline assemblies to support comprehensive preventive maintenance programs.

Application in Critical Infrastructure

The Yaskawa HW0380219-A-HP-25A-11-F0-SP finds its most demanding deployments in critical infrastructure sectors where robotic automation is no longer optional — it is the backbone of production continuity and worker safety.

In automotive body-in-white manufacturing, Motoman robots equipped with this reducer perform thousands of spot welds per shift on vehicle body panels. The reducer must maintain sub-millimeter repeatability across temperature swings caused by weld spatter heat and HVAC cycling in large press shops. Any degradation in joint accuracy directly translates to weld quality defects and potential structural failures in the finished vehicle.

In oil and gas pipeline fabrication yards, Motoman arc welding robots using this joint reducer operate in open-air environments exposed to salt air, humidity, and wind-driven abrasive particles. The sealed construction of the HW0380219-A-HP-25A-11-F0-SP is essential to preventing premature wear of the flex spline and wave generator components that are the heart of the harmonic drive mechanism.

In metallurgical and foundry operations, robots handle molten metal ladles, perform die casting extraction, and execute grinding and deburring tasks in environments with extreme radiant heat, metal dust, and vibration. The thermal stability and mechanical robustness of this reducer make it a preferred choice for joint axes that must sustain high torque loads at elevated ambient temperatures.

In power generation and utility infrastructure, robotic inspection and maintenance systems deployed in turbine halls, transformer yards, and nuclear facility maintenance zones rely on the precision and reliability of Yaskawa Motoman platforms. The zero-backlash characteristic of the harmonic drive reducer is critical for inspection robots that must position sensors and cameras with repeatable accuracy in confined, high-value environments.

In pharmaceutical and medical device manufacturing, cleanroom-compatible Motoman robots use this reducer in assembly and packaging applications where particulate generation must be minimized. The grease-packed, sealed design of the HW0380219-A-HP-25A-11-F0-SP supports cleanroom deployment by containing lubricant within the unit and preventing external contamination ingress.

Security & Quality FAQ

Q1: What warranty coverage is provided with the HW0380219-A-HP-25A-11-F0-SP?
All units supplied by TOPNLMS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional inspection including dimensional verification and rotational resistance testing. If a warranty claim arises, TOPNLMS provides direct technical support and replacement coordination without requiring third-party intermediaries.

Q2: How is compatibility with my specific Motoman robot model confirmed before shipment?
TOPNLMS technical staff cross-reference the customer’s robot model number, axis designation, and existing part number against Yaskawa’s official BOM and service manual data. The HW0380219-A-HP-25A-11-F0-SP is confirmed compatible with multiple Motoman MA, MH, MS, HP, and UP series models. Customers are encouraged to provide their robot serial number and axis location for definitive confirmation prior to order placement.

Q3: What pre-shipment testing and inspection procedures are applied?
Each unit is visually inspected for housing integrity, flange surface condition, and seal completeness. Rotational smoothness is verified by hand-cycling through the full output range to detect any binding, roughness, or abnormal resistance indicative of internal damage. Units with any cosmetic or functional anomaly are quarantined and not shipped. A test record accompanies each shipment upon request.

Q4: Can TOPNLMS support long-term or recurring supply of this part for planned maintenance programs?
Yes. TOPNLMS maintains standing inventory of high-demand Motoman spare parts and can support blanket purchase orders, scheduled delivery programs, and emergency expedite requests. For facilities with multiple Motoman robots of the same model, TOPNLMS can provide volume pricing and reserved stock arrangements to ensure parts availability aligns with your planned maintenance intervals and production shutdown windows.
