YASKAWA F350604-1 Replacement for AC Drive Series: Smooth Transition, Zero Compromise

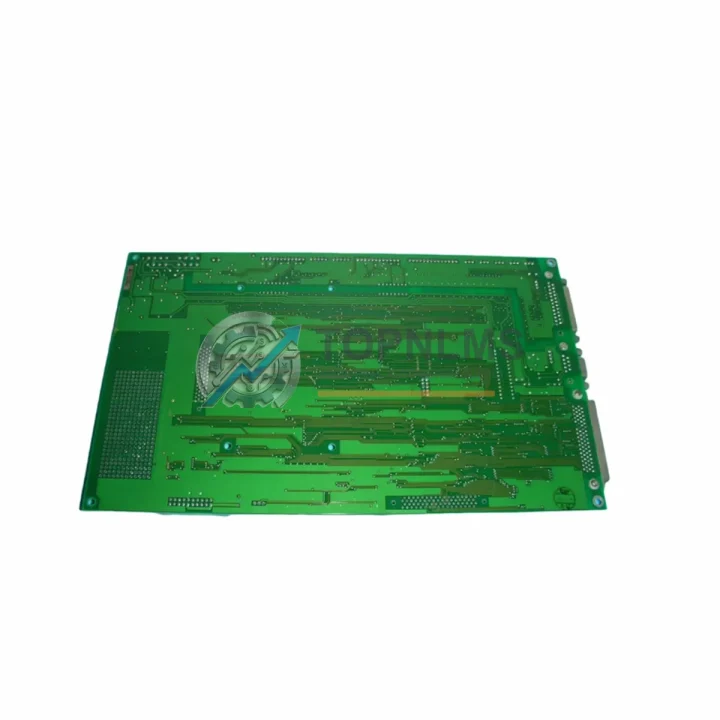

When a legacy AC drive control board fails on the production floor, every minute of unplanned downtime translates directly into lost output and escalating maintenance costs. The YASKAWA F350604-1 is a genuine AC drive control board engineered for seamless drop-in replacement within YASKAWA’s established drive architecture. Whether you are migrating away from an aging CIMR-series drive platform or simply replacing a failed board in an existing cabinet, the F350604-1 delivers the electrical compatibility, signal integrity, and firmware alignment that industrial engineers demand from a mission-critical spare.

YASKAWA’s drive control boards are the nerve center of variable frequency drive (VFD) systems. The F350604-1 governs PWM signal generation, feedback processing, fault diagnostics, and communication handshaking between the drive’s power stage and the plant-level control network. Its architecture is designed to interface directly with YASKAWA’s standard gate driver boards and power modules, eliminating the need for custom wiring adapters or signal conditioning hardware during replacement.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful AC drive control board replacement rarely happens in isolation. In most industrial retrofit projects, the F350604-1 is installed alongside a coordinated set of components to ensure the entire drive system is restored to full operational integrity. During commissioning, engineers typically verify the condition of the YASKAWA gate driver board, which interfaces directly with the IGBT power module stack and must be confirmed fault-free before the new control board is energized. The drive’s internal power supply board should also be inspected, as a degraded PSU is a common root cause of repeated control board failures.

For plants running YASKAWA CIMR-F7 or CIMR-G7 series drives, the F350604-1 integrates directly with the existing I/O terminal board, preserving all analog speed reference inputs, digital run/stop commands, and fault relay outputs without any rewiring. If the site uses a PROFIBUS-DP or DeviceNet communication option card installed in the drive’s option slot, that card remains fully compatible and does not need to be replaced during the control board swap.

In larger control cabinet installations where multiple drives share a common DC bus, replacing the F350604-1 in one drive unit does not affect the operation of adjacent YASKAWA drives on the same bus. The replacement process is isolated to the individual drive frame. For sites that use a YASKAWA DriveWizard programming interface or a dedicated RS-485 programming cable to back up and restore drive parameters, it is strongly recommended to perform a full parameter upload from the original drive before the board swap and a parameter download to the replacement board immediately after installation.

Plants that have integrated YASKAWA drives with a Siemens S7-series PLC or an Allen-Bradley ControlLogix controller via Modbus RTU will find that the F350604-1 maintains the same register map and baud rate settings, ensuring the PLC program requires no modification. Similarly, sites using a YASKAWA operator keypad (digital operator panel) for local speed adjustment and fault monitoring can reconnect the existing keypad to the replacement board without any configuration changes.

Application in Critical Infrastructure

The YASKAWA F350604-1 control board is deployed across a wide range of heavy industrial environments where drive reliability is non-negotiable. In water and wastewater treatment facilities, YASKAWA AC drives control submersible pump motors and blower systems that must operate continuously across varying load profiles. A failed control board in this context can disrupt aeration cycles or pressure zones, making rapid replacement with a pre-tested F350604-1 essential to restoring normal operations within the same maintenance window.

In the oil and gas sector, YASKAWA drives are used to control compressor motors, wellhead pump jacks, and pipeline booster stations. The F350604-1’s compatibility with the existing drive frame means that field engineers can execute a board-level replacement without removing the entire drive from the panel, significantly reducing the time the system is offline. In mining operations, where conveyor belt drives and crusher motor controllers are subject to high vibration and thermal cycling, the ability to swap a control board without reconfiguring the drive’s parameter set is a critical operational advantage.

Metallurgical plants and steel mills rely on YASKAWA drives for rolling mill speed control and furnace exhaust fan regulation. In these environments, the F350604-1 is stocked as a critical spare to support planned maintenance shutdowns and emergency breakdowns alike. Power generation facilities use YASKAWA drives on cooling tower fan motors and boiler feed pump auxiliaries, where the F350604-1 provides a cost-effective alternative to full drive replacement when only the control board has failed.

Retrofit Guidance FAQ

Q1: Do I need to reconfigure drive parameters after installing the F350604-1?
Yes. The replacement control board ships in a factory-default state. It is essential to back up all parameters from the original drive using a YASKAWA DriveWizard interface or the digital operator keypad before the swap, then restore those parameters to the new board after installation. This preserves motor tuning data, acceleration/deceleration ramps, fault history thresholds, and communication settings without requiring a full recommissioning from scratch.

Q2: Is the F350604-1 compatible with my existing MEMOBUS/Modbus RTU wiring and PLC program?
Yes. The F350604-1 maintains the same MEMOBUS/Modbus RTU register map and RS-485 physical interface as the original board. Your existing PLC program, HMI communication configuration, and RS-485 cable termination do not require modification. Verify baud rate and station address settings match the backed-up parameter file after installation.

Q3: Can I replace the F350604-1 without removing the drive from the control cabinet?
In most YASKAWA drive frame sizes, the control board can be accessed and replaced with the drive frame in situ, provided the drive is fully de-energized, locked out, and the DC bus capacitors have discharged. Always follow YASKAWA’s published lockout/tagout procedure and verify zero voltage on the DC bus terminals before handling any internal components.

Q4: What if my original drive model is discontinued — will the F350604-1 still fit?
The F350604-1 is designed for specific YASKAWA drive frame variants. TOPNLMS technical support can cross-reference your original drive model number against the F350604-1 compatibility matrix before shipment to confirm fitment. If your exact frame variant requires a different board revision, we will advise accordingly and source the correct part to avoid a misfit installation.

Warranty Assurance

Every YASKAWA F350604-1 control board shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes a multi-point functional inspection that includes visual examination for PCB damage, component integrity checks, and where applicable, powered bench testing to verify the board’s core control functions are operational. Units that do not pass inspection are quarantined and never shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund based on the nature of the defect and the customer’s preference. Our after-sales response target is within 24 business hours of a warranty claim submission. Customers are required to retain the original packaging and provide a brief fault description to initiate the warranty process. TOPNLMS does not require the customer to return the defective unit before dispatching a replacement in cases where the fault is clearly documented.

All orders are processed and dispatched from our Xiamen warehouse, with DHL Express, FedEx International Priority, and sea freight options available depending on order volume and urgency. Tracking information is provided at the time of shipment. For time-critical plant shutdowns, expedited same-day dispatch is available for in-stock units confirmed before 14:00 CST.
