WOODWARD 9905-760 Replacement Solution for 9905 Series

Product Overview

WOODWARD 9905-760 Replacement Solution for 9905 Series: Smooth Migration from Legacy Bus Termination Architecture

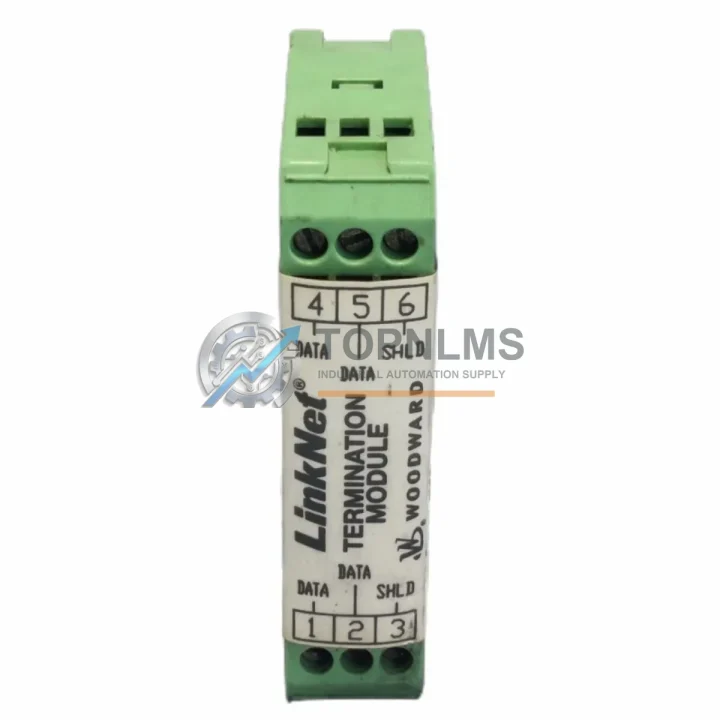

The WOODWARD 9905-760 Bus Termination Resistor Module is a critical passive component within the WOODWARD 9905 Series distributed control platform, designed to terminate the proprietary communication bus and prevent signal reflection that can cause data corruption across connected I/O modules and controller nodes. As WOODWARD progressively phases out legacy 9905 Series hardware, many industrial facilities operating gas turbines, steam turbines, and reciprocating engines are now facing the challenge of sourcing reliable replacement units or planning a structured migration to supported hardware generations.

TOPNLMS maintains verified stock of the 9905-760 and provides full migration consultation for facilities transitioning away from end-of-life WOODWARD control architectures. Whether your plant is performing a like-for-like spare replacement or executing a phased upgrade to the WOODWARD MicroNet or ProTech platform, this module is a direct drop-in for existing 9905 Series rack installations.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 9905-760 replacement or 9905 Series migration rarely involves a single component. In practice, field engineers replacing this termination module are typically also auditing adjacent hardware in the same control cabinet. The 9905-Series rack commonly houses analog and digital I/O modules such as the WOODWARD 9905-459 and 9905-466, which interface directly with field sensors, actuators, and valve positioners. Ensuring these I/O modules are also in serviceable condition is essential before commissioning a replacement termination module, as a degraded I/O card can produce bus errors that are incorrectly attributed to termination faults.

For facilities running redundant governor control architectures, the WOODWARD 9905-032 and 9905-028 controller modules are frequently found in the same rack. These controllers depend on correct bus termination to maintain deterministic scan cycles and reliable inter-module communication. A faulty or missing termination resistor module can cause intermittent controller faults, spurious trips, or communication timeouts that are difficult to diagnose without first confirming termination integrity.

Power supply integrity is equally critical during a termination module swap. The WOODWARD 9905-791 power supply module, commonly installed in the same 9905 Series cabinet, must deliver stable DC bus voltage to the backplane during the replacement procedure. Any voltage sag during hot-swap or power cycling can stress other modules in the rack. We recommend verifying power supply output before and after the 9905-760 replacement.

If your migration scope extends beyond the 9905 Series into a broader platform upgrade — for example, transitioning to the WOODWARD MicroNet TMR or MicroNet Plus — the communication architecture changes significantly. In that scenario, PROFIBUS DP or Modbus RTU communication modules, along with updated HMI panels and programming cables compatible with the ToolKit configuration software, will be required. TOPNLMS can source these components as part of a coordinated upgrade package to minimize the number of separate procurement events and reduce overall project lead time.

For sites where the 9905 Series cabinet is integrated with a broader DCS via hardwired analog signals or serial links, signal isolators and terminal block assemblies may need to be reviewed to ensure loop integrity is maintained after the module swap. Marshalling cabinets connected to the 9905 rack via multi-core cables should be verified for correct shield grounding and termination resistance at both ends of each signal run.

Retrofit Guidance FAQ

Q: Can I replace the 9905-760 without powering down the entire control system?
A: The 9905-760 is a passive resistor module with no active logic. In most 9905 Series installations, the module can be swapped with the rack powered, but WOODWARD’s standard maintenance practice recommends placing the governor in manual control mode and confirming a safe operating state before any rack-level intervention. Always follow your site’s Management of Change (MOC) procedure.

Q: Will replacing the 9905-760 require any changes to the controller program or configuration?
A: No. The 9905-760 is a passive termination component. It contains no firmware, no configurable parameters, and no software interface. Replacement requires no changes to the WOODWARD ToolKit configuration, ladder logic, or function block program loaded in the 9905 Series controller.

Q: How do I confirm the 9905-760 is the cause of my bus communication errors?
A: Bus termination faults typically manifest as intermittent communication errors between the controller and I/O modules, particularly at higher bus speeds or over longer cable runs. Verify termination resistance across the bus connector with a calibrated multimeter (with the rack powered down). The expected resistance value should match the WOODWARD 9905 Series hardware manual specification. A reading significantly outside tolerance confirms a failed termination module.

Q: Is the 9905-760 compatible with all slot positions in the 9905 Series rack?
A: The termination module is designed for the designated termination slot at the end of the 9905 Series bus. Installing it in a standard I/O slot will not provide the intended termination function. Refer to the rack layout diagram in the WOODWARD 9905 Series hardware manual to confirm the correct installation position.

Q: What is the lead time for the 9905-760 from TOPNLMS?
A: In-stock units ship within 1–3 business days from our Xiamen warehouse. International shipments to Southeast Asia, the Middle East, and Europe typically arrive within 5–10 business days via DHL Express or FedEx International Priority. Expedited same-day dispatch is available for urgent plant breakdown situations — contact us directly at [email protected] or +86 18359293191.

Warranty Assurance

Every WOODWARD 9905-760 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each unit undergoes a pre-shipment inspection that includes visual examination for physical damage, connector pin integrity check, and resistance verification against OEM specification. Units that do not pass inspection are quarantined and not offered for sale.

In the event of a warranty claim, TOPNLMS will assess the reported fault within 2 business days of receiving the returned unit. If the fault is confirmed as a manufacturing defect or a unit-level failure not caused by installation error or external damage, a replacement unit will be dispatched at no additional cost. Where a direct replacement is not immediately available, a full refund will be issued.

Our after-sales support team is available Monday through Saturday, 09:00–18:00 CST, to assist with installation questions, compatibility verification, and warranty claims. For urgent breakdown support outside business hours, emergency contact is available via WhatsApp at +86 18359293191.

TOPNLMS is committed to supporting industrial facilities that depend on legacy WOODWARD control hardware. We maintain a dedicated inventory of 9905 Series components specifically to serve customers who cannot wait for standard OEM lead times or who are sourcing parts for systems that WOODWARD no longer actively supports.
