WOODWARD 5501-470 Replacement Solution for MicroNet Series

Product Overview

WOODWARD 5501-470 Replacement Solution for MicroNet Series: Seamless Transition & Legacy System Compatibility

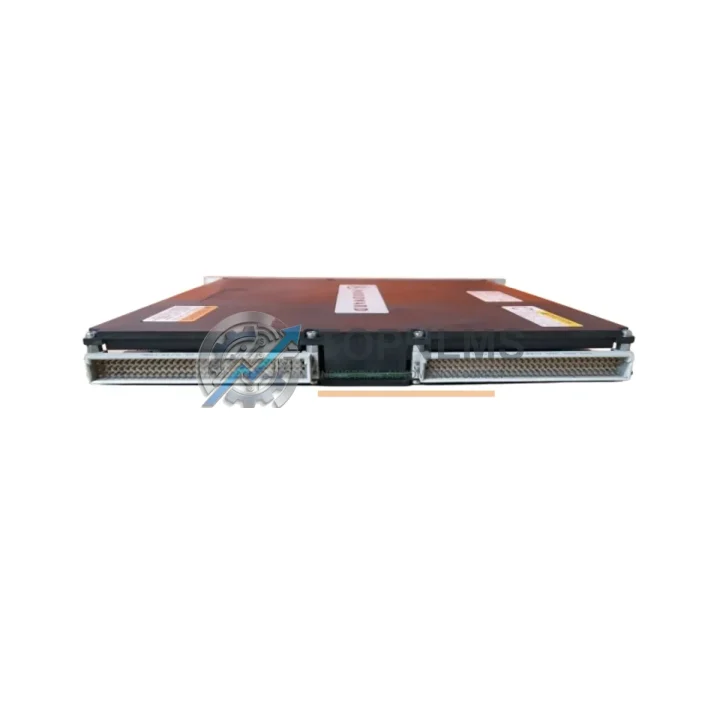

The WOODWARD 5501-470 is a high-performance CPU Module designed for the MicroNet turbine control platform, widely deployed in gas turbine, steam turbine, and compressor control applications across power generation and oil & gas industries. As original equipment manufacturers phase out legacy control hardware and end-of-life notices become more frequent, plant engineers and procurement teams face increasing pressure to source reliable replacement units or execute a structured upgrade path that minimizes operational risk and unplanned downtime.

This listing provides a verified replacement and upgrade solution for the WOODWARD 5501-470 CPU Module, sourced from authorized supply channels and tested prior to shipment. Whether you are replacing a failed unit on an emergency basis, building a critical spare inventory, or planning a phased migration from an older MicroNet configuration to a current-generation architecture, this module is ready to support your project from day one.

The 5501-470 CPU Module serves as the central processing unit within the MicroNet control rack, coordinating real-time I/O scanning, control algorithm execution, and communication with operator interfaces and plant DCS systems. Its direct replacement compatibility means that in most installations, the module can be swapped into the existing rack without modifications to the control cabinet wiring, terminal blocks, or backplane connectors. Engineers familiar with the MicroNet programming environment will find that existing application code, tuning parameters, and I/O mapping remain intact, significantly reducing commissioning time during a like-for-like replacement.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful MicroNet CPU replacement or system migration rarely involves the CPU module alone. In practice, plant engineers undertaking a retrofit or emergency repair will also need to verify the condition and availability of several adjacent components within the same control rack and cabinet.

The MicroNet rack typically houses dedicated analog input modules and digital output modules alongside the CPU. If the 5501-470 is being installed as part of a broader system refresh, it is advisable to inspect the associated MicroNet I/O modules — particularly analog input cards handling speed, temperature, and pressure signals — for signs of wear or firmware incompatibility. In turbine control applications, the speed pickup input module and the analog output module driving actuator positioning are especially critical to verify before returning the unit to service.

Communication continuity is another key consideration. Many MicroNet installations interface with a plant DCS or SCADA system via Modbus RTU over RS-485, or in more recent configurations, via an Ethernet gateway module. If the existing communication module — such as a MicroNet Ethernet interface card or a serial communication adapter — is also aging, replacing it concurrently with the CPU module eliminates a second potential failure point and avoids a repeat outage. The WOODWARD 5501-470 maintains full compatibility with these communication modules without requiring changes to the Modbus register map or DCS tag configuration.

Power supply integrity is equally important. The MicroNet rack power supply module provides regulated 24 VDC to all installed cards. A degraded power supply can cause intermittent CPU faults that are difficult to diagnose in the field. Procurement teams sourcing the 5501-470 as a replacement should consider holding a spare MicroNet power supply module in inventory, particularly for critical turbine applications where unplanned outages carry significant production cost.

For sites performing a more comprehensive upgrade — moving from a legacy MicroNet architecture toward a MicroNet Plus or current-generation WOODWARD platform — the migration path typically involves replacing the CPU module, updating the application software via WOODWARD AppManager, and reconfiguring the HMI operator panel or touchscreen interface to reflect any changes in tag names or alarm setpoints. The 5501-470 supports this transition by maintaining backward compatibility with existing I/O wiring and terminal block assignments, meaning field wiring does not need to be disturbed during the upgrade.

Additional components commonly sourced alongside the 5501-470 in migration projects include: MicroNet analog output modules for actuator control, speed reference input cards, redundant CPU carrier modules for high-availability configurations, programming cables for WOODWARD ToolKit connectivity, and signal isolators used to condition thermocouple or 4–20 mA inputs before they reach the I/O rack. Each of these components plays a role in ensuring the upgraded system performs reliably from the first startup after installation.

Retrofit Guidance FAQ

Q: Can the 5501-470 be installed without modifying existing field wiring?
A: Yes. The 5501-470 uses the same backplane connector and terminal block interface as predecessor MicroNet CPU modules. Field wiring connected to I/O modules in the same rack does not need to be disturbed. Only the CPU module itself is swapped.

Q: Will existing application code run on the replacement 5501-470?
A: In most cases, yes. Application code developed in WOODWARD AppManager or ToolKit can be loaded onto the 5501-470 without modification. It is recommended to verify the firmware revision of the replacement module against the application code version before commissioning.

Q: What communication protocols does the 5501-470 support?
A: The module supports Modbus RTU as the primary fieldbus protocol for DCS and SCADA integration. Ethernet-based communication is available where the corresponding network interface module is installed in the rack. The proprietary WOODWARD inter-module communication link is also supported for redundant CPU configurations.

Q: How much physical space does the replacement require in the control cabinet?
A: The 5501-470 occupies a single slot in the standard MicroNet rack. No additional cabinet space, DIN rail modification, or panel cutout changes are required. The module slides directly into the vacated slot.

Q: What is the recommended procedure for replacing the CPU module on a live system?
A: A planned outage window is strongly recommended. The turbine or compressor should be brought to a safe shutdown state before the CPU module is removed. After installation, the replacement module should be powered up, the application loaded via ToolKit, and all I/O points verified against the process before returning the unit to automatic control.

Q: Are spare parts available for the broader MicroNet system?
A: Yes. TOPNLMS maintains inventory of MicroNet-compatible modules including I/O cards, power supplies, communication modules, and CPU units. Contact our team for availability and lead times on specific part numbers.

Warranty Assurance

Every WOODWARD 5501-470 CPU Module shipped by TOPNLMS is covered by a 12-Month Warranty from the date of delivery. Prior to shipment, each unit undergoes a functional inspection to verify power-on operation, communication interface integrity, and physical condition. Units that do not meet our quality standards are not listed for sale.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund depending on the nature of the fault and the customer’s preference. Our after-sales response target is within 24 hours of a reported issue. Warranty coverage applies to manufacturing defects and functional failures under normal operating conditions; it does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling after delivery.

For procurement teams requiring documentation, we can provide a test report, packing list, and commercial invoice with each shipment. Export packaging is designed to protect sensitive electronic modules during international freight, including ESD-safe inner packaging and foam-lined outer cartons.

Stock is available for immediate shipment from our Xiamen warehouse. Standard lead time for in-stock units is 3–5 business days for international express delivery. For urgent requirements, same-day dispatch is available upon order confirmation before 14:00 CST.
