WOODWARD 5466-409 Replacement/Upgrade for 5466 Series

Product Overview

WOODWARD 5466-409 Replacement/Upgrade for 5466 Series: Smooth Transition from Legacy Governor Systems

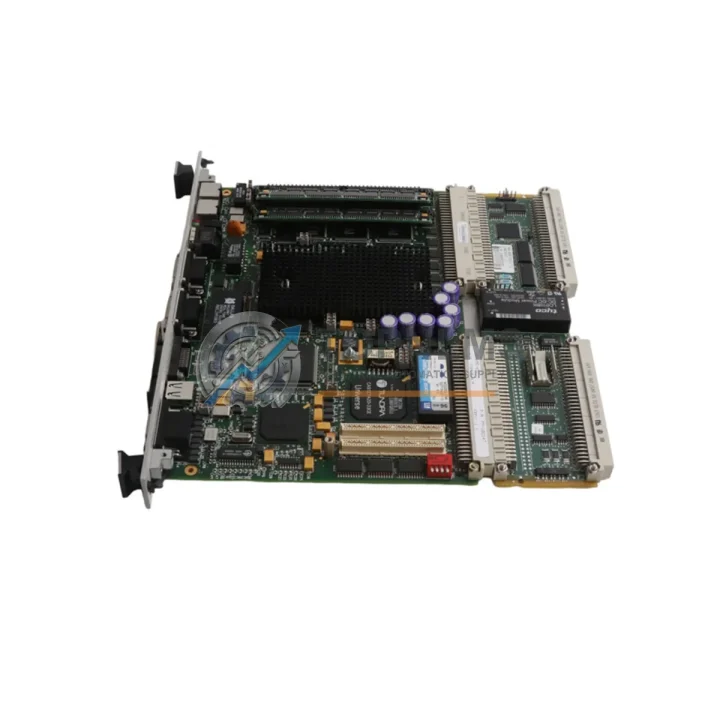

The WOODWARD 5466-409 Governor PC Board is a critical control component used in turbine, engine, and generator governor systems built on the WOODWARD 5466 Series platform. As legacy governor control systems age and original boards reach end-of-life, plant engineers and maintenance teams face increasing pressure to source verified replacement units that maintain full wiring compatibility, preserve existing control logic, and minimize unplanned downtime. This listing provides a tested, in-stock replacement for the 5466-409 board, supporting both direct swap-out and controlled upgrade scenarios across a wide range of industrial power generation and mechanical drive applications.

Whether you are replacing a failed board in an emergency shutdown situation or executing a planned retrofit of an aging governor control cabinet, the 5466-409 is designed to integrate into existing 5466 Series rack assemblies without requiring panel rewiring or PLC program restructuring. The board retains the same connector pinout, power supply input range, and analog/digital I/O interface as the original factory specification, allowing maintenance personnel to complete the swap during a scheduled maintenance window with minimal engineering intervention.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful governor board migration rarely involves a single component. In most 5466 Series installations, the 5466-409 PC Board operates as part of a broader governor control assembly that includes a WOODWARD 5466 Series power supply module providing regulated 24 VDC to the rack, and a dedicated I/O termination board that interfaces field wiring from speed sensors, actuator outputs, and process analog signals. When replacing the 5466-409, it is advisable to inspect the condition of the associated termination board and verify that the existing wiring harness connectors are free of corrosion or mechanical fatigue.

In turbine governor applications, the 5466-409 typically communicates with a WOODWARD actuator driver module or electro-hydraulic actuator interface over the internal governor bus. If the legacy actuator driver is also approaching end-of-life, coordinating its replacement alongside the 5466-409 board swap reduces the risk of a secondary failure shortly after the primary repair. Similarly, the speed pickup signal conditioning module — often a magnetic pickup interface card installed in an adjacent rack slot — should be tested during the same maintenance window to confirm signal integrity before returning the unit to service.

For plants running WOODWARD NetCon or 505 Series digital governor controllers in parallel with 5466 Series boards, the migration to a replacement 5466-409 does not require changes to the higher-level control architecture. The 5466-409 continues to operate as a subordinate board within the existing governor hierarchy, and communication with the supervisory controller via RS-485 Modbus or proprietary WOODWARD serial protocol remains unaffected. If your facility is also planning a broader upgrade from the 5466 platform to a WOODWARD MicroNet or ProTech-GII system, the 5466-409 replacement can serve as an interim measure to stabilize the existing system while the larger migration project is scoped and budgeted.

Control cabinet space is rarely a constraint when replacing a like-for-like 5466 Series board, but engineers managing multi-governor installations in shared control rooms should confirm that the replacement board’s heat dissipation profile matches the original to avoid thermal issues in densely populated enclosures. A DIN-rail mounted signal isolator or surge protection module installed on the analog input lines is a recommended addition during any governor board replacement, particularly in sites with high electromagnetic interference from variable frequency drives, large motor starters, or high-voltage switchgear in adjacent panels.

Retrofit Guidance FAQ

Q: Can I install the 5466-409 without rewiring the control cabinet?
A: Yes. The 5466-409 uses the same connector pinout as earlier 5466 Series revisions. In a direct replacement scenario, the existing wiring harness connects to the new board without modification. Always verify connector seating and inspect terminal blocks for wear before powering up.

Q: Do I need to reprogram the board after installation?
A: The 5466-409 requires parameter configuration using the WOODWARD Watch Window service tool or equivalent programming interface. If a parameter backup was saved from the original board, it can be restored directly. If no backup exists, parameters must be re-entered from the original commissioning documentation or re-tuned during a controlled test run.

Q: Is the 5466-409 compatible with RS-485 Modbus communication?
A: The 5466 Series governor boards support RS-232 and RS-485 serial communication. Modbus RTU compatibility depends on the firmware revision loaded on the board. Confirm the firmware version with your WOODWARD service documentation before integrating with a Modbus-based SCADA or DCS system.

Q: What is the physical installation space requirement?
A: The 5466-409 is a standard 5466 Series rack-mount board. It occupies the same slot width and depth as the original board. No panel cutout modification or additional mounting hardware is required for a direct swap.

Q: Can this board replace discontinued 5466 Series part numbers?
A: The 5466-409 is compatible with several earlier 5466 Series revisions including 5466-395, 5466-401, 5466-403, and 5466-407. Cross-reference your existing part number against the 5466 Series compatibility matrix or contact our technical team to confirm suitability before ordering.

Q: How long does commissioning take after board replacement?
A: With a saved parameter backup and an experienced technician, board swap and recommissioning typically takes 2–4 hours including functional testing. Sites without a parameter backup should allocate additional time for parameter re-entry and governor response tuning.

Warranty Assurance

Every WOODWARD 5466-409 Governor PC Board shipped from TOPNLMS carries a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a pre-shipment functional inspection to verify board integrity, connector condition, and basic electrical continuity. Units that do not pass inspection are not listed for sale.

In the event of a warranty claim, TOPNLMS provides replacement support with a target response time of 1–2 business days. Warranty coverage applies to manufacturing defects and component failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling after delivery.

For urgent replacement requirements, expedited shipping from our Xiamen warehouse is available to most destinations in mainland China, Southeast Asia, and international markets. Lead time for standard orders is typically 3–7 business days depending on destination and logistics carrier selection. Customers requiring same-day dispatch should contact our sales team directly to confirm stock availability and shipping cutoff times.

Our procurement team is available to assist with cross-reference verification, compatibility confirmation, and volume pricing for MRO and spare parts programs. We support both single-unit emergency purchases and scheduled blanket orders for facilities managing multi-site governor system maintenance programs.
