WOODWARD SST-DN3-PCU-2-E Original Industrial Spare SST-DN3 Compatible

Product Overview

WOODWARD SST-DN3-PCU-2-E Original Industrial Spare SST-DN3 Compatible: System Stability & Industrial Spare Parts Maintenance Value

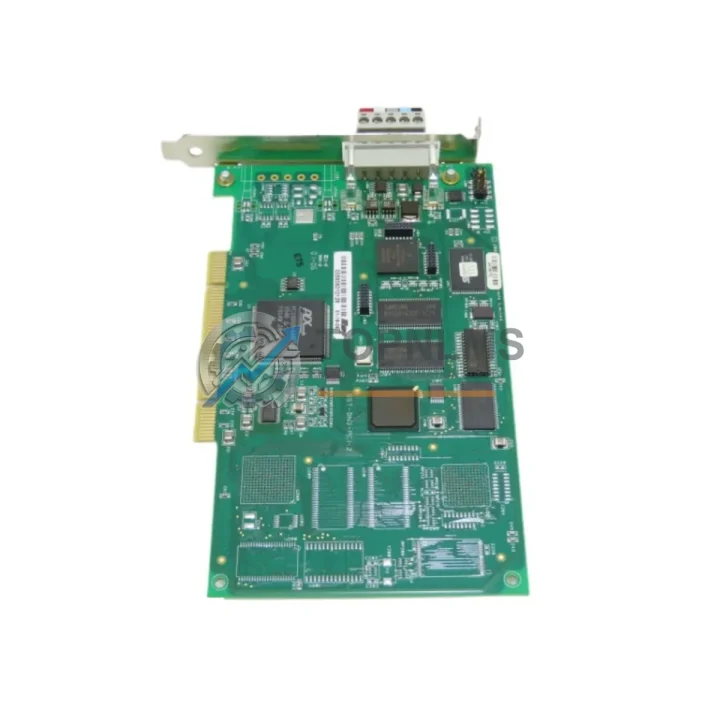

The WOODWARD SST-DN3-PCU-2-E is a dual-channel DeviceNet Master/Slave PCI communication card engineered for demanding industrial automation environments. As a genuine original spare part from the SST-DN3 series, this card serves as the critical communication backbone between PLC/DCS control systems and DeviceNet field devices — including variable frequency drives, smart sensors, actuators, and distributed I/O nodes. When this card fails or degrades, the entire DeviceNet network segment goes silent, triggering unplanned downtime that can cost thousands of dollars per hour in a production environment.

Sourced directly from authorized supply channels and rigorously tested prior to shipment, the SST-DN3-PCU-2-E is the preferred replacement for maintenance engineers who cannot afford compatibility guesses or counterfeit components. Whether you are managing a scheduled overhaul, responding to an emergency shutdown, or building a strategic spare parts inventory for aging control cabinets, this card delivers the plug-and-play reliability that keeps your system running without re-engineering.

Critical Technical Specs

Preventive Maintenance Strategy

A DeviceNet communication fault rarely occurs in isolation. When the SST-DN3-PCU-2-E is flagged during a routine control cabinet inspection or post-fault diagnostic, experienced maintenance engineers know to treat it as a signal to audit the entire DeviceNet segment — not just the card itself.

Begin with the DeviceNet trunk cable and drop cables: damaged shielding or improper termination resistors (120Ω at each end) are a leading cause of intermittent communication errors that are often misdiagnosed as card failure. While the cabinet is open, inspect the DeviceNet power supply tap — typically a 24VDC isolated supply dedicated to the network — since voltage sag on the bus can corrupt node addressing and trigger false fault codes across all 64 nodes.

Next, verify the distributed I/O modules connected downstream on the DeviceNet network. Modules such as the WOODWARD SST-DN3-104-2 remote I/O scanner or equivalent third-party DeviceNet I/O blocks should be checked for firmware version compatibility and node address conflicts. A single misconfigured node can bring down the entire bus segment, making the host PCI card appear faulty when the root cause lies in the field.

For systems running the SST-DN3-PCU-2-E as a gateway between a Siemens S7-300/S7-400 PLC or Allen-Bradley ControlLogix/CompactLogix controller and the DeviceNet field layer, it is advisable to simultaneously stock a spare CP 342-5 DP communication processor or 1756-DNB DeviceNet scanner module depending on your platform. These upstream communication modules share the same maintenance cycle as the PCI card and are equally critical to network continuity.

During scheduled shutdowns, also inspect the 24VDC power supply modules feeding the control cabinet — units such as the SITOP PSU100S or equivalent DIN-rail power supplies — since unstable DC rail voltage is a common silent killer of communication cards. Pair this with a check of the terminal blocks and bus connectors on the DeviceNet drop lines; loose ferrules and oxidized contacts account for a significant percentage of intermittent fieldbus faults in high-vibration environments.

Finally, if your facility operates HMI panels (such as Siemens TP700 Comfort or Allen-Bradley PanelView) that rely on data routed through the DeviceNet network, ensure those HMI communication parameters are re-validated after any card replacement. A mismatch in scan rate or EDS file configuration post-swap can cause the HMI to display stale data even when the network is technically healthy.

Strategic Replacement Solutions

The SST-DN3-PCU-2-E is a direct replacement for the earlier SST-DN3-PCI-2 variant, maintaining full software and hardware compatibility with existing SST DeviceNet API installations. This means no re-engineering of your RSNetWorx configuration files, no node re-addressing, and no changes to your SCADA tag database — simply swap the card, reinstall the driver, and restore communication within minutes.

For facilities managing legacy control systems built in the early 2000s, the SST-DN3 series represents one of the most cost-effective strategies for extending system life without migrating to EtherNet/IP or PROFINET. Rather than investing in a full network architecture upgrade — which can require months of engineering, re-wiring, and validation — a stocked SST-DN3-PCU-2-E spare reduces your mean time to repair (MTTR) to under one hour, preserving production continuity and deferring capital expenditure.

Procurement teams managing multi-site operations are advised to maintain at least one SST-DN3-PCU-2-E per control room that hosts a DeviceNet-connected PCI workstation. Given the card’s role as the sole communication bridge between the host PC and the field device network, a single-point failure without a spare on hand can result in extended downtime while sourcing a replacement through standard distribution channels.

Support FAQ

Q1: Is the SST-DN3-PCU-2-E compatible with my existing SST-DN3-PCI-2 installation?
Yes. The SST-DN3-PCU-2-E is the direct successor to the SST-DN3-PCI-2 and is fully backward compatible with all SST DeviceNet API software versions. No configuration changes are required upon replacement.

Q2: What pre-shipment testing is performed on this card?
Each unit undergoes functional communication testing and electrical parameter verification before shipment. Cards are inspected for physical integrity, connector condition, and firmware operability. A test report is available upon request.

Q3: How do I verify compatibility with my control system before installation?
Confirm that your host PC has an available PCI slot (3.3V or 5V universal), that your operating system supports the SST DeviceNet driver (Windows XP through Windows 10/11 with legacy driver packages), and that your DeviceNet network operates at 125, 250, or 500 kbps. Contact our technical team at [email protected] with your system configuration for pre-purchase compatibility confirmation.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects, communication failures under normal operating conditions, and component-level faults identified during standard industrial use. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed within 5 business days of receipt of the returned unit.
