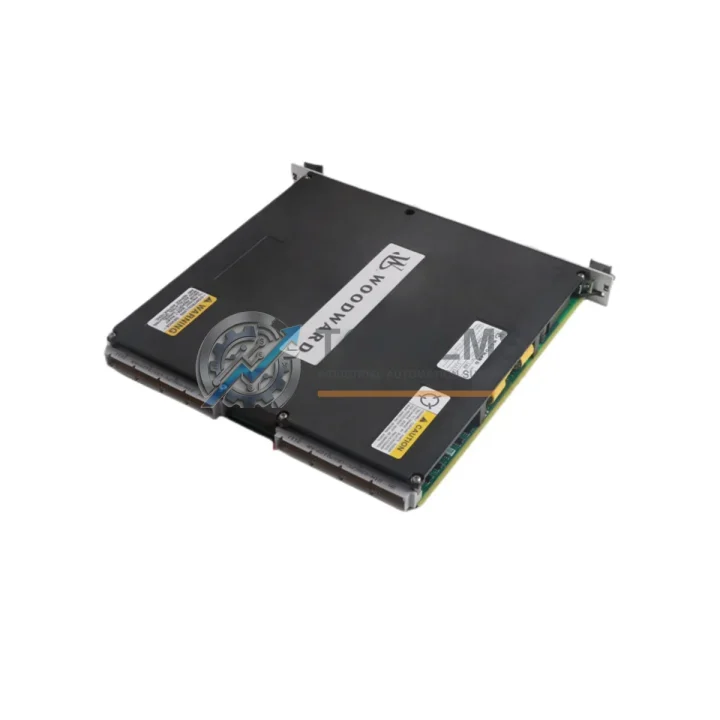

WOODWARD 5466-352 Ruggedized CPU Module for Harsh Environments

Product Overview

WOODWARD 5466-352 Ruggedized CPU Module: Industrial Resilience for the Harshest Environments

The WOODWARD 5466-352 is a high-performance central processing unit (CPU) module engineered for the NETCON 5000 distributed control platform — one of WOODWARD’s most trusted turbine and industrial process control architectures. Designed to operate continuously in environments characterized by extreme temperature swings, high humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference, this module delivers the processing reliability that mission-critical industrial facilities demand.

In power generation plants, oil and gas compression stations, and heavy industrial facilities, control system downtime is never an option. The WOODWARD 5466-352 CPU module is built to sustain 24/7 continuous operation across these demanding conditions, providing deterministic scan-cycle execution and stable I/O communication even when ambient conditions push conventional hardware to its limits. Its ruggedized construction — including conformal-coated PCB assemblies and vibration-dampened mounting — ensures that mechanical stress from rotating machinery, compressors, and turbine skids does not compromise processing integrity.

Rugged Specifications Table

Comprehensive Protection Solutions

The WOODWARD 5466-352 CPU module does not operate in isolation — it is the command core of a tightly integrated control architecture. In a fully configured NETCON 5000 control cabinet, the 5466-352 works in concert with WOODWARD analog input modules such as the 5466-354 and 5466-356, which feed real-time process signals — temperature, pressure, speed, and flow — directly to the CPU for deterministic processing. Digital output modules like the 5466-358 translate CPU commands into actuator and relay switching signals, enabling precise control of fuel valves, inlet guide vanes, and emergency shutdown solenoids.

Power integrity is equally critical. The NETCON 5000 system relies on dedicated WOODWARD power supply modules to deliver clean, regulated DC power to the CPU and I/O backplane. In facilities where grid power quality is poor or subject to transient spikes — common in mining operations and steel mills — these power supply modules act as the first line of defense, preventing voltage disturbances from reaching the 5466-352’s sensitive processing circuits.

For facilities integrating the NETCON 5000 into a broader plant DCS or SCADA architecture, WOODWARD communication modules provide the protocol bridge — supporting Modbus RTU, Modbus TCP/IP, and proprietary WOODWARD network protocols — allowing the 5466-352 CPU to exchange data with upstream historians, operator workstations, and safety instrumented systems (SIS). In safety-critical applications, the CPU module is often paired with dedicated safety relay modules and emergency shutdown (ESD) modules that provide hardware-level trip logic independent of the main CPU scan cycle, ensuring that a CPU fault does not prevent a safe plant shutdown.

Terminal modules and marshalling panels within the same control cabinet provide the physical I/O termination layer, allowing field wiring from sensors, transmitters, and actuators to connect cleanly to the NETCON 5000 backplane without introducing ground loops or signal noise. When the 5466-352 is deployed alongside WOODWARD speed and position sensors or third-party vibration monitoring systems, the CPU’s high-speed interrupt handling ensures that overspeed and vibration trip signals are processed within the required response time — a non-negotiable requirement in turbine protection applications.

Application in Critical Infrastructure

The WOODWARD 5466-352 has earned its place in some of the world’s most demanding industrial environments. In gas turbine power plants, this CPU module serves as the brain of the turbine control panel, managing fuel metering, compressor surge protection, load sharing between parallel generating units, and synchronization with the grid. Its deterministic execution cycle ensures that control responses to load transients occur within milliseconds — a requirement that generic PLCs often cannot meet in turbine applications.

In oil and gas compression stations and pipeline booster stations, the 5466-352 controls reciprocating and centrifugal compressors operating in Class I Division 2 hazardous areas. The control cabinet housing the NETCON 5000 system is typically purged and pressurized to maintain a safe internal atmosphere, while the 5466-352 CPU continuously monitors suction and discharge pressures, inter-stage temperatures, and vibration levels — triggering automatic shutdown sequences if any parameter exceeds safe operating limits.

In hydroelectric power stations and water treatment facilities, the NETCON 5000 platform — anchored by the 5466-352 CPU — manages governor control for water turbines, pump sequencing, and valve actuation across geographically distributed pump stations. The module’s robust communication capabilities allow it to integrate with plant-wide SCADA systems, providing operators with real-time visibility and remote control capability.

Mining operations and mineral processing plants represent another core application domain. In these environments, the 5466-352 must contend with extreme dust loading, high ambient temperatures from crushing and grinding equipment, and severe electrical noise from large variable frequency drives (VFDs) and motor control centers (MCCs). The module’s EMI-hardened design and conformal-coated PCB ensure reliable operation even when installed in close proximity to high-power drive equipment.

In metallurgical and steel production facilities, continuous casting lines and rolling mills demand control systems that can sustain operation through the intense electromagnetic environment generated by arc furnaces and induction heating systems. The WOODWARD 5466-352, properly installed in a shielded and grounded control cabinet with appropriate cable segregation, provides the processing stability these applications require.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the WOODWARD 5466-352?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If the module fails to perform its specified functions within the warranty period, TOPNLMS will provide a replacement unit or full refund at no additional cost. The warranty does not cover damage resulting from incorrect installation, overvoltage events beyond rated limits, or physical mishandling.

Q2: How is the WOODWARD 5466-352 tested before shipment?
Every unit undergoes a multi-stage pre-shipment inspection process. This includes visual inspection for physical damage, power-on functional testing to verify CPU initialization and communication bus activity, and where applicable, compatibility verification against NETCON 5000 system firmware requirements. Units are shipped in anti-static packaging with individual test records available upon request.

Q3: Is the WOODWARD 5466-352 compatible with all NETCON 5000 chassis configurations?
The 5466-352 is designed for use within the WOODWARD NETCON 5000 platform and is compatible with standard NETCON 5000 backplane chassis configurations. Compatibility with specific firmware versions and I/O module combinations should be verified against your existing system configuration. TOPNLMS technical support can assist with compatibility verification prior to purchase — contact us with your system’s existing module list and firmware version for a pre-sale compatibility assessment.

Q4: Can TOPNLMS support long-term supply and replacement needs for the WOODWARD 5466-352?
Yes. TOPNLMS maintains ongoing inventory of WOODWARD NETCON 5000 series modules, including the 5466-352 and related I/O, power supply, and communication modules. For facilities managing aging NETCON 5000 installations where OEM support has been reduced or discontinued, TOPNLMS provides a reliable aftermarket supply channel with consistent quality standards, technical documentation support, and the ability to fulfill both single-unit emergency replacement orders and bulk procurement contracts.
