Westinghouse R-S108V01-16-24VDC-C5-1 Original Industrial Spare OVATION

Product Overview

Westinghouse R-S108V01-16-24VDC-C5-1 Original Industrial Spare OVATION: Sustaining System Stability in Critical DCS Environments

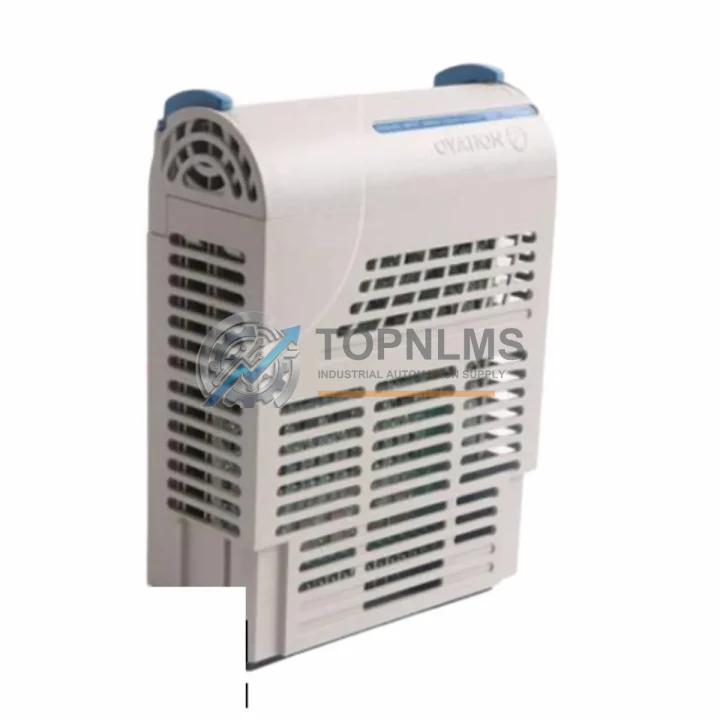

The Westinghouse R-S108V01-16-24VDC-C5-1 is a 16-channel analog input Enhanced Module (EMOD) engineered for the Westinghouse OVATION Distributed Control System — one of the most widely deployed DCS platforms in power generation, petrochemical, and heavy industrial facilities worldwide. As aging OVATION installations continue to operate well beyond their original design lifecycles, maintaining a reliable inventory of original spare modules such as the R-S108V01-16-24VDC-C5-1 is no longer optional — it is a core pillar of any credible preventive maintenance and business continuity strategy.

When this analog input EMOD fails or degrades, the consequences extend far beyond a single I/O channel. Process variables — temperatures, pressures, flow rates, and level signals — that feed into the OVATION controller logic become unreliable or unavailable, triggering alarms, forcing manual overrides, and in worst-case scenarios, initiating unplanned shutdowns. Sourcing a verified original replacement unit in advance eliminates the most dangerous variable in any maintenance event: procurement lead time under pressure.

Critical Technical Specs

Preventive Maintenance Strategy

A scheduled inspection of the OVATION DCS I/O cabinet should never focus on a single module in isolation. The R-S108V01-16-24VDC-C5-1 operates as part of an integrated signal chain, and the reliability of its analog readings depends equally on the health of surrounding components. During any planned maintenance window or unplanned corrective action involving this analog input EMOD, maintenance engineers should simultaneously evaluate the condition of the OVATION I/O power supply module that feeds the rack — a degraded or fluctuating 24 VDC supply is a leading cause of intermittent analog channel errors that are frequently misdiagnosed as module failure.

Field wiring termination integrity is another critical checkpoint. The OVATION marshalling terminal blocks and associated field termination assemblies (FTAs) connected to this module should be inspected for loose connections, corrosion, and insulation degradation. Signal integrity issues at the termination level will persist even after a module swap, leading to repeat failures and unnecessary parts consumption. Similarly, the OVATION communication bus cable linking the I/O rack to the controller node should be verified for continuity and connector seating — a marginal bus connection can cause sporadic data loss across all modules in the rack, not just the analog input EMOD.

For facilities running extended OVATION installations, it is also prudent to assess the OVATION controller module (OCR400 or equivalent) that processes the analog data from this EMOD. Controller modules operating beyond their recommended service interval may exhibit increased scan cycle times or memory errors that manifest as analog input anomalies. Pairing a replacement R-S108V01-16-24VDC-C5-1 with a verified spare controller module in your stockroom ensures that a single maintenance event does not cascade into a multi-week procurement delay.

Additional components that should be part of any OVATION analog input maintenance kit include: signal isolator modules for loops with high common-mode noise, fuse modules or fused terminal blocks protecting individual field loops, OVATION digital output modules that may share the same I/O rack and power budget, and redundant network interface cards if the installation uses OVATION’s dual-network architecture. For sites with HMI workstations running OVATION operator consoles, maintaining a spare OVATION workstation I/O card or validated software image is equally important to ensure that analog process data is correctly displayed and logged during and after a module replacement event.

Strategic Replacement Solutions

The R-S108V01-16-24VDC-C5-1 is a direct original replacement for aging or failed 16-channel analog input EMODs within the OVATION DCS platform. Unlike third-party alternatives that may require firmware reconfiguration, calibration offsets, or rack compatibility verification, an original Westinghouse module installs into the existing rack slot and resumes operation with the existing OVATION configuration database — minimizing restoration time and eliminating the risk of configuration mismatch.

For facilities managing the transition from older OVATION hardware generations, this module maintains backward compatibility with established C5-1 rack configurations, allowing maintenance teams to replace failed units without triggering a broader system upgrade. This is particularly valuable in environments where a full DCS migration is planned but not yet funded — the R-S108V01-16-24VDC-C5-1 extends the operational life of the existing installation, protecting capital investment while the upgrade roadmap is finalized.

Each unit shipped from TOPNLMS is individually tested against original Westinghouse electrical specifications before dispatch. Functional verification covers all 16 analog input channels, power supply rail integrity, and communication bus handshake with the OVATION rack. Units are packaged in anti-static, shock-protected enclosures suitable for international freight. Standard lead time is 3–7 business days from order confirmation, with expedited options available for critical shutdown scenarios.

Support FAQ

Q1: Is this module compatible with all OVATION DCS rack configurations?
The R-S108V01-16-24VDC-C5-1 is designed for C5-1 OVATION I/O rack configurations. Before ordering, confirm your rack slot designation and OVATION system version with your DCS documentation or contact our technical team with your system serial number for compatibility verification.

Q2: What does the 12-month warranty cover?
The warranty covers all electrical and functional defects under normal operating conditions for 12 months from the date of shipment. It includes free replacement or repair of the module. Physical damage caused by incorrect installation, overvoltage, or field wiring faults is excluded. Warranty claims are processed within 5 business days of receipt of the returned unit.

Q3: How is the module tested before shipment?
Every R-S108V01-16-24VDC-C5-1 undergoes a full 16-channel functional test on an OVATION-compatible rack test bench. Tests include analog signal accuracy verification across the full input range, 24 VDC power consumption measurement, and communication bus response validation. A test report is available upon request.

Q4: Can I hold stock of this module for long-term inventory?
Yes. Original Westinghouse EMOD modules are designed for long-term storage when kept in a dry, temperature-controlled environment (10–40°C, <85% RH, non-condensing) in their original anti-static packaging. For facilities with critical OVATION installations, we recommend maintaining a minimum of one spare R-S108V01-16-24VDC-C5-1 per active rack as part of a structured critical-spare inventory program.
