Westinghouse 5X00273G01 Replacement for OVATION DCS

Product Overview

Westinghouse 5X00273G01 Replacement for OVATION DCS: Seamless Transition & Legacy System Compatibility

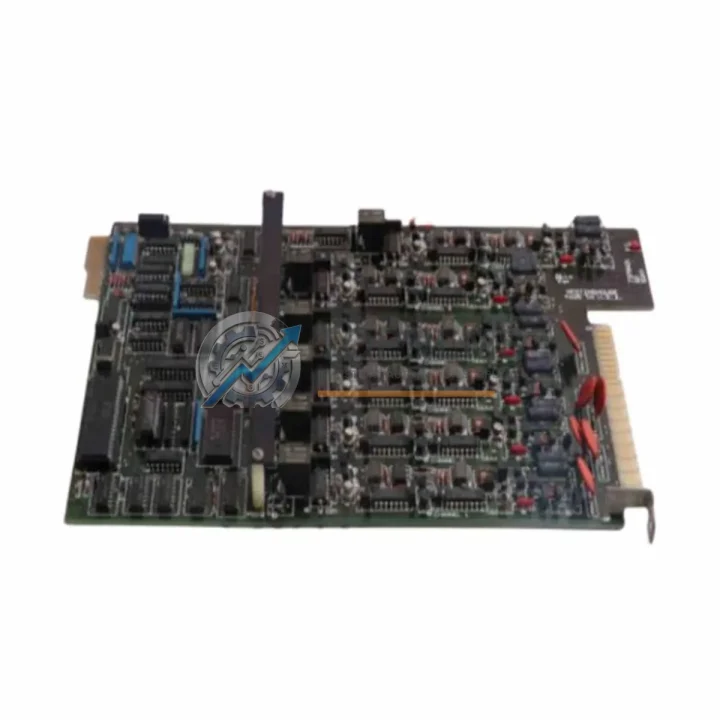

The Westinghouse 5X00273G01 is a 24 VDC Digital Output Module engineered for the OVATION Distributed Control System (DCS) platform. As legacy OVATION installations age and original modules reach end-of-life or become discontinued, plant engineers and procurement teams face increasing pressure to source verified replacement units that maintain full backward compatibility with existing I/O racks, controller backplanes, and field wiring. TOPNLMS stocks the 5X00273G01 as a direct drop-in replacement, enabling smooth migration from failed or obsolete modules without requiring reprogramming, rewiring, or rack reconfiguration.

Whether your facility is operating a power generation plant, a petrochemical refinery, a water treatment station, or a pulp-and-paper mill, the OVATION DCS architecture relies on a tightly integrated ecosystem of I/O modules, controller cards, and communication infrastructure. Replacing a single failed digital output module should not trigger a cascade of system changes. The 5X00273G01 is designed to slot directly into the existing OVATION I/O rack, accept the same field terminal wiring, and resume operation under the existing OVATION controller logic — minimizing planned and unplanned downtime.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful OVATION DCS modernization project rarely involves replacing a single module in isolation. In practice, field engineers upgrading or retrofitting an OVATION system will encounter a range of interdependent components that must be evaluated alongside the 5X00273G01 digital output module.

On the input side, the OVATION Digital Input Module 5X00119G01 is frequently replaced in tandem with digital output modules when an I/O rack is being refurbished, ensuring that both the sensing and actuation layers of the control loop are brought to the same reliability standard. Similarly, the OVATION Analog Input Module 5X00070G01 is a common companion replacement in mixed I/O racks where analog process signals — temperature, pressure, and flow — feed the same controller node that drives the digital outputs.

The OVATION Controller Module 5X00106G01 serves as the processing core that communicates with the 5X00273G01 over the OVATION backplane bus. When a controller module is also approaching end-of-life, replacing both the controller and the associated I/O modules during the same maintenance window eliminates the risk of a second unplanned outage shortly after the first repair. The OVATION I/O Rack 5X00095G01 itself — the physical chassis that houses the modules — should be inspected for backplane connector wear, particularly in installations that have seen multiple module swaps over the years.

Communication infrastructure is equally critical. The OVATION Network Interface Module 5X00300G01 manages Ethernet connectivity between the OVATION controller nodes and the operator workstations running the OVATION software suite. Ensuring this module is current and functioning correctly is a prerequisite for reliable remote monitoring and alarm management after a digital output module replacement. For sites that rely on serial communication links to legacy field devices or third-party PLCs, the OVATION Serial Communication Module 5X00265G01 provides the RS-232/RS-485 interface layer that bridges the OVATION DCS to older Modbus RTU or proprietary protocol devices.

Power supply integrity underpins the entire rack. The OVATION Power Supply Module 5X00241G01 delivers the regulated 24 VDC and 5 VDC rails that all I/O modules — including the 5X00273G01 — depend on. A degraded power supply is a frequent root cause of intermittent module faults, and replacing it alongside the digital output module is a best practice in any comprehensive retrofit. Finally, for sites that require galvanic isolation between field devices and the OVATION rack — particularly in high-noise industrial environments — a signal isolator or barrier module such as the WESTINGHOUSE 5X00222G01 provides the necessary protection to prevent ground loops and transient damage from propagating into the I/O rack.

TOPNLMS maintains stock of all the above components and can fulfill multi-line purchase orders covering the full scope of an OVATION DCS retrofit, from individual module replacements to complete rack refurbishments.

Retrofit Guidance FAQ

Q: Do I need to modify field wiring when replacing a failed module with the 5X00273G01?
A: No. The 5X00273G01 uses the same backplane connector and field terminal interface as the original OVATION digital output module it replaces. Existing field cables, terminal blocks, and marshalling wiring remain unchanged.

Q: Will the OVATION controller need to be reprogrammed after the module swap?
A: No reprogramming is required for a like-for-like replacement. The OVATION controller recognizes the module by its rack slot position and module type code. Once the replacement module is seated and the rack is powered, the controller resumes normal I/O scanning without any configuration changes.

Q: Is the 5X00273G01 compatible with all OVATION DCS software versions?
A: The module is compatible with the OVATION DCS hardware platform across the major software revisions in common field use. If your site is running a very early OVATION release, contact TOPNLMS with your controller firmware version for confirmation before ordering.

Q: How much physical space does the module require in the rack?
A: The 5X00273G01 occupies a single standard OVATION I/O rack slot. No additional mounting hardware, adapter plates, or rack modifications are needed.

Q: What communication protocol does the module use?
A: The module communicates with the OVATION controller via the proprietary OVATION backplane bus. It does not require external Ethernet, Modbus, or PROFIBUS configuration — all communication is handled internally through the rack backplane.

Q: Can this module be used as a hot-swap replacement during live system operation?
A: Hot-swap capability depends on your specific OVATION rack configuration and controller firmware. Consult your OVATION system documentation or contact TOPNLMS for guidance specific to your installation before attempting a live swap.

Q: What testing is performed before shipment?
A: Every 5X00273G01 unit shipped by TOPNLMS undergoes pre-shipment functional verification including power-on self-test, output channel continuity check, and backplane interface validation. A test report is available upon request.

Warranty Assurance

TOPNLMS provides a 12-month warranty on all Westinghouse OVATION modules, including the 5X00273G01 Digital Output Module. The warranty period begins from the date of shipment and covers manufacturing defects, functional failures under normal operating conditions, and DOA (dead-on-arrival) units.

Every module is inspected and functionally tested prior to dispatch. Shipments are packaged in anti-static ESD-safe materials with foam cushioning to prevent transit damage. For international orders, we provide commercial invoices, packing lists, and HS code documentation to support customs clearance.

In the event of a warranty claim, TOPNLMS offers a replacement-first policy: a verified replacement unit is dispatched promptly to minimize your system downtime, with return logistics coordinated in parallel. Our after-sales response target is within 24 hours of a warranty claim submission.

Procurement teams can request formal quotations, proforma invoices, and technical datasheets directly via our contact channels. Volume orders and blanket purchase agreements for ongoing OVATION DCS maintenance programs are supported.
