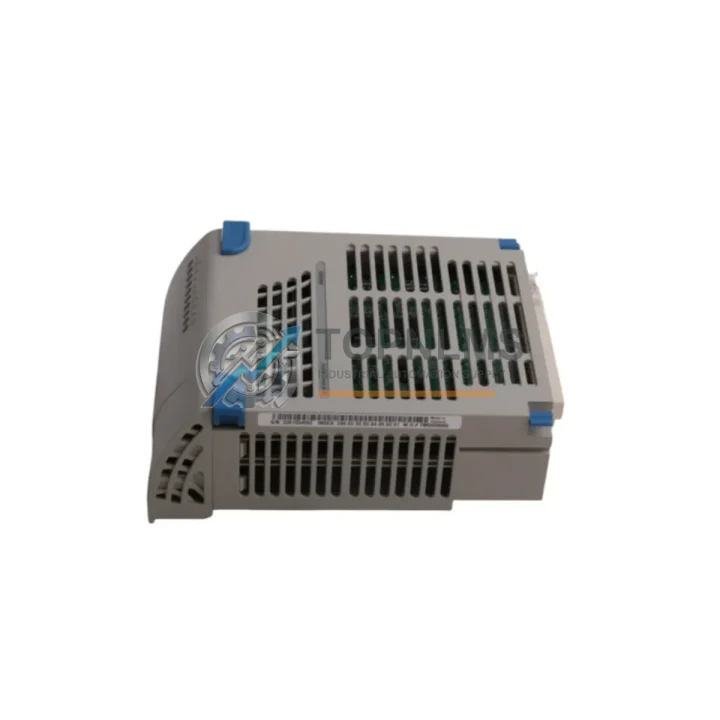

Westinghouse 5X00226G03 Replacement for WDPF Series

Product Overview

Westinghouse 5X00226G03 Replacement for WDPF Series: Smooth Migration & Legacy System Compatibility

The Westinghouse 5X00226G03 is a critical I/O Interface Controller within the WDPF (Westinghouse Distributed Processing Family) distributed control system architecture. As aging WDPF installations approach end-of-life and OEM support for legacy modules becomes increasingly scarce, plant engineers and procurement teams are actively seeking verified replacement and upgrade solutions that minimize engineering rework, preserve existing wiring infrastructure, and reduce unplanned downtime during the transition.

TOPNLMS maintains ready inventory of the 5X00226G03 and its functionally compatible successors, sourced from verified industrial supply channels and subjected to full functional testing prior to dispatch. Whether your facility is executing a like-for-like swap of a failed unit or planning a phased migration away from the WDPF platform entirely, this module represents a reliable, cost-effective procurement decision backed by a 12-month warranty and responsive after-sales support.

The 5X00226G03 interfaces directly with the WDPF highway bus, managing I/O data exchange between field instruments and the supervisory control layer. Its role in the system architecture means that any replacement must maintain strict compatibility with the existing highway addressing scheme, termination board wiring, and the WDPF configuration database. Our technical team has documented the replacement procedure for this module across multiple plant environments, including petrochemical, power generation, and pulp-and-paper facilities where WDPF systems remain in active service.

When replacing the 5X00226G03, the physical installation footprint is identical to the original — the module slots into the standard WDPF card cage without modification. Field wiring connected to the associated termination assembly, typically a dedicated I/O termination panel, does not require re-termination. The highway cable connectors and backplane interface are pin-compatible, allowing a cold-swap replacement in a planned maintenance window. Power supply requirements remain within the standard WDPF rack power budget, so no changes to the 5X00100G01 or equivalent rack power module are necessary.

From a communications standpoint, the 5X00226G03 operates on the WDPF Data Highway, a proprietary peer-to-peer network protocol. Replacement units are pre-configured to accept the original node address assignment during the initialization sequence, eliminating the need for highway reconfiguration. If your migration plan involves transitioning to a modern DCS platform — such as Emerson Ovation or ABB System 800xA — the 5X00226G03 can continue to serve as a bridge I/O node during the parallel-run phase, maintaining process continuity while the new control layer is commissioned.

For facilities managing a broader WDPF spare parts inventory, the 5X00226G03 is frequently procured alongside complementary modules including the 5X00119G01 analog input module, the 5X00106G01 digital output module, and the 5X00070G01 highway interface card. Maintaining a buffer stock of these modules is standard practice in plants where WDPF systems are expected to remain in service for another three to seven years before full platform migration. Our team can assist with consolidated procurement of multiple WDPF line items to reduce per-unit logistics costs.

In retrofit scenarios where the WDPF system is being partially decommissioned and replaced with a modern I/O subsystem, the 5X00226G03 often remains in service on the legacy side of a hybrid architecture. In such configurations, it may coexist with modern remote I/O solutions such as the Emerson CHARM I/O modules or Honeywell HLAI cards, connected through protocol converters or OPC-DA/UA gateways. Our technical documentation covers the integration considerations for these hybrid topologies.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful WDPF migration or spare-parts replenishment strategy rarely involves a single module in isolation. The 5X00226G03 I/O Interface Controller operates within a tightly integrated system architecture, and its replacement is most effective when coordinated with the surrounding hardware. During the upgrade process, engineers commonly address the condition of adjacent components to avoid repeat maintenance interventions.

The WDPF card cage backplane and its associated rack power supply — often a 5X00100G01 or equivalent power module — should be inspected and replaced if showing signs of capacitor aging or voltage drift, as a degraded power rail is a common root cause of I/O controller faults. Similarly, the highway interface cards that manage Data Highway segment connectivity, such as the 5X00070G01, are frequently replaced in the same maintenance window to eliminate latent failure risks on the communication backbone.

On the field side, the termination assemblies and signal conditioning components connected to the 5X00226G03 deserve attention. Analog input modules such as the 5X00119G01 and digital I/O modules including the 5X00106G01 are often procured as part of a consolidated spare-parts order, ensuring that the most failure-prone components in the I/O subsystem are covered under a single procurement event. For facilities transitioning to a hybrid architecture, signal isolators and loop-powered transmitter barriers may be required at the field wiring interface to protect the new control layer from legacy grounding schemes.

Where the migration extends to the supervisory layer, engineering teams may also be sourcing WDPF operator station components, historian interface cards, or programming workstation software licenses to maintain the ability to modify and download control logic during the transition period. TOPNLMS can advise on the availability of these ancillary items and coordinate consolidated shipments to reduce lead time and freight costs.

Retrofit Guidance FAQ

Q: Can I replace the 5X00226G03 without modifying the existing field wiring?
A: Yes. The replacement module uses the same termination assembly interface as the original. Field wiring connected to the I/O termination panel does not require re-termination. A cold-swap replacement can typically be completed within a planned two-to-four-hour maintenance window.

Q: Will the replacement module retain the original WDPF node address and configuration?
A: Yes. The 5X00226G03 accepts its node address assignment from the WDPF configuration database during the initialization sequence. No highway reconfiguration is required, provided the replacement unit is installed in the same card slot position.

Q: Is the WDPF Data Highway communication protocol fully supported?
A: Yes. The replacement module is fully compatible with the WDPF Data Highway proprietary protocol. Highway segment integrity and peer-to-peer communication with other WDPF nodes are maintained without modification.

Q: What are the physical space requirements for installation?
A: The 5X00226G03 occupies a single standard WDPF card slot. The replacement module has an identical form factor. No control cabinet modification, additional mounting hardware, or card cage expansion is required.

Q: Can this module be used during a phased migration to a modern DCS platform?
A: Yes. The 5X00226G03 can continue to operate as a legacy I/O node during a parallel-run migration phase, maintaining process I/O continuity while the new control platform is commissioned and validated. This approach is commonly used in power generation and petrochemical facilities to minimize production risk during platform transitions.

Q: What testing is performed before shipment?
A: Each unit undergoes functional verification testing prior to dispatch, including power-on self-test validation and communication interface checks. Test records are available upon request for quality assurance documentation purposes.

Warranty Assurance

Every Westinghouse 5X00226G03 shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. This warranty covers functional failure under normal operating conditions and includes replacement support for units that fail to perform to specification within the warranty period.

Prior to dispatch, each module is subjected to a documented pre-shipment inspection and functional test protocol. Units that do not pass the full test sequence are quarantined and not offered for sale. This process ensures that every module leaving our facility is in verified working condition, reducing the risk of installation failures and unplanned downtime at your site.

Our after-sales response team is available to support technical queries related to installation, commissioning, and compatibility verification. For warranty claims, our standard response time is one business day, with replacement units dispatched from Xiamen within three to five business days of claim approval. Expedited dispatch options are available for critical plant situations.

Procurement documentation including commercial invoices, packing lists, certificates of conformance, and test reports can be provided to support your internal quality management and asset tracking requirements. We support both individual unit procurement and consolidated blanket orders for facilities managing ongoing WDPF spare-parts programs.

For volume pricing, technical consultation, or consolidated spare-parts procurement, contact our industrial automation team directly.
