Westinghouse 5X00167G01 Original Industrial Spare WDPF Compatible: System Stability and Industrial Spare Maintenance Value

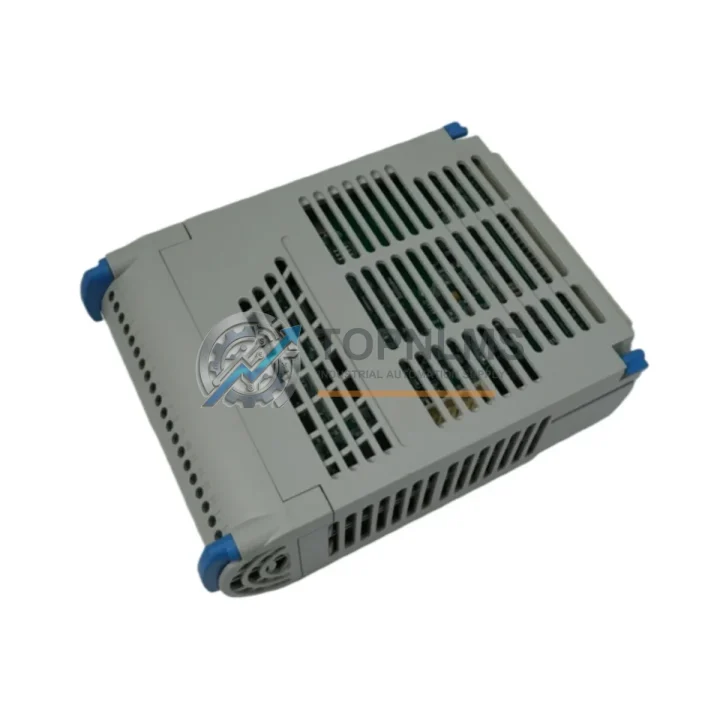

The Westinghouse 5X00167G01 is a genuine Digital Output (DO) module designed for the WDPF (Westinghouse Distributed Processing Family) distributed control system platform. In process industries — including power generation, petrochemical refining, pulp and paper, and heavy manufacturing — the WDPF DCS remains a backbone control architecture in facilities that have operated reliably for decades. Maintaining these systems requires access to verified original spare parts, and the 5X00167G01 is one of the most critical field-replaceable units in the WDPF I/O subsystem.

When a digital output channel fails in a WDPF cabinet, the consequences extend far beyond a single actuator. Downstream interlocks, safety shutdown sequences, and process control loops that depend on that output can be compromised, triggering unplanned shutdowns or forcing operators into manual override modes. Having a tested, ready-to-install 5X00167G01 on the shelf is the single most effective way to reduce mean time to repair (MTTR) and restore normal operations within a single maintenance window.

Critical Technical Specs

Preventive Maintenance Strategy

A scheduled replacement of the 5X00167G01 should never be treated as an isolated task. In a WDPF control cabinet, the digital output module operates as part of an integrated I/O subsystem where the health of adjacent components directly affects overall system reliability. During any planned maintenance window involving the 5X00167G01, maintenance engineers should conduct a comprehensive inspection of the surrounding hardware to prevent secondary failures from undermining the repair.

Begin with the WDPF I/O backplane itself — inspect connector contacts for oxidation, mechanical wear, or bent pins that could cause intermittent communication faults after the new module is seated. At the same time, verify the condition of the WDPF power supply module (such as the 5X00119G01 or equivalent series power card) that feeds the I/O rack; a degraded power supply is a common root cause of DO module failures and will damage a replacement unit if left unaddressed.

Check the WDPF Digital Input (DI) modules in the same cabinet — particularly those sharing the same process loop as the failed DO channel. DI modules such as the 5X00168G01 series are subject to the same environmental stresses and often exhibit early signs of failure (erratic readings, stuck channels) around the same maintenance cycle. Replacing or bench-testing these units during the same outage avoids a repeat shutdown within weeks.

Inspect all field wiring termination assemblies and terminal blocks connected to the 5X00167G01 output channels. Loose or corroded terminations are a leading cause of nuisance trips and can mask the true source of a DO fault. While the cabinet is open, verify the integrity of signal cables and shielded I/O wiring harnesses running between the DCS cabinet and field junction boxes — damaged cable insulation or broken shields introduce noise that degrades output signal quality.

For facilities running extended WDPF installations, the WDPF communication modules and data highway interface cards (such as the WEStation or WDPF Data Highway modules) should be included in the inspection checklist. A communication module operating at the edge of its performance envelope can cause the controller to misinterpret DO command states, producing symptoms that appear identical to a failed output module.

Finally, review the status of fuse modules and circuit protection assemblies within the I/O cabinet. Blown or weakened fuses protecting DO output channels are frequently overlooked during fault diagnosis. Stocking a set of compatible fuse modules alongside the 5X00167G01 ensures that a complete, verified repair can be completed in a single maintenance window without waiting for additional parts.

Strategic Replacement Solutions

The Westinghouse 5X00167G01 addresses one of the most persistent challenges in legacy DCS maintenance: sourcing verified original spare parts for a platform that is no longer in active production. Many facilities operating WDPF systems face pressure to migrate to modern DCS platforms, but the capital cost and engineering risk of a full migration often make continued maintenance of the existing system the more practical choice — particularly when the process is stable and the control logic is well-understood.

A stocked 5X00167G01 eliminates the most dangerous variable in this equation: parts availability. When a DO module fails during production, the difference between a two-hour repair and a two-week shutdown is almost always determined by whether a tested replacement is on the shelf. Facilities that maintain a minimum stock of one to two 5X00167G01 units — alongside compatible DI modules, power supply cards, and communication modules — consistently achieve lower unplanned downtime rates than those relying on spot-market procurement.

For sites managing multiple WDPF cabinets, a standardized spare parts kit built around the 5X00167G01 and its companion I/O modules provides a scalable maintenance framework. This approach supports both corrective maintenance (direct swap on failure) and preventive maintenance (scheduled replacement at defined intervals), extending the operational life of the WDPF platform by five to ten years beyond what reactive-only maintenance strategies can achieve.

Each 5X00167G01 supplied by TOPNLMS is individually tested and verified before shipment. Units are shipped with protective packaging appropriate for sensitive electronic assemblies, and full traceability documentation is available on request. Our technical team can assist with compatibility verification for specific WDPF cabinet configurations prior to purchase.
