Westinghouse 5X00121G01 Ruggedized RTD Input Module for Harsh Environments

Product Overview

Westinghouse 5X00121G01 Ruggedized RTD Input Module for Harsh Environments

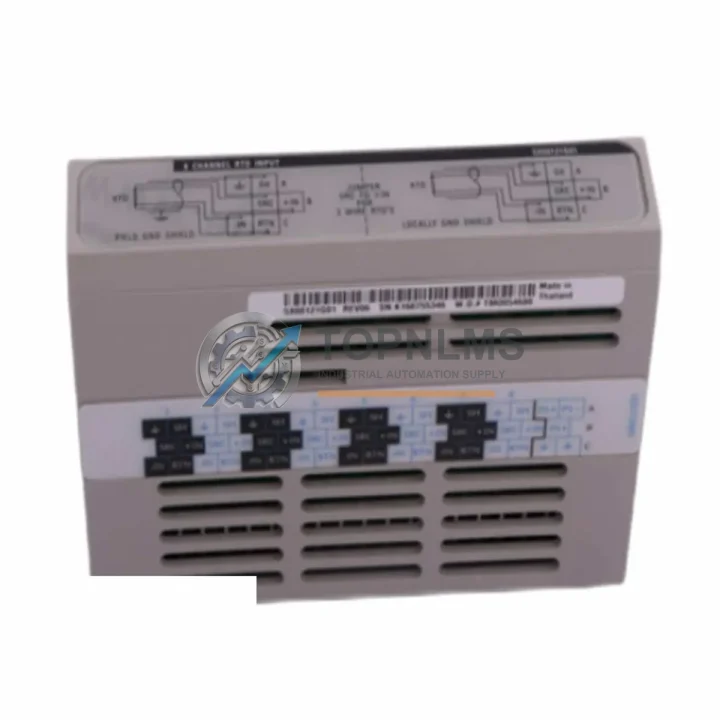

The Westinghouse 5X00121G01 is an 8-channel RTD (Resistance Temperature Detector) Input Module engineered for the Ovation Distributed Control System (DCS) platform. Designed to operate continuously in the most demanding industrial environments — including high-temperature process areas, high-humidity coastal facilities, dust-laden mining sites, and vibration-intensive heavy manufacturing floors — this module delivers the measurement accuracy and signal integrity that critical infrastructure operators depend on.

Built to Westinghouse’s stringent industrial-grade standards, the 5X00121G01 provides stable, drift-resistant RTD signal acquisition across all 8 channels simultaneously. Its robust hardware architecture ensures reliable performance even in the presence of strong electromagnetic interference (EMI) and radio-frequency interference (RFI) — conditions routinely encountered in power generation plants, petrochemical refineries, and metallurgical facilities. Whether installed in a sealed control cabinet on an offshore platform or a ventilated enclosure in a cement plant, this module maintains measurement fidelity without requiring frequent recalibration or manual intervention.

Rugged Specifications Table

Comprehensive Protection Solutions

The 5X00121G01 RTD Input Module does not operate in isolation — it is a precision sensing node within a broader Ovation DCS architecture that must remain cohesive and fault-tolerant across the entire control loop. In a typical power plant or refinery control cabinet, this module works in concert with the Westinghouse 5X00119G01 Analog Input Module to provide complementary temperature and process variable acquisition. Upstream, the Ovation OCR1100 Controller processes the RTD data and executes control logic, while the 5X00070G01 Digital Output Module drives field actuators based on that logic.

Signal integrity from the 5X00121G01 is protected by proper grounding and shielding practices within the control cabinet, often supported by dedicated Westinghouse I/O termination assemblies and marshalling panels that isolate field wiring from the DCS backplane. In high-vibration environments such as compressor stations or turbine halls, the module is typically secured within a Ovation I/O chassis with locking ejector mechanisms to prevent accidental disconnection.

For facilities running redundant control architectures, the 5X00121G01 is commonly paired with a secondary RTD input module in a hot-standby configuration, ensuring that a single module failure does not interrupt temperature monitoring on critical process loops. The Westinghouse 5X00106G01 Power Supply Module provides stable, conditioned DC power to the I/O chassis, protecting all installed modules — including the 5X00121G01 — from voltage transients and power quality issues common in heavy industrial environments.

Communication between the Ovation DCS and plant-level SCADA systems is typically handled via Ovation Network Interface Modules and OPC-DA/UA communication gateways, ensuring that RTD data collected by the 5X00121G01 is available in real time to operators at the control room HMI. In facilities that also deploy Emerson DeltaV or third-party safety instrumented systems (SIS), the Ovation DCS can interface via standard industrial protocols, with the RTD module’s data feeding into safety logic solvers for high-integrity temperature trip functions.

Application in Critical Infrastructure

The Westinghouse 5X00121G01 has established a proven track record across the most demanding sectors of critical infrastructure worldwide. In thermal power generation — including coal-fired, gas turbine, and combined-cycle plants — this module monitors bearing temperatures, steam temperatures, and cooling water temperatures across turbine-generator sets, where even a brief measurement gap can trigger unplanned shutdowns costing hundreds of thousands of dollars per hour.

In oil and gas processing facilities, including upstream wellhead automation, midstream pipeline compression stations, and downstream refinery distillation units, the 5X00121G01 provides the temperature measurement backbone for process safety management (PSM) programs. Its ability to maintain accurate RTD readings in the presence of strong EMI from variable frequency drives (VFDs), high-voltage switchgear, and radio communications equipment makes it particularly well-suited for these environments.

Mining and mineral processing operations — including copper smelters, gold processing plants, and iron ore pelletizing facilities — rely on Ovation DCS platforms for kiln temperature control, flotation cell management, and conveyor system monitoring. The 5X00121G01’s resistance to dust ingress (when properly cabinet-mounted) and its tolerance for wide ambient temperature swings make it a dependable choice for these harsh surface and underground installations.

In water and wastewater treatment plants, the module supports temperature monitoring for biological treatment processes, chemical dosing systems, and UV disinfection units. Municipal utilities operating on tight maintenance budgets particularly value the module’s long service life and the availability of tested replacement units from specialist suppliers, which eliminates the extended lead times associated with OEM procurement channels.

Metallurgical and steel production facilities use the 5X00121G01 in electric arc furnace (EAF) control systems, continuous casting lines, and rolling mill automation, where temperature measurement accuracy directly impacts product quality and energy efficiency. The module’s robust construction withstands the intense electromagnetic environment generated by high-current furnace electrodes and large motor drives.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the Westinghouse 5X00121G01?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the module fails to perform its specified RTD input acquisition functions within the warranty period, TOPNLMS will provide a replacement unit or full refund. The warranty period begins from the date of shipment confirmation. Warranty claims are processed within 5 business days upon receipt of the returned unit.

Q2: How is each unit tested before shipment?
Every 5X00121G01 unit undergoes a multi-stage pre-shipment inspection that includes visual inspection for physical damage, power-on functional verification, channel-by-channel RTD signal acquisition testing, and communication bus integrity checks. Units that do not pass all test criteria are quarantined and not offered for sale. A test report is available upon request for customers with specific quality documentation requirements.

Q3: Is the 5X00121G01 compatible with all Ovation DCS controller versions?
The 5X00121G01 is designed for the Westinghouse Ovation DCS I/O bus architecture and is compatible with the OCR400, OCR1100, and OCR1100/E controller families. Compatibility with specific firmware versions should be verified against the Ovation system release notes for your installation. TOPNLMS technical support can assist with compatibility verification prior to purchase — contact [email protected] with your controller model and firmware version.

Q4: Can TOPNLMS support long-term supply of this module for ongoing maintenance programs?
Yes. TOPNLMS maintains a dedicated inventory of Westinghouse Ovation DCS spare parts to support planned maintenance, emergency replacement, and lifecycle extension programs. For facilities managing multi-year maintenance contracts or requiring guaranteed stock reservations, we offer priority procurement agreements. Contact our team at [email protected] or +86 18359293191 to discuss volume pricing and long-term supply arrangements.
