Westinghouse 5X00109G01 Replacement for Ovation DCS

Product Overview

Westinghouse 5X00109G01 Replacement for Ovation DCS: Smooth Migration from Legacy Control Systems

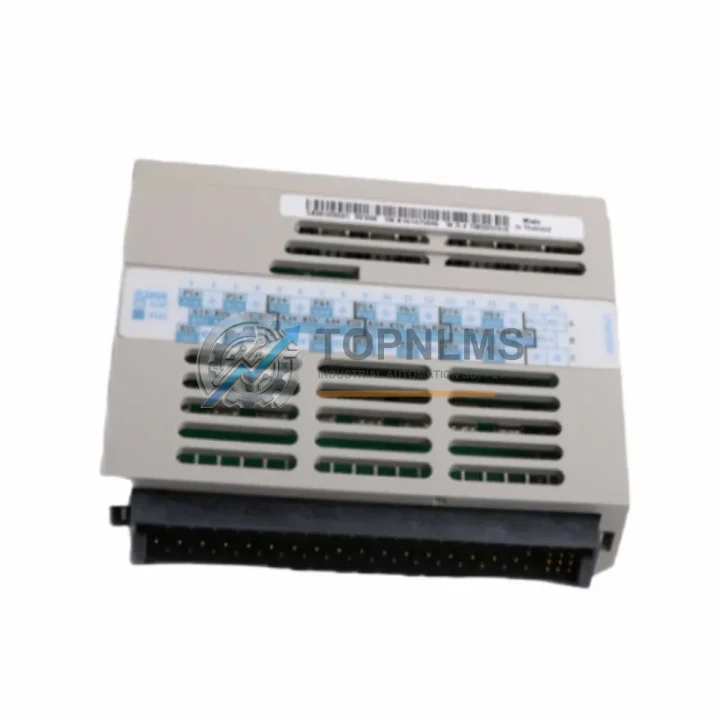

The Westinghouse 5X00109G01 is a Digital Input (DI) Module engineered for the Ovation Distributed Control System (DCS) platform — a process control architecture widely deployed across power generation, oil & gas refining, and chemical processing facilities. As original Ovation hardware reaches end-of-life and procurement of factory-new units becomes increasingly difficult, plant engineers and reliability teams are under pressure to source verified replacement modules that maintain full backward compatibility with existing I/O wiring, controller backplanes, and communication infrastructure.

TOPNLMS maintains ready stock of the 5X00109G01 module. Every unit is functionally tested before shipment and covered by a 12-month warranty. Whether you are executing a like-for-like spare replacement, a partial I/O rack refresh, or a phased migration away from discontinued Ovation hardware, the 5X00109G01 provides the lowest-risk path to restoring or extending your control system’s operational life without requiring re-engineering of field wiring or controller logic.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful Ovation DCS modernization project rarely involves replacing a single module in isolation. The 5X00109G01 Digital Input Module operates as part of a tightly integrated I/O subsystem, and the components surrounding it are equally critical to a stable, low-downtime migration.

The Ovation I/O module rack (chassis) must be verified for slot compatibility before inserting a replacement 5X00109G01. In aging installations, backplane connectors may show oxidation or mechanical wear that causes intermittent faults even with a new module installed. Inspecting or replacing the rack alongside the DI module eliminates this variable from post-commissioning troubleshooting.

The Ovation OCR400 or OCR1100 controller module must be running firmware that recognizes the 5X00109G01 module type. Outdated controller firmware is a common cause of post-replacement I/O bus communication errors. If the controller firmware has not been updated in several years, coordinating a firmware refresh during the same maintenance window as the module replacement is strongly recommended.

Field wiring connects to the 5X00109G01 through Ovation terminal block assemblies. These marshalling components are frequently overlooked during module replacement but are a leading source of signal integrity issues in systems that have been in continuous service for 10 to 20 years. Replacing aged terminal blocks and field cable connectors at the same time as the DI module significantly reduces the risk of nuisance trips after return to service.

For plants where the Ovation DCS interfaces with third-party SCADA platforms or process historians, the Ovation communication gateway module — supporting Modbus TCP, OPC DA/UA, or DNP3 protocols — must be confirmed compatible with the updated I/O channel configuration. Changes to the DI module’s channel mapping in Ovation Developer Studio can affect tag addresses exported to the historian, requiring a coordinated update to the Ovation process historian server configuration before the system is returned to automatic control.

In control cabinets where the 5X00109G01 is installed alongside Ovation Digital Output (DO) modules and Ovation Analog Input (AI) modules, it is sound engineering practice to audit the entire I/O rack during a planned outage. Modules from the same production batch often exhibit correlated aging behavior, and replacing only the failed DI module while leaving adjacent modules untested increases the probability of a repeat forced outage within 12 to 18 months.

Power distribution within the Ovation control cabinet is supplied through Ovation redundant 24 VDC power supply modules. Verifying that the power supply output voltage and ripple are within specification before installing a replacement 5X00109G01 protects the new module from damage caused by upstream power quality degradation. If the existing power supply is approaching its rated service life, co-procurement of a replacement power supply module is a cost-effective risk mitigation measure that can be executed in the same purchase order.

Finally, for sites performing configuration changes or firmware updates as part of the replacement procedure, a compatible Ovation programming cable and laptop interface kit must be available on-site. Attempting Ovation Developer Studio configuration changes over an unstable plant network during a live outage is a leading cause of extended downtime. A dedicated local programming interface eliminates this dependency and is a standard item in any well-prepared Ovation maintenance kit.

Retrofit Guidance FAQ

Q: Can I install the 5X00109G01 as a direct drop-in replacement without any wiring changes?
A: Yes, for existing Ovation DCS installations where the original 5X00109G01 was previously installed. The module uses the standard Ovation backplane connector and field wiring terminates on the existing terminal block assembly, which remains in place. No field wiring changes are required for a like-for-like replacement.

Q: Do I need to re-download the controller configuration after replacing the module?
A: For a like-for-like replacement in a healthy Ovation system, the OCR controller automatically recognizes the new module upon power-up and resumes normal I/O scanning without a configuration download. If the replacement is accompanied by a firmware update or any configuration change in Ovation Developer Studio, a controlled download to the controller will be required during the maintenance window.

Q: Is the 5X00109G01 compatible with both OCR400 and OCR1100 controllers?
A: The 5X00109G01 is designed for the Ovation I/O bus architecture used across Ovation 2.x and 3.x platform generations, which includes both OCR400 and OCR1100 controller variants. Confirm your specific controller firmware version against the Ovation compatibility matrix if you are operating a mixed-generation system.

Q: What communication protocol does the 5X00109G01 use internally?
A: The module communicates with the Ovation controller via the proprietary Ovation I/O bus embedded in the rack backplane. It does not use Ethernet, Modbus, or PROFIBUS for its primary I/O communication. External protocol conversion — for example, to Modbus TCP for SCADA integration — is handled at the controller or gateway level, not at the module level.

Q: How much physical space does the module require in the control cabinet?
A: The 5X00109G01 occupies a single slot in a standard Ovation I/O module rack. Cabinet space planning should account for the module body plus the terminal block assembly mounted on the rack face. No additional DIN rail space or external mounting hardware is required.

Q: What should I check if the module shows a fault LED after installation?
A: First verify that the backplane connector is fully seated and the module locking tab is engaged. Then confirm that the Ovation controller firmware version supports the 5X00109G01 module type. Check the Ovation Operator Station for diagnostic messages indicating configuration mismatch or I/O bus communication errors. If the fault persists, contact TOPNLMS technical support — all modules shipped by TOPNLMS include a pre-shipment functional test report that can be used to confirm the module was verified operational before dispatch.

Q: Can this module be used to migrate from a WDPF system to Ovation?
A: The 5X00109G01 is an Ovation-native module and is not a direct replacement for WDPF-era digital input cards. A WDPF-to-Ovation migration requires a structured platform migration plan, including chassis replacement, wiring re-termination, and controller reconfiguration. TOPNLMS can advise on the full bill of materials required for such a migration project.

Warranty Assurance

Every Westinghouse 5X00109G01 Digital Input Module shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. This warranty covers functional defects identified under normal operating conditions consistent with Ovation DCS platform specifications.

Pre-shipment testing: Each module undergoes a functional verification test before dispatch. A test report is available upon request and is provided with shipment documentation to support your incoming inspection and quality assurance process.

Replacement support: In the event of a warranty claim, TOPNLMS will arrange priority replacement shipment to minimize plant downtime. Standard warranty response time is within 2 business days of claim confirmation.

After-sales response: Our technical team is available to support installation questions, compatibility verification, and post-installation troubleshooting. Contact us at [email protected] or by phone at +86 18359293191.

Procurement assurance: TOPNLMS maintains physical stock of the 5X00109G01 and ships from Xiamen, China. Lead time for in-stock units is typically 3–5 business days for international express delivery. We provide commercial invoice, packing list, and certificate of origin documentation to support customs clearance for all international shipments.
