Westinghouse 5X00070G01 Replacement for WDPF Ovation DCS

Product Overview

Westinghouse 5X00070G01 Replacement for WDPF Ovation DCS: Seamless Migration & Smooth Transition

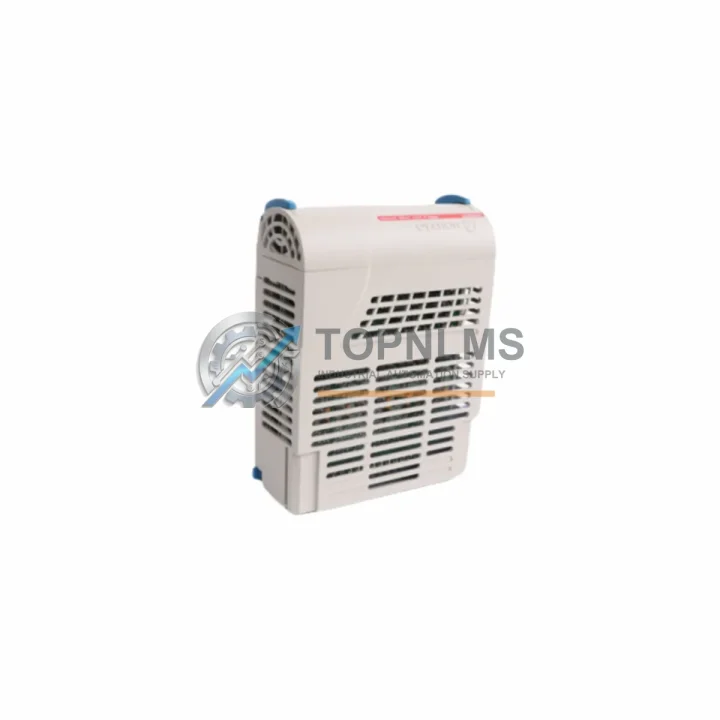

The Westinghouse 5X00070G01 is a proven Analog Input Module engineered for the WDPF and Ovation Distributed Control System (DCS) platforms. As legacy WDPF installations approach end-of-life and Ovation system operators seek reliable spare parts or upgrade paths, the 5X00070G01 remains one of the most critical field-replaceable units in power generation, refining, and process manufacturing environments. Whether you are executing a planned outage replacement, responding to an unplanned module failure, or systematically modernizing an aging control architecture, this module delivers the electrical compatibility, signal accuracy, and mechanical form factor required for a drop-in retrofit with minimal engineering intervention.

Sourced directly from verified industrial supply channels and subjected to pre-shipment functional testing, each 5X00070G01 unit shipped by TOPNLMS is accompanied by full traceability documentation and a 12-month replacement warranty. Our inventory is maintained in Xiamen, China, with express logistics options to North America, Europe, Southeast Asia, and the Middle East — ensuring your plant’s downtime window is kept as short as operationally possible.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a failing or discontinued WDPF module to the 5X00070G01 rarely involves a single component. In practice, field engineers replacing this analog input module often simultaneously address adjacent hardware that has reached the same service age. During the same maintenance window, teams commonly inspect and replace the Westinghouse 5X00074G01 Analog Output Module, which shares the same backplane slot architecture and is subject to identical wear patterns from continuous 4–20 mA loop driving. If the WDPF rack itself shows signs of backplane degradation, the Westinghouse 5X00094G01 Power Supply Module is typically evaluated alongside the AI module replacement, since a marginal 24 VDC rail is a frequent root cause of intermittent analog channel faults.

For sites transitioning from WDPF to the Ovation platform, the migration path often involves installing an Ovation OCR400 Controller or OCR1100 Controller as the new processing backbone, while retaining existing field wiring and marshalling infrastructure. In these hybrid migration scenarios, the 5X00070G01 continues to serve as the field I/O interface during the phased cutover, eliminating the need to rewire hundreds of field instruments in a single outage. Communication between the legacy WDPF I/O layer and the new Ovation network is typically bridged using an Ovation Remote I/O Interface Module, which allows the 5X00070G01 to remain in service while the control logic is progressively migrated.

On the field side, the terminal blocks and marshalling panels connected to the 5X00070G01 are often upgraded in parallel. Phoenix Contact or Weidmüller DIN-rail terminal block assemblies are commonly specified for marshalling cabinet refurbishment, providing improved labeling, test-point access, and surge protection without altering the existing cable runs. Where signal isolation is required — particularly on long cable runs from field transmitters in electrically noisy environments — signal isolator / conditioner modules such as the MTL or Pepperl+Fuchs series are inserted between the field device and the 5X00070G01 input terminals to protect the module from ground loops and transient overvoltages.

For programming and configuration tasks during commissioning, the Ovation Developer Studio software suite is used to map the 5X00070G01 channel assignments, configure engineering unit scaling, and verify alarm setpoints against the original WDPF database. Sites that have not yet migrated their historian will also typically deploy an OSIsoft PI Interface for Ovation or equivalent data historian connector to ensure continuity of process data trending across the migration boundary. Finally, where the control cabinet requires physical reorganization to accommodate new modules, WDPF-compatible DIN-rail mounting adapters and cable management accessories are sourced to maintain the original cabinet layout and minimize the risk of wiring errors during reassembly.

Retrofit Guidance FAQ

Q: Can I replace the 5X00070G01 without rewiring the field terminals?
A: Yes. The 5X00070G01 uses the same terminal block pinout as the original WDPF analog input modules. Field wiring connected to the marshalling cabinet can remain in place. Only the module itself is swapped in the rack.

Q: Is the 5X00070G01 compatible with both WDPF and Ovation DCS architectures?
A: Yes. This module was designed for the WDPF platform and is also supported in Ovation systems that retain WDPF-heritage I/O racks. Verify your specific Ovation version’s I/O compatibility matrix before installation if you are running Ovation R3.x or later.

Q: Do I need to modify the control program after replacing this module?
A: In a like-for-like replacement (same SKU, same slot), no software changes are required. The Ovation controller will recognize the module automatically upon power-up. If you are replacing a different AI module variant, channel scaling and tag assignments should be verified in Ovation Developer Studio.

Q: What communication protocol does the 5X00070G01 use?
A: The module communicates over the WDPF proprietary backplane bus. In Ovation-integrated racks, it interfaces via the Ovation Remote I/O network. No additional protocol converters or gateways are required for standard WDPF or Ovation deployments.

Q: How much physical space does the module require in the cabinet?
A: The 5X00070G01 occupies a single standard WDPF module slot. No cabinet modifications, additional mounting hardware, or ventilation changes are required. The module’s form factor is identical to the unit it replaces.

Q: What should I check during commissioning after installation?
A: After seating the module, verify the backplane power LED, confirm channel-by-channel signal readings in the Ovation operator station, and cross-check engineering unit values against the field transmitter outputs using a calibrated loop calibrator. Log the replacement in your plant’s maintenance management system and update the spare parts register.

Warranty Assurance

Every Westinghouse 5X00070G01 unit dispatched by TOPNLMS is covered by a 12-month replacement warranty from the date of shipment. Prior to dispatch, each module undergoes a pre-shipment inspection that includes visual examination for physical damage, connector integrity verification, and where test fixtures are available, functional signal-path testing. Units that do not pass inspection are quarantined and never shipped.

In the event of a warranty claim, TOPNLMS will arrange a replacement unit shipment upon receipt and verification of the returned module. Our after-sales response target is 24 hours for warranty inquiries received during business hours (UTC+8). Replacement units are shipped from our Xiamen warehouse using the same logistics channel as the original order, with express options available for critical plant situations.

For procurement teams requiring documentation, we can provide a certificate of conformance, packing list, and commercial invoice with HS code declaration for customs clearance. Bulk orders of 3 or more units qualify for priority allocation from our bonded inventory, reducing lead time risk for planned outage schedules.

TOPNLMS does not sell counterfeit, refurbished-as-new, or untested modules. All units are sourced through verified industrial distribution channels, and we maintain supplier traceability records for audit purposes. If you have specific quality documentation requirements — such as IEC 61511 functional safety records or plant-specific incoming inspection checklists — please contact our technical sales team before placing your order.
